使用手冊
-
檔案名稱 版本 檔案大小 更新日期 下載 mITX-H110B user manual
V10 6.1 MB 2024-03-01 Download
使用手冊
Mini-ITX

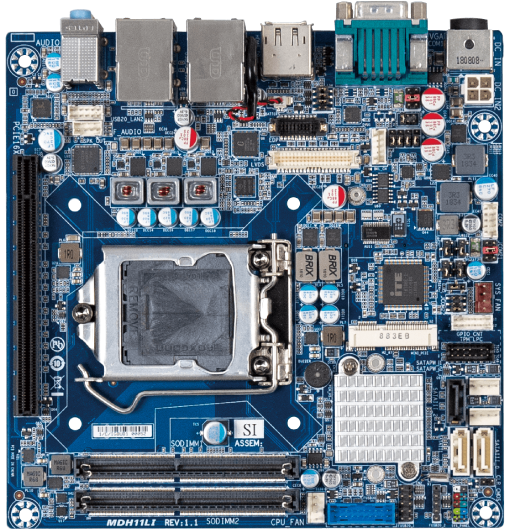

mITX-H110B
- EOL
產品特色
Mini-ITX with Intel® H110 Chipset, support 7th/6th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 2 x COM, 10 x USB, 2 x SATA 6Gb/s
• Mini-ITX form factor
• Support 7th/6th Generation Intel® Core™ Processors
• Intel® H110 Express Chipset
• Dual Channel DDR4, 2 x SO-DIMMs
• 6 x GbE LAN Ports
• 2 x SATA 6Gb/s Ports
• HDMI, VGA ports for multiple display
• 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
產品規格
Form Factor
Mini-ITX
170W x 170D(mm)
CPU
Support for 7th/6th Generation
Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package
TDP under 65W
L3 cache varies with CPU
Socket
1 x LGA 1151
Chipset
Intel® H110 Express Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2400/2133 MHz memory modules
Ethernet
6 x GbE LAN Ports (1 x Intel® I219V and 5 x Intel® I211AT)
Video
Integrated Graphics Processor - depends on CPU:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
2 x SATA 6Gb/s Ports
Expansion Slots
1 x PCIe x16 (Gen3 x16)
1 x 2280/2242 M.2 M-Key (SATA 6Gb/s)
1 x Full-size mSATA
Internal I/O
1 x 4-pin ATX main power connector
2 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
6 x USB 2.0 headers
2 x COM headers (RS-232/422/485 & RI/5V/12V)
1 x GPIO (8-bits) & SMBus header
1 x Clear CMOS jumper
1 x Buzzer
1 x AT/ATX mode select jumper
Rear l/O
3 x Audio Jacks (Line in, Line out, Mic in)
1 x HDMI
1 x VGA
6 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V/+24VDC)
TPM
1 x TPM header
OS Compatibility
Windows 10 (x64)
Windows 7 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.6kg
Including:
IO Shield x 1 (P/N: 12AIO-MH1100-00R)
Screw Flat Head M2*2.5 x 1 (P/N: 12KS2-110202-01R)
Screw Stand Off x 1 (P/N: 12KSF-F10303-20R)
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Screw I Head M2x3L x 1 (P/N: 25KSG-130032-S0R)
Order Information
9MH110AIMR-SI (Box packing)
Optional Kit
CPU Cooler : 25ST0-039520-Y0R
CPU Cooler Backplate : 12KRH-0A1155-30R
TPM 2.0 module: 9CTM000NR-00
請選擇驅動系統：
-
TPM
檔案名稱 版本 檔案大小 更新日期 下載 mITX-H110A/H110B_TPM Driver for Win7
6.1.7601.18518 2.3 MB 2024-03-11 Download -
USB 3.0
檔案名稱 版本 檔案大小 更新日期 下載 mITX-H110A/H110B_Intel® USB3.0 Driver for Win7
5.0.4.43 5.3 MB 2024-03-11 Download -
SATA RAID/AHCI
檔案名稱 版本 檔案大小 更新日期 下載 mITX-H110A/H110B_Intel® Rapid Storage Technology Note: Please install Microsoft .Net Framework 4.5 first
17.5.1.1021 21.2 MB 2024-03-11 Download mITX-H110A/H110B_KB2533623 hot fix
KB2533623 3.3 MB 2024-03-11 Download mITX-H110A/H110B_Intel® Rapid Storage Technology (1). Install .Net Framework 3.61 (2). If system using SSD, need install KB2533623 hot fix
15.9.2.1040 17.4 MB 2024-03-11 Download mITX-H110A/H110B_Net Framework 3.61
3.61 64.5 MB 2024-03-11 Download -
