Intel® 智能顯示模組 (SDM)

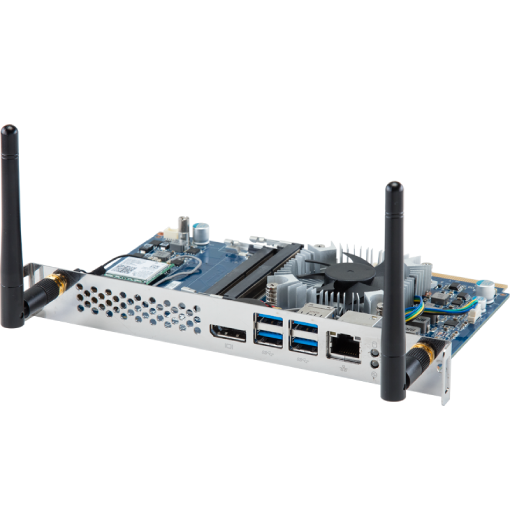

SDM-7300L
產品特色
Intel® Smart Display Module with Intel® i5-7300U Processor, Intel® vPro support
• Intel® Core™ i5-7300U Processor
• Intel® vPro support
• Dual Channel DDR4, 2 x SO-DIMMs
• HDMI and DP for dual display outputs
• 1 x GbE LAN Port
• Ultra-Fast M.2 with SATA/PCIe Gen3 x4 interface
• 4 x USB 3.2 Gen 1
As display panels become thinner and power-efficient with high performance, Intel® is presenting Smart Display Module (SDM), it's almost one-third size of OPS, but still an all-in-one integrated board with full computing capability supported with Intel® Core™ i5-7300U processor and vPro technology, 1 x HDMI and 1 x Display Port up to 4K resolution, 4 x USB 3.2 Gen 1 and high-speed PCIe connectivity.
Its form factor without enclosure brings the benefit of cost-effective on total solution design and integration flexibility to meet space-limited requirement. It can be built in or externally plugged into a display panel to work mainly for commercial and retail markets, such as Interactive Whiteboard, menuboard, video wall, KIOSK and digital signage, etc. The end user can update software content from remote location, and furthermore, quickly remove and replace SDM for maintenance or hardware upgrade purpose to save CAPEX and OPEX.
產品規格
Form Factor
SDM-Large
175W x 100D(mm)
CPU
Intel® Core™ i5-7300U Processor
14nm, 2 cores, 4 threads, up to 3.5 GHz
Intel® vPro support, TDP 15W
Socket
1 x FCBGA 1356
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 2133 MHz memory modules
Ethernet
1 x GbE LAN Port (Intel® I219LM)
Video
Integrated Graphics Processor - Intel® HD Graphics 620:
1 x HDMI 2.0 (SDM), supporting a maximum resolution of 4096x2160 @60Hz
1 x Display Port (Rear/SDM), supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Intel® Integrated Audio
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
Rear l/O
1 x Display Port
1 x RJ45 LAN Port
4 x USB 3.2 Gen 1
1 x PWR LED
1 x HDD LED
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button
TPM
1 x TPM header
OS Compatibility
Windows® 10 (x64)
Operating Properties
Operating temperature: 0°C to 55°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Including:
Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)
Order Information
9MFLP5ALMR-SI (Box packing)
Optional Kit
TPM 2.0 module: 9CTM000NR-00
TPM Cable: 25CRZ-100600-S9R
請選擇驅動系統：
-
SATA RAID/AHCI
檔案名稱 版本 檔案大小 更新日期 下載 SDM-7300L_Intel® Rapid Storage Technology Note: Please install Microsoft .Net Framework 4.5 first17.5.1.1021 21.2 MB 2024-03-11 Download -
Intel® Management Engine
檔案名稱 版本 檔案大小 更新日期 下載 SDM-7300L_Intel® Management Engine Driver11.6.0.1009 102.8 MB 2024-03-11 Download -
VGA
檔案名稱 版本 檔案大小 更新日期 下載 SDM-7300L_Graphic Driver26.20.100.6951 333.1 MB 2024-03-11 Download -
LAN
檔案名稱 版本 檔案大小 更新日期 下載 SDM-7300L_1G LAN Driver24.0 539.2 MB 2024-03-11 Download -
Chipset
檔案名稱 版本 檔案大小 更新日期 下載 SDM-7300L_Chipset Driver10.1.16.7 3.2 MB 1970-01-01 Download
