QBiX-TGLA1135G7-A1

產品特色

Industrial system with Intel® Core™ i5-1135G7 Processor / Lockable DC Connector/ 2 x HDMI / 2 x LAN Ports

• System Size : 138W x 118D x 74.2H (mm)
• Intel® Core™ i5-1135G7 Processor
• 1 x COM Port (RS-232/422/485)
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x HDMI for Dual display
• 2 x GbE LAN Ports

SHARE

規格表

使用手冊

加入比較加入洽詢

QBiX系列 (輕巧型嵌入式系統)

QBiX-TGLA1135G7-A1

首頁產品介紹嵌入式系統 QBiX系列 (輕巧型嵌入式系統) QBiX-TGLA1135G7-A1

產品規格
技術支援
相關產品

加入比較加入洽詢

產品規格

Dimension

138W x 118D x 74.2H(mm)

CPU

Intel® Core™ i5-1135G7 Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.2 GHz

Chipset

SoC

Memory

2 x DDR4 SO-DIMM socket, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules

Ethernet

1 x GbE LAN Port (Intel® I219V)
1 x GbE LAN Port (Realtek® RTL8111HS)

Graphics Support

Integrated Graphics Processor - Intel® Iris® Xᵉ Graphics:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz

(2 independent display outputs)

Audio

Realtek® Audio Codec

Expansion Slots

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)

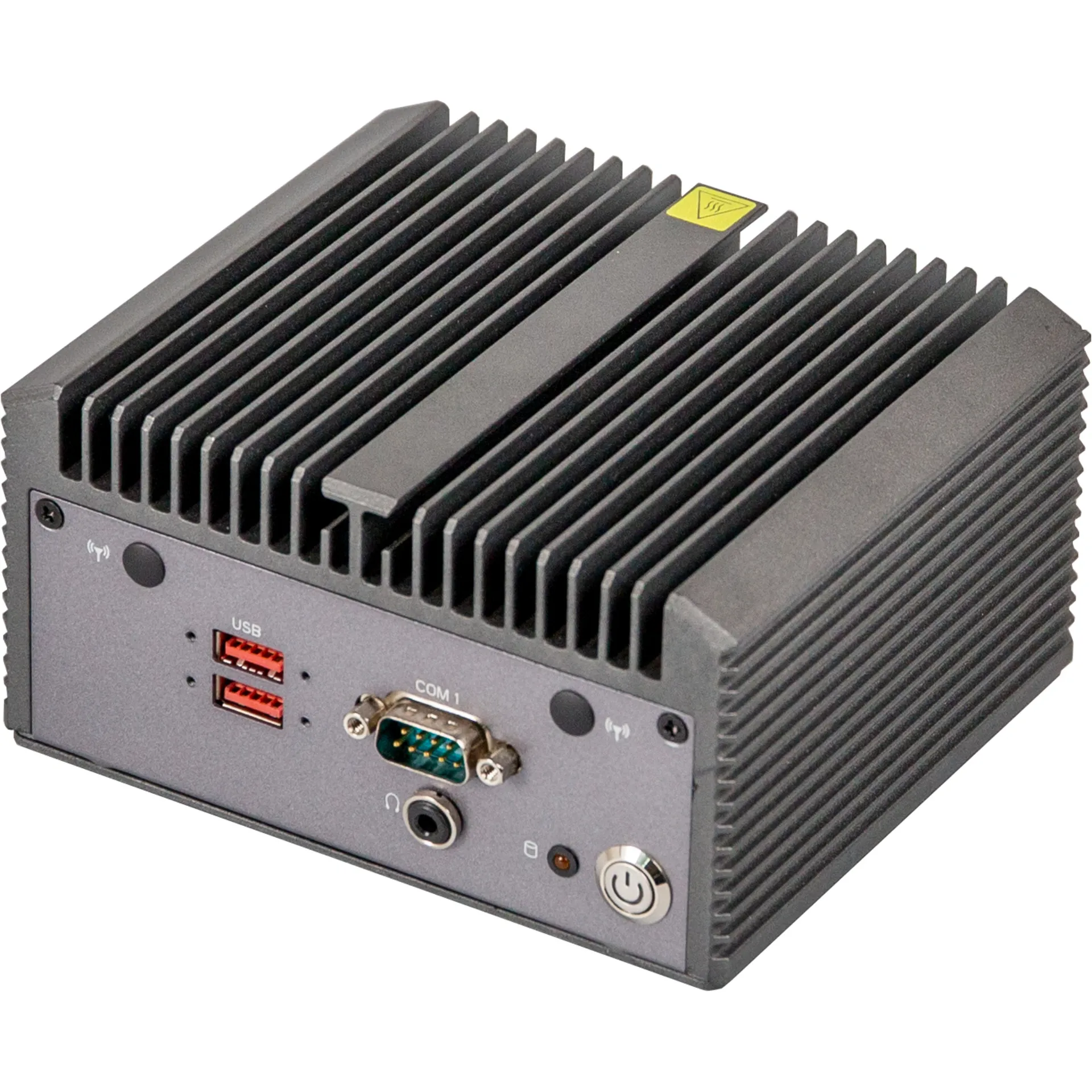

Front I/O

2 x USB 3.2 Gen 2x1
1 x Power Button with LED
2 x External Antenna Holes (Optional)
1 x HDD LED
1 x COM Port (RS-232/422/845)
1 x Headphone Jack

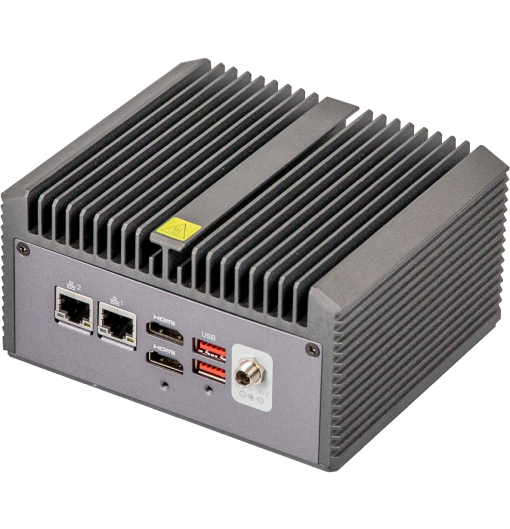

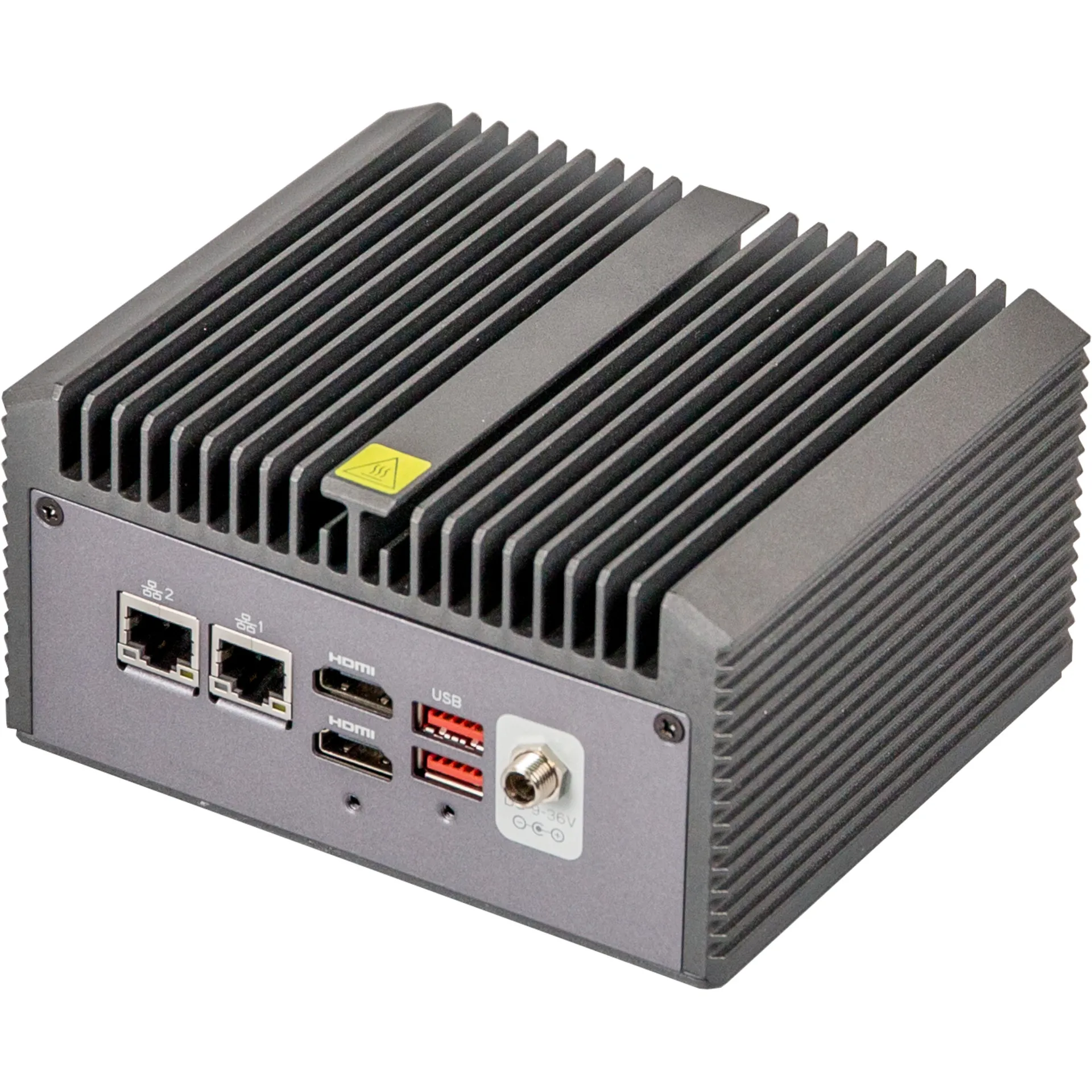

Rear l/O

2 x HDMI
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
1 x Screw type DC Jack

Power

+9V~48VDC (Adapter 19.5V/135W)

Operation Temperature

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature:-40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 416 x 409 x 296 (mm)
Packing Capacity: 6pcs

Single Box size: 258 x 191 x 130 (mm)
Single Box weight: Approx. 2.5kg

Including:
PSU ADP 19.5V 135W 100-240VAC x 1 (P/N: 25EP4-201352-C1S)
Power Cord : Optional (by region)
Wall Mount Bracket x 2 (P/N: 25HB2-CGAA20-CHR)

Order Information

6BQB1135AMR-SI (Box packing)

技術支援

所有下載

請選擇驅動系統：

驅動程式

Thunderbolt

檔案名稱	版本	檔案大小	更新日期	下載
QBiX-TGLA1135G7/1115G4E-A1_Intel® Thunderbolt Driver	1.41.1134.0	31.2 MB	2024-03-29	Download

Intel® Management Engine

檔案名稱	版本	檔案大小	更新日期	下載
QBiX-TGLA1135G7/1115G4E-A1_Intel® Management Engine Driver	2108.100.0.1053	297.3 MB	2024-03-29	Download

VGA

檔案名稱	版本	檔案大小	更新日期	下載
QBiX-TGLA1135G7/1115G4E-A1_Graphic Driver	31.0.101.4502	583.6 MB	2024-03-29	Download

Intel® Serial IO

檔案名稱	版本	檔案大小	更新日期	下載
QBiX-TGLA1135G7/1115G4E-A1_Intel® Serial IO Driver	30.100.2129.8	1.9 MB	2024-03-29	Download

Audio

檔案名稱	版本	檔案大小	更新日期	下載
QBiX-TGLA1135G7/1115G4E-A1_Realtek Audio Driver	6.0.9225.1	46.1 MB	2024-07-26	Download

LAN

檔案名稱	版本	檔案大小	更新日期	下載
QBiX-TGLA1135G7/1115G4E-A1_1G LAN Driver for RTL81118-CG Win11	1168.7.318.2022	4.7 MB	2024-03-29	Download
QBiX-TGLA1135G7/1115G4E-A1_1G LAN Driver for RTL81118-CG Win10	10.56.119.2022	4.8 MB	2024-03-29	Download
QBiX-TGLA1135G7/1115G4E-A1_1G LAN Driver for I219V	12.19.1.37	687.4 MB	2024-03-29	Download
