QBiX Pro系列 (無風扇嵌入式系統)
QBiX-Pro-KBLB7200H-A2
產品特色
Industrial system with Intel® Core™ i5-7200U Processor/ Fanless Design/ Dual Channel DDR4 up to 32GB/ 1 x HDMI 2.0/ 1 x Display Port/ 1 x Screw Type DC Jack
• System Size: 178W x 125D x 52.7H (mm)
• Intel® Core™ i5-7200U Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• HDMI, Display port for Dual display
• 2 x GbE LAN Ports
QBiX Pro Series of GIGAIPC embedded system is implemented with GIGAIPC QBi Pro (3.5" SubCompact Board). Its fan-less design reduces the risk of fan failure and maintainance efforts. The aluminium heatsink and ruggedized chassis enhanced the ability to work in harsh environment. The Compact size can easily be designed in any applications in limited space, such as factory automation, industrial controller / Surveillance systems and IoT Gateway. Furthermore, it can be a computing solution dedicated to thin client, POS, KIOSK for commercial market.
QBiX-Pro-KBLB7200H-A2 is powered by Intel® Core™ i5-7200U processor, to support DDR4 2133MHz up to 32G. It is designed with full range 9-36V DC power inputs for operating temperature of 0°C~50°C. The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.
It's available with rich features of both HDMI & DP outputs, 4 x COM Ports, 4 x USB 3.2 Gen 1 and 2 x USB 2.0 Ports to work with different peripherals of devices and M.2 2280 M-Key / 2230 E-Key for expansion.
產品規格
Dimension
178W x 125D x 52.7H(mm)
CPU
Intel® Core™ i5-7200U Processor
14nm, 2 cores, 4 threads, up to 3.1GHz
TDP 15W
Chipset
SoC
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2133 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
Graphics Support
Integrated Graphics Processor - Intel® HD Graphics 620:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module

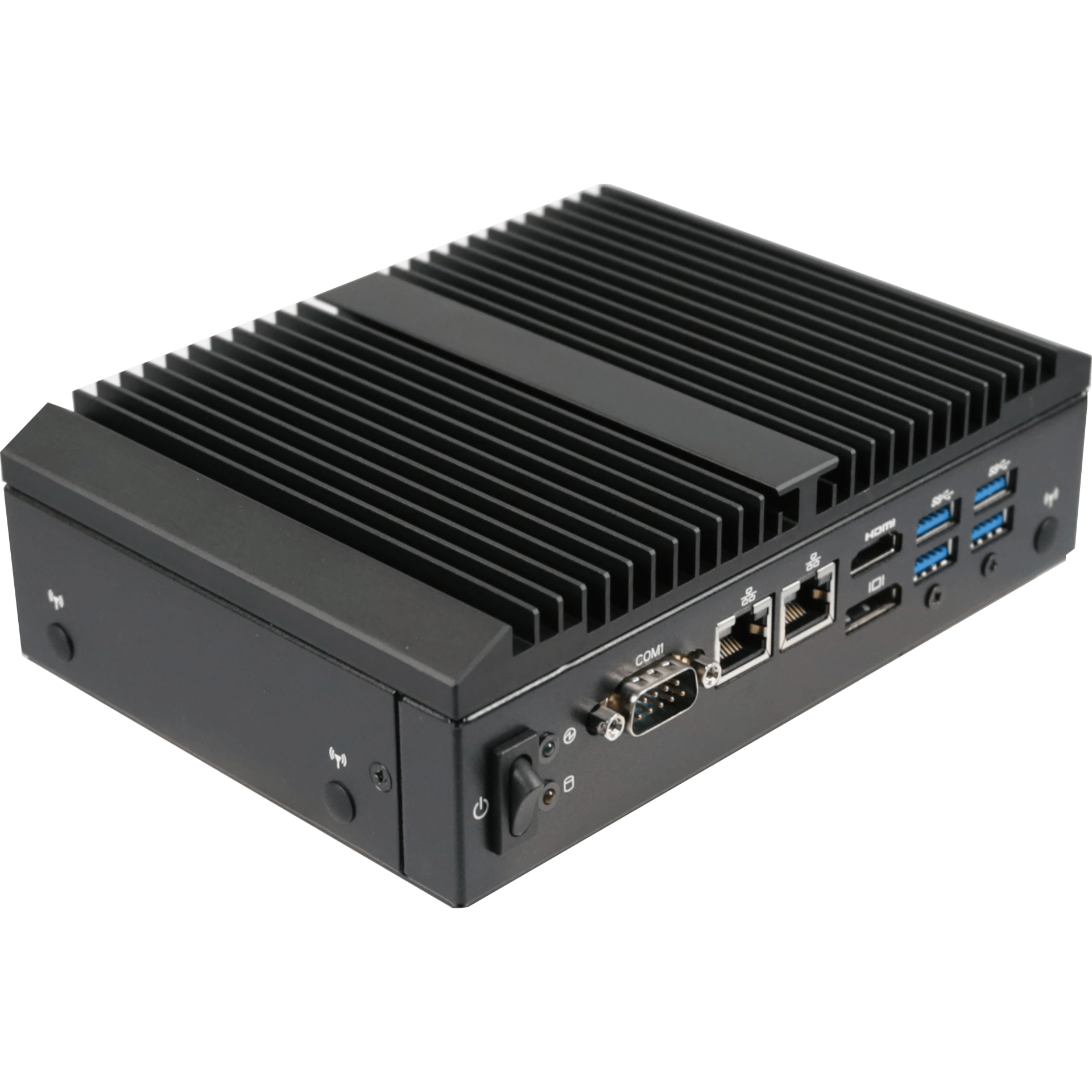

Front I/O
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x HDMI
1 x Display Port
1 x Power switch
1 x Power & HDD LED
1 x COM Port (RS-232/422/485 & RI/5V/12V)

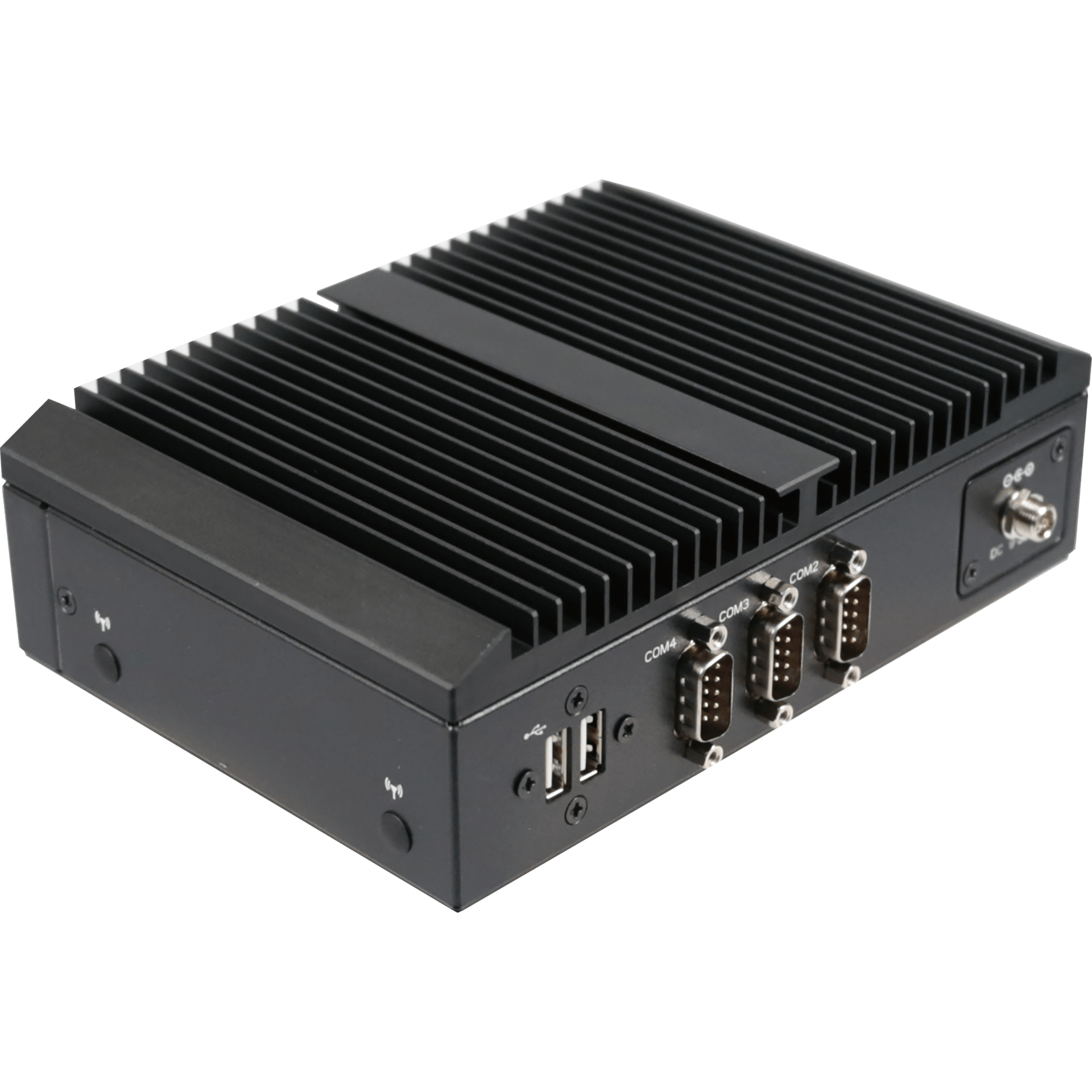

Rear l/O
2 x USB 2.0
3 x COM Ports (RS-232)
1 x Screw Type DC Jack
Side I/O
2 x External Antenna Holes (Optional)
Power
+9V~36VDC (Adapter 19V/65W)
Operation Temperature
Operating temperature: 0°C to 40°C (0~50°C 90W adapter)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs
Single Box size: 313 x 191 x 95 (mm)
Including:
Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad x 2 (P/N: 25ST3-200052-T5R)
Thermal Pad x 1 (P/N: 25ST3-200053-T5R)
Thermal Pad x 1 (P/N: 25ST3-200051-T5R)
SATA Cable x 1 (P/N: 25CF4-070020-S9R)
Power Cord : Optional (by region)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065L-F3S)
Mounting
Wall mount (Optional)
Order Information
6BQP7200AMR-SI (Box packing)
Optional Kit
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
請選擇驅動系統：
-
SATA RAID/AHCI
檔案名稱 版本 檔案大小 更新日期 下載 QBiX-Pro-KBLB7200H-A2_Intel® Rapid Storage Technology Note: Please install Microsoft .Net Framework 4.5 first
17.5.1.1021 21.2 MB 2024-03-29 Download -
Intel® Management Engine
檔案名稱 版本 檔案大小 更新日期 下載 QBiX-Pro-KBLB7200H-A2_Intel® Management Engine Driver
1815.12.0.2021 3.1 MB 2024-03-29 Download -
VGA
檔案名稱 版本 檔案大小 更新日期 下載 QBiX-Pro-KBLB7200H-A2_Graphic Driver
26.20.100.6951 333.1 MB 2024-03-29 Download -
Audio
檔案名稱 版本 檔案大小 更新日期 下載 QBiX-Pro-KBLB7200H-A2_Realtek Audio Driver
6.0.9414.1 38.9 MB 2024-03-29 Download -
LAN
-
Chipset
檔案名稱 版本 檔案大小 更新日期 下載 QBiX-Pro-KBLB7200H-A2_Chipset Driver
10.1.5.2 3.2 MB 2024-03-29 Download
驅動程式
-
檔案名稱 版本 檔案大小 更新日期 下載 QBiX-Pro-KBLB7200H-A2 user manual
V10 8.41 MB 2024-03-01 Download
