QBiX系列 (輕巧型嵌入式系統)
QBiX-KBLA7100H-A1
- EOL
產品特色
Industrial system with Intel® Core™ i3-7100U Processor/ HDMI 2.0 & mini DP output for 4K resolution/ USB 3.2 Gen 1/ COM Port/ M.2 2230/2280 slots
• System Size : 138W x 118D x 74.2H (mm)
• Intel® Core™ i3-7100U Processor
• 1 x COM Port (RS-232)
• Dual Channel DDR4, 2 x SO-DIMMs
• HDMI, Mini Display port for Dual display
• 1 x GbE LAN Port

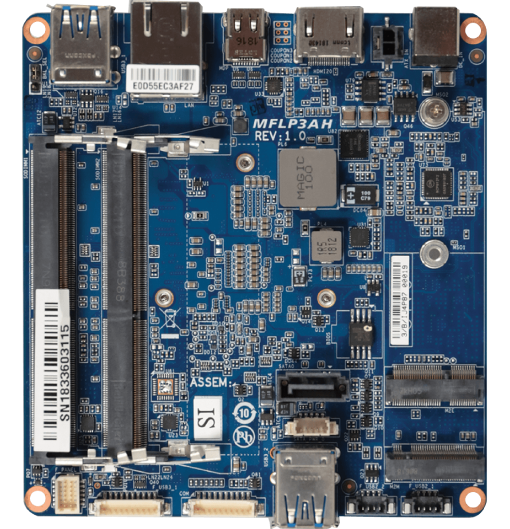

QBiX Series of GIGAIPC embedded system is implemented with GIGAIPC QBi (10x10 Motherboards). It's designed as palm-sized, fan-less and ruggedized computing solution dedicated to thin client, POS, KIOSK, smart factory automation, industrial controller system and space-limited applications, with VESA mout 75x75 and 100x100 for options.
QBiX-KBLA7100H-A1 is powered by Intel® Core™ i3-7100U Processor to provide high performance and stability. It is designed with full range +12-24V DC power inputs for operating temperature of 0°C~50°C. The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.
It's available with rich features of both HDMI 2.0 & mini DP output for 4K resolution, 4 x USB 3.2 Gen 1, 1 x RS-232 COM Port to work with different peripherals of devices and M.2 2230/2280 slots for expansion.
產品規格
Dimension
138W x 118D x 74.2H (mm)
CPU
Intel® Core™ i3-7100U Processor
14nm, 2 cores, 4 threads, 2.4 GHz
TDP 15W
Chipset
SoC
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 2133 MHz memory modules
Ethernet
1 x GbE LAN Port (Intel® I219V)
Graphics Support
Integrated Graphics Processor - Intel® HD Graphics 620:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x Mini DP port, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Intel® Integrated Audio
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
Front I/O
2 x USB 3.2 Gen 1
1 x Power switch
2 x External Antenna Holes (Optional)
1 x HDD LED
1 x Power LED
Rear l/O
1 x RJ45 LAN Port
2 x USB 3.2 Gen 1
1 x HDMI
1 x Mini Display Port
1 x COM Port (RS-232)
1 x Screw Type DC Jack
Power
+12V~24VDC (Adapter 19V/65W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 416 x 409 x 296 (mm)
Packing Capacity: 6pcs
Single Box size: 258 x 191 x 130 (mm)
Including:
Power Cord 3Cx18AWG SVT US x 1 (P/N: 25CP0-007001-Q0R)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065L-F3S)
VESA_RS_BKT_KP x 1 (P/N: 25HB1-TPL021-S8R)
VESA-SCREW-ASM x 1 (P/N: 25KSD-000001-S4R)
Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad HDD x 2 (P/N: 25ST3-200052-T5R)
Thermal Pad DRAM2 x 1 (P/N: 25ST3-200051-T5R)
SATA + Power Cable x 1 (P/N: 25CRA-010000-S9R)
Order Information
6BCKAAMR-SI (Box packing)
Optional Kit
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
