QBiX Expert系列 (無風扇監控嵌入式系統)

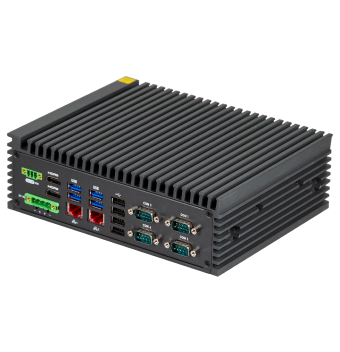

QBiX-Expert-RPLA1320PEH-A1
- Preliminary
產品特色
Industrial system with Intel® Core™ i3-1320PE Processor/ Fanless Design / Dual Channel DDR5 up to 64 GB/ 2 x HDMI
• System Size : 210.36W x 165D x 65H (mm)
• Intel® Core™ i3-1320PE Processor
• Dual Channel DDR5, 2 x SO-DIMMs
• 2 x HDMI for Dual display
• 10 x LAN Ports
產品規格
Dimension
210.36W x 165D x 65H(mm)
CPU
Intel® Core™ i3-1320PE Processor
Intel 7, 8 cores, 12 threads, up to 4.50 GHz
Chipset
SoC
Memory
2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR5 5200 MHz memory modules
Ethernet
2 x 2.5GbE LAN Ports
4 x GbE LAN Ports
4 x PoE GbE LAN Ports
Graphics Support
Integrated Graphics Processor - Intel® UHD Graphics for 13th Gen Intel® Processors:
2 x HDMI 2.1 ports, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
Support 1 x Swappable 2.5" HDD/SSD (SATA 6Gb/s)
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen 4x4)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x 3052 M.2 B-Key with SIM slot
Front I/O
4 x RJ45 LAN Ports with PoE
4 x RJ45 LAN Ports
1 x GPIO (8 bits)
1 x HDD LED
1 x Power button with LED
1 x Combo audio jack (Headphone & Headset)
Rear l/O
2 x 2.5GbE LAN Ports
4 x COM Ports (RS-232/422/485)
4 x USB 3.2 Gen1
4 x USB 2.0
2 x HDMI
1 x Ignition support (3 pin)- HW Jumper
1 x 4-pin Terminal block (DC IN)
Side I/O
4 x External Antenna Holes (wifi/5G)-optional
TPM
TPM on board
Power
+19~36VDC
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Order Information
6BQE1320AMR-SI (Box Packing)
