使用手冊
-
檔案名稱 版本 檔案大小 更新日期 下載 QBiP-x6413EA user manual
V10 8.2 MB 2024-03-01 Download
使用手冊
QBi Pro (3.5"嵌入式單板電腦)

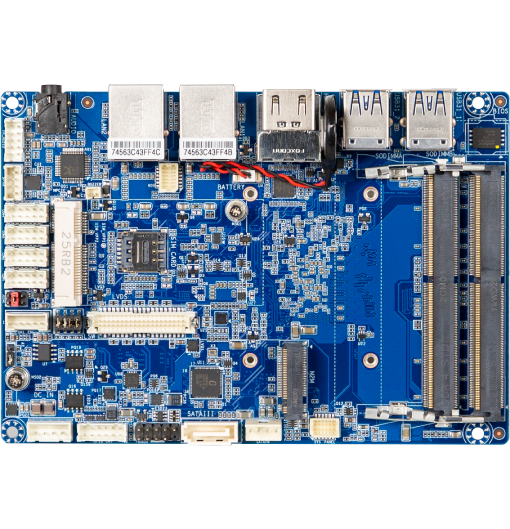

QBiP-x6413EA
產品特色
3.5” SubCompact Embedded Motherboard with Intel® Atom® x6413E Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 4 x USB 3.2 Gen 1, 2 x USB 2.0
• 3.5" SBC
• Intel® Atom® x6413E
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• 1 x SATA 6Gb/s Port
• M.2 with PCIe x2, SATA 6Gb/s
• 2 x HDMI, LVDS ports for multiple display
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 1 x COM Port (RS-232/422/485)
• 2 x COM Ports (RS-232)
產品規格
Form Factor
3.5" SBC
146W x 101.7D(mm)
CPU
Intel® Atom® x6413E Processor
10nm, 4 cores, 4 threads, up to 3.0 GHz
TDP 9W
Socket
1 x FCBGA 1493
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I210AT)
Video
Integrated Graphics Processor -
Intel® UHD Graphics for 10th Gen Intel® Processors:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
(3 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x SATA 6Gb/s Port
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x Full-size mini PCIe with SIM slot
Internal I/O
1 x 4-pin box power connector (DC in +9V~36VDC)
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
2 x USB 2.0 headers
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x COM header (RS-232/422/485)
2 x COM headers (RS-232)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8 bits) & SMBus header
1 x Buzzer header
＊Conditional DC-input 9V support with :
(1) SATA_PWR support 5V only
(2) LVDS backlight cannot support
(3) Total power consumption under 50W
Rear l/O
1 x Headphone Jack
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.5kg
Including:
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Order Information
9MEHLEASMR-SI (Box Packing)
Optional Kit
Fanless Heatsink P/N: 25ST1-12311E-A7R
請選擇驅動系統：
-
Intel® Management Engine
檔案名稱 版本 檔案大小 更新日期 下載 QBiP-x6413EA/EAT_Intel® Management Engine Driver
2120.100.0.1085 57.2 MB 2024-03-18 Download -
VGA
檔案名稱 版本 檔案大小 更新日期 下載 QBiP-x6413EA/EAT_Graphic Driver
31.0.101.2121 499.1 MB 2024-03-18 Download -
Intel® Serial IO
檔案名稱 版本 檔案大小 更新日期 下載 QBiP-x6413EA/EAT_Intel® Serial IO Driver
5.123.1.1023 0.373 MB 2024-03-18 Download -
Audio
檔案名稱 版本 檔案大小 更新日期 下載 QBiP-x6413EA/EAT_Realtek Audio Driver
6.0.9403.1 49.2 MB 2024-03-18 Download -
LAN
檔案名稱 版本 檔案大小 更新日期 下載 QBiP-x6413EA/EAT_1G LAN Driver
12.18.13.0 788.4 MB 2024-03-18 Download -
Chipset
檔案名稱 版本 檔案大小 更新日期 下載 QBiP-x6413EA/EAT_Chipset Driver
10.1.25.5 3.8 MB 2024-03-18 Download
驅動程式
-
檔案名稱 版本 檔案大小 更新日期 下載 QBiP-x6413EA user manual
V10 8.2 MB 2024-03-01 Download
