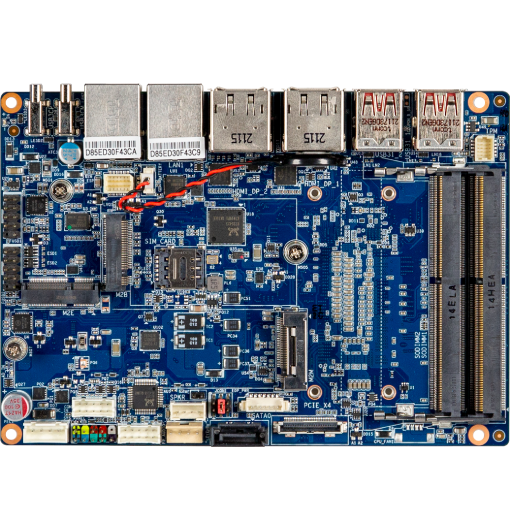

QBi Pro (3.5"嵌入式單板電腦)
QBiP-1165G7A
產品特色
3.5” SubCompact Board with 11th Generation Intel® Core™ i7-1165G7 Processor, Dual Channel DDR4 memory, 1 x COM, 1 x SATA 6Gb/s, 4 x USB 3.2 Type A Gen 2x1, 2 x USB 3.2 Type C Gen 2x1, 4 x USB 2.0
• 3.5" SBC
• Intel® Core™ i7-1165G7 Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• 1 x SATA 6Gb/s Port
• Ultra-Fast M.2 with PCIe Gen3 x2 interface
• 2 x HDMI, 2 x DP, eDP ports for multiple display
• 1 x COM Port (RS-232 & RI/5V/12V)
• 4 x USB 3.2 Type A Gen 2x1
• 2 x USB 3.2 Type C Gen 2x1
產品規格
Form Factor
3.5" SBC
146W x 101.7D(mm)
CPU
Intel® Core™ i7-1165G7 Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.7 GHz
TDP 28W
12 MB Smart Cache
Socket
1 x FCBGA1449
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
Video
Integrated Graphics Processor - Intel® Iris® Xᵉ Graphics:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
2 x DP 1.4 ports, supporting a maximum resolution of 7680x4320 @30Hz
1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680x4320 @30Hz
1 x eDP port, supporting a maximum resolution of 4096x2304 @60Hz
(4 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x SATA 6Gb/s Port (SATA RAID 0/1)
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 3052 M.2 B-Key with SIM Slot (Support 5G)
1 x PCIe x4 (Board to Wire connector)
Internal I/O
1 x 4-pin box power connector (DC in +12V~24VDC)
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
1 x COM header (RS-232 & RI/5V/12V)
1 x eDP power header
Rear l/O
1 x USB type C (USB 3.2 Gen 2x1 + DP output-share with DP) & PD Out -100W
1 x USB type C (USB 3.2 Gen 2x1, PD input-100W)
4 x USB 3.2 Gen 2x1
2 x HDMI
2 x DP
2 x RJ45 LAN Ports
TPM
1 x TPM header
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.4kg
Including:
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Order Information
9MTGU7ASMR-SI (Box Packing)
Optional Kit
Fanless Heatsink P/N: 25ST1-1Z3101-AFR
Fansink P/N: 25ST4-113101-A7R
Heat spreader P/N: 25ST5-111500-Y0R
TPM 2.0 module P/N: 9CTM010NR-00
TPM Cable P/N: 25CRZ-100600-S9R
