QBi (10x10主機板)

QBi-8265A

產品特色

Embedded Compact Board with Intel® Core™ i5-8265U Processor, Dual Channel DDR4 memory, 1 x COM , 1 x SATA 6Gb/s, 6 x USB

• Embedded IPC Motherboard
• Intel® Core™ i5-8265U Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• 1 x SATA 6Gb/s Port
• Ultra-Fast M.2 with PCIe Gen3 x4 interface
• 2 x HDMI Ports, eDP port for multiple display
• 1 x COM Port (RS-232/422/485)

SHARE

規格表

使用手冊

加入比較加入洽詢

QBi (10x10主機板)

QBi-8265A

首頁產品介紹工業級主機板 QBi (10x10主機板) QBi-8265A

產品規格
技術支援
相關產品

加入比較加入洽詢

產品規格

Form Factor

Embedded Compact Board
105W x 110D(mm)

CPU

Intel® Core™ i5-8265U Processor
14nm, 4 cores, 8 threads, up to 3.9 GHz
TDP 15W

Socket

1 x FCBGA 1528

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 2400 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I219V and Realtek® RTL8111HS)

Video

Integrated Graphics Processor - Intel® UHD Graphics 620:
2 x HDMI 1.4 port, supporting a maximum resolution of 4096x2304 @24Hz
1 x eDP port, supporting a maximum resolution of 4096x2304 @60Hz

(3 independent display outputs)

Audio

Realtek® Audio Codec

Storage

1 x SATA 6Gb/s Port (RAID 0/1)

Expansion Slots

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)

Internal I/O

1 x 2-pin power connector
1 x SATA Power header/optional for eDP Power
1 x CPU fan header
1 x Front panel header
1 x Front panel audio header
1 x USB 2.0 header
1 x Vertical USB 3.2 Gen 1

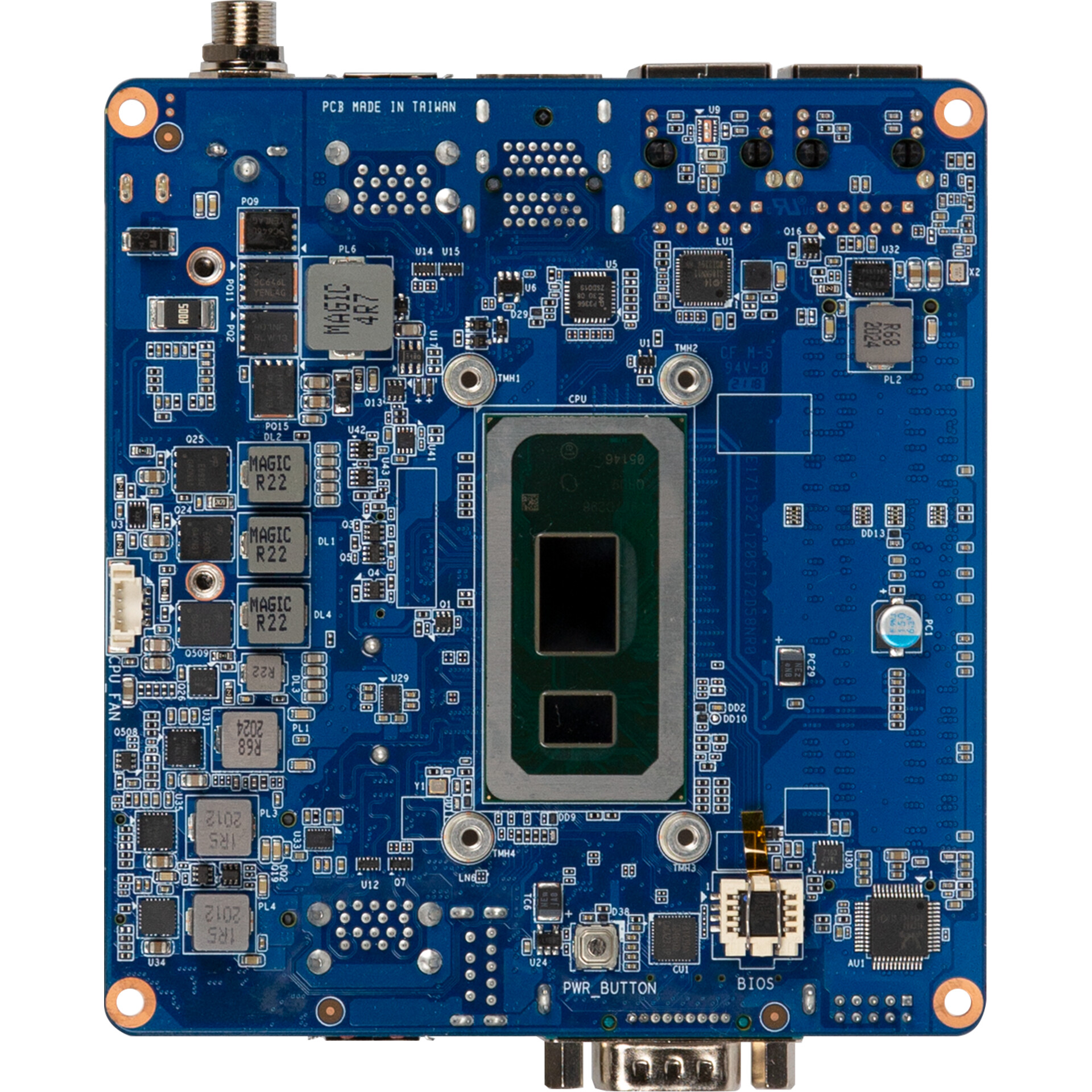

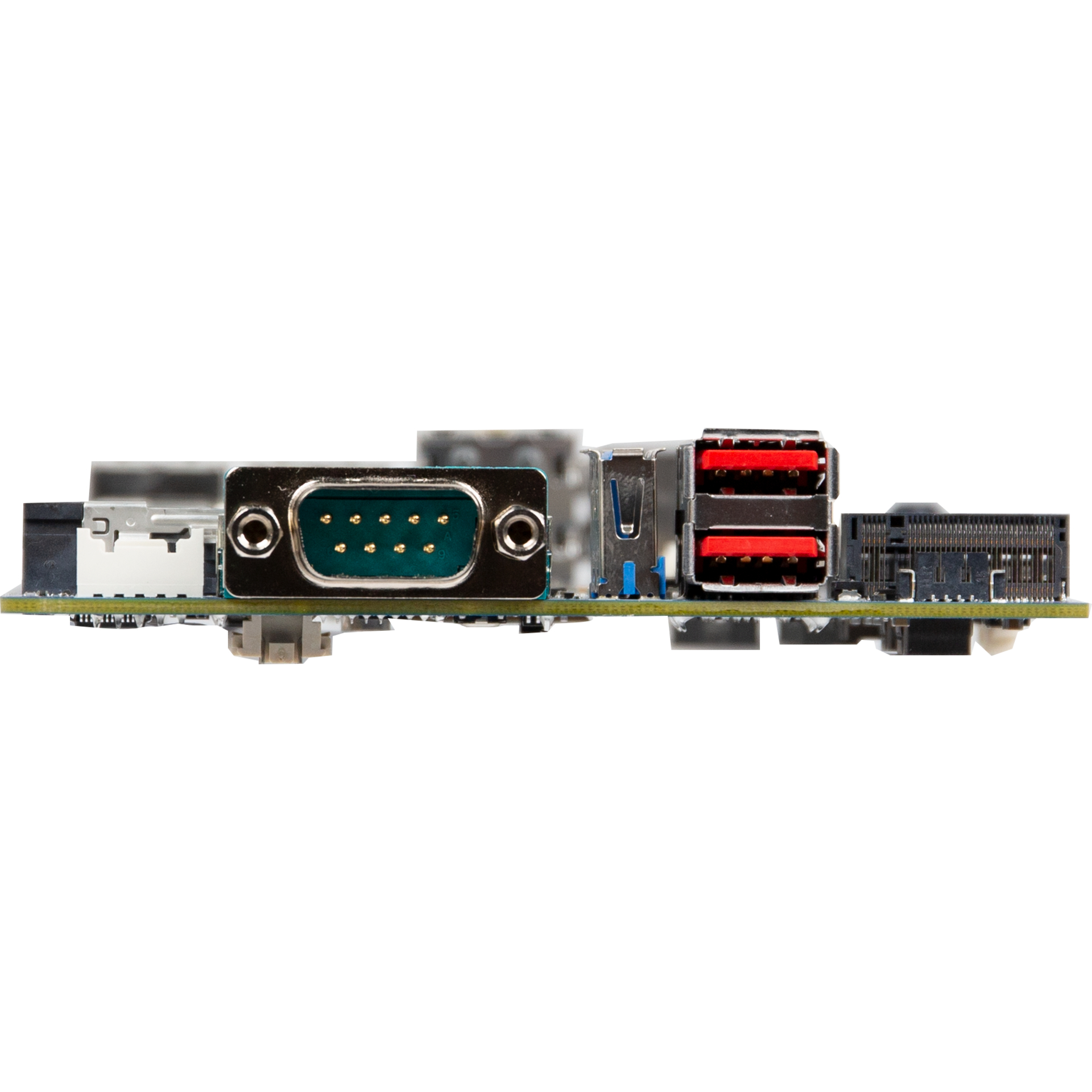

Front I/O

2 x USB 3.2 Gen 2x1
1 x Power button
1 x COM Port (RS-232/422/485)

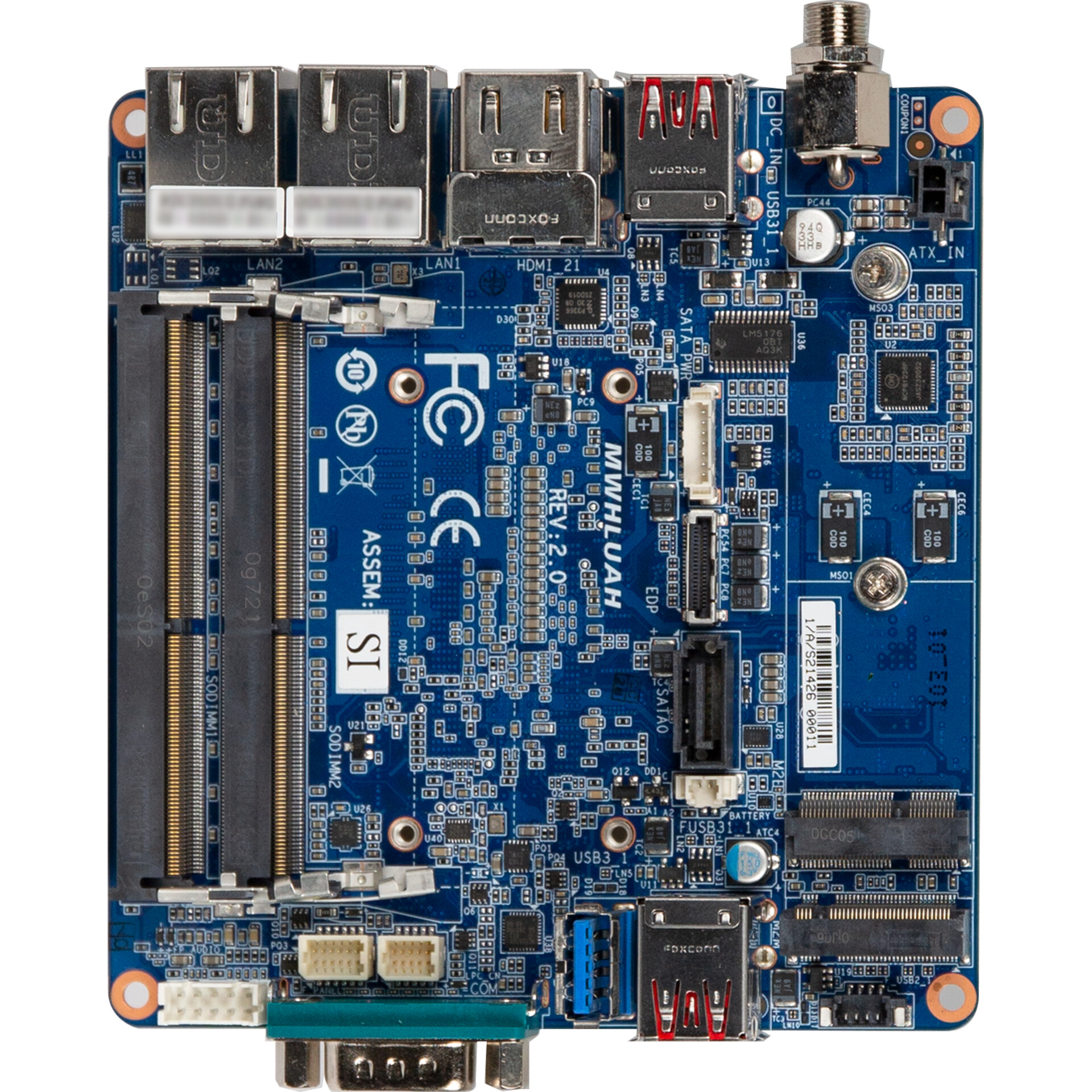

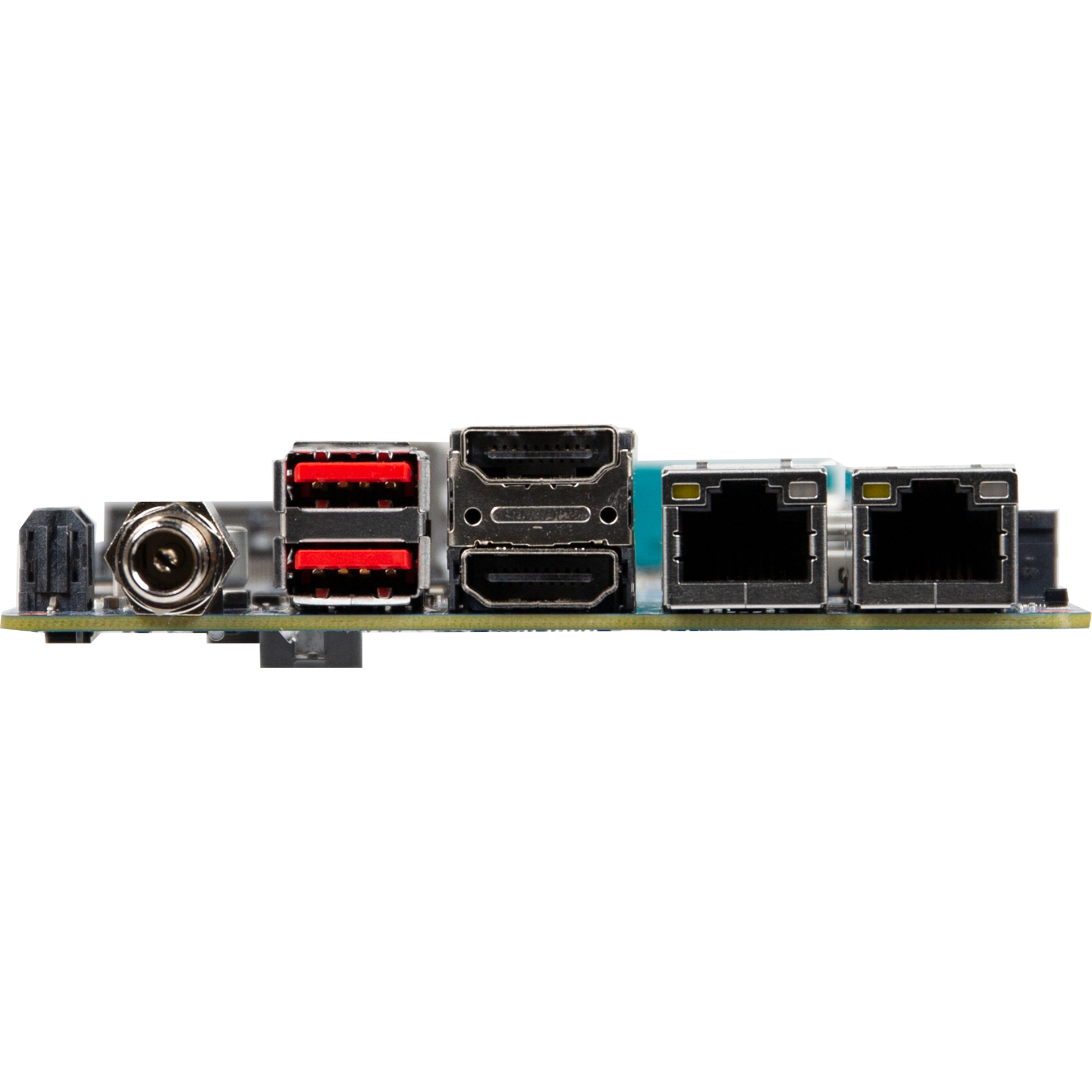

Rear l/O

2 x HDMI
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
1 x Screw type DC Jack (+9V~36VDC)

TPM

1 x TPM header (LPC)

OS Compatibility

Windows 10 (x64)

Operating Properties

Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)

Packing Content

Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs

Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.4kg

Including:
SATA power Cable 150mm x 1 (P/N: 25CRI-150621-K1R)

Order Information

9MWHLUBHMR-SI (Box Packing)

Optional Kit

Fanless Heatsink P/N: 25ST1-123118-AFR
Fansink P/N: 12SF2-01A073-00R
Heat spreader P/N: 25ST5-8265A1-A8R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R

技術支援

所有下載

請選擇驅動系統：

驅動程式

SATA RAID/AHCI

檔案名稱	版本	檔案大小	更新日期	下載
QBi-8565A/8265A/8145A_Intel® RST (Support RAID/Intel Optane)	17.5.2.1024	97.1 MB	2024-03-21	Download

Intel® Management Engine

檔案名稱	版本	檔案大小	更新日期	下載
QBi-8565A/8265A/8145A_Intel® Management Engine Driver	1914.12.0.1256	119.1 MB	2024-03-17	Download

VGA

檔案名稱	版本	檔案大小	更新日期	下載
QBi-8565A/8265A/8145A_Graphic Driver	26.20.100.7583	357.6 MB	2024-03-17	Download

Intel® Serial IO

檔案名稱	版本	檔案大小	更新日期	下載
QBi-8565A/8265A/8145A_Intel® Serial IO Driver	30.100.1947.3	2.2 MB	2024-03-17	Download

Audio

檔案名稱	版本	檔案大小	更新日期	下載
QBi-8565A/8265A/8145A_Realtek Audio Driver (ALC269)	6.0.8757.1	264.1 MB	2024-03-17	Download
QBi-8565A/8265A/8145A_Realtek Audio Driver (ALC897)	6.0.9202.1	26.5 MB	2024-03-17	Download

LAN

檔案名稱	版本	檔案大小	更新日期	下載
QBi-8565A/8265A/8145A_Intel LAN Driver	12.19.2.45	569.4 MB	2024-03-17	Download
QBi-8565A/8265A/8145A_Realtek LAN Driver	10.50.511.2021	4.7 MB	2024-03-17	Download
