Pico-ITX

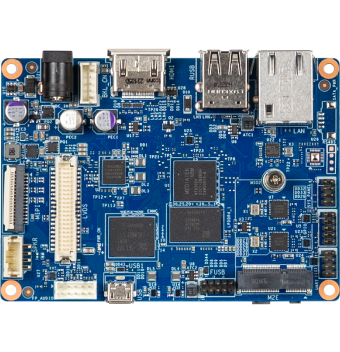

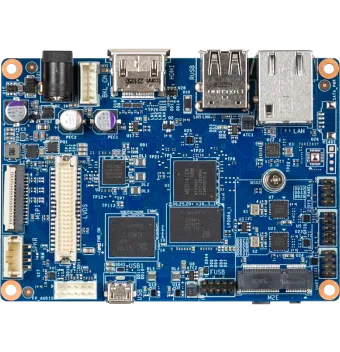

PICO-G350A
產品特色
PICO-ITX with Arm® Quad-Core Cortex®-A53, Onboard LPDDR4X, eMMC 8GB, 4 x USB 2.0, 1 x USB OTG, Support, Support Yocto OS
- PICO-ITX form factor
- MT8365 Arm® Quad-Core Cortex®-A53
- Onboard LPDDR4X 4GB
- eMMC 8GB
- 1 x HDMI port
- 1 x 2230 M.2 E-key for WiFi module
- 4 x USB 2.0 Ports, 1 x USB OTG
- Support Yocto OS
產品規格
Form Factor
PICO ITX
100W x 72D (mm)
CPU
MT8365 Arm® Quad-Core Cortex®-A53
up to 2.0GHz
Memory
LPDDR4X 4GB (on board)
Ethernet
Integrated 100M Ethernet
Video
Integrated Graphics Processor – Mali-G52:
1 x HDMI port, supporting a maximum resolution of 1920x1080 @30Hz
1 x LVDS port, supporting a maximum resolution of 1366x768 @24bit or 18bit (Optional)
1 x MIPI-DSI (Optional)
Audio
Integrated - Audio codec and amplifier
Storage
eMMC 8GB (on board)
Expansion Slots
1 x 2230 M.2 E-Key, support AW-CB451NF-D (IEEE 802.11a/b/g/n/ac Wireless LAN 2T2R and Bluetooth 5.1 Combo Module)
Internal I/O
1 x Front panel header
1 x Front audio header
1 x Speaker header (2W/4ohm)
2 x UART
2 x USB 2.0 headers (host)
1 x USB 2.0 header (OTG)
1 x GPIO (8 bits) header
1 x MIPI-DSI (optional)
1 x Micro SD Slot
Front I/O
1 x OTG USB (internal micro-USB Connector)
Rear l/O
1 x DC In power jack - System adapter 12~24V
2 x USB 2.0 Ports (Host)
1 x RJ45 LAN Port
1 x HDMI
OS Compatibility
Support Yocto OS
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 384 x 251 x 211 (mm)
Packing Capacity: 20pcs
Single Box size: 168 x112 x34 (mm)
Single Box weight: Approx. 0.3kg
Order Information
9MI350AJMR-SI (Box packing)
