Micro-ATX

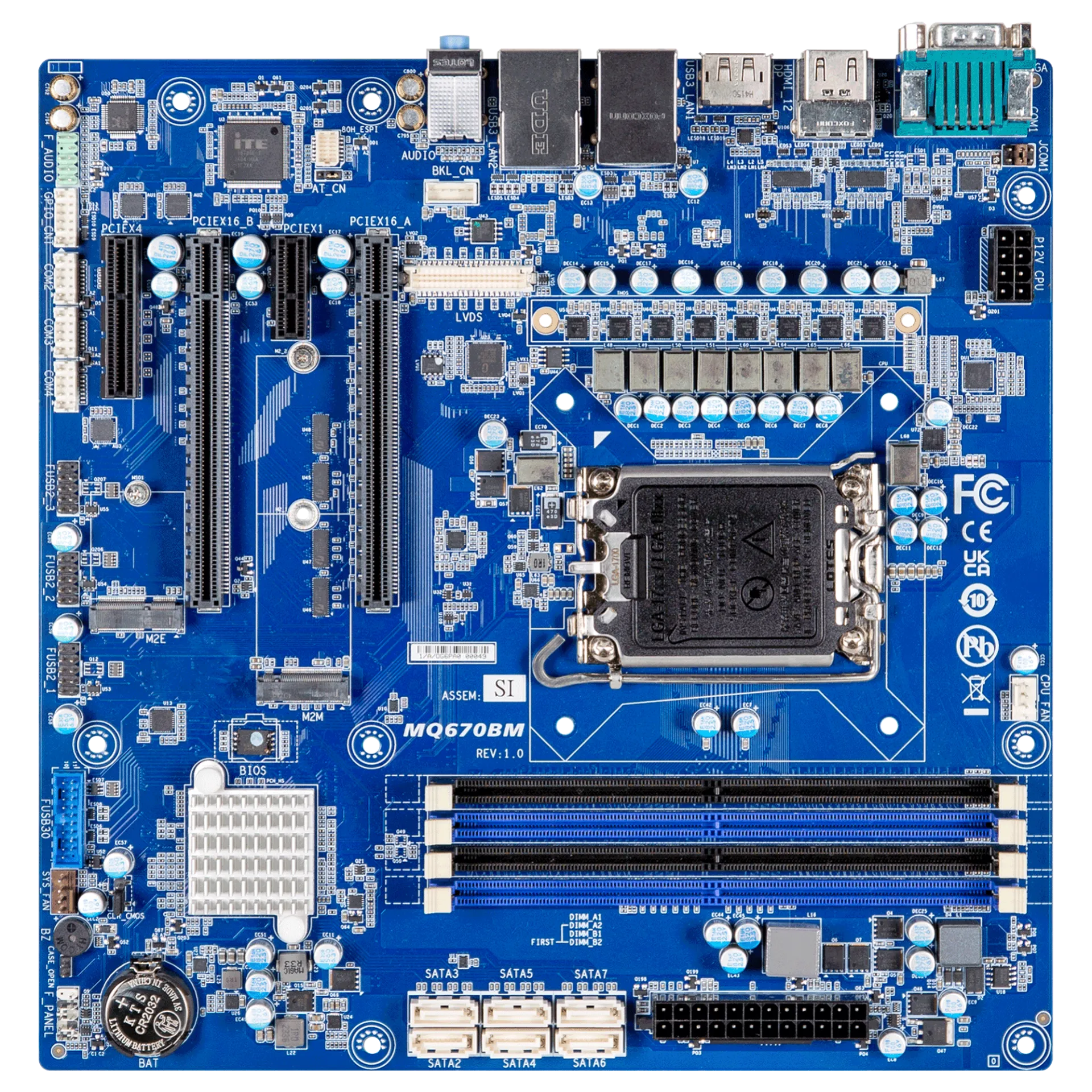

uATX-Q670B

Preliminary

概要・特長

Micro-ATX with Intel® Q670 Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR5 memory, PCIe, 4 x COM, 12 x USB, 6 x SATA 6Gb/s

• Micro ATX form factor
• Support 14th/13th/12th Generation Intel® Core™ Processors
• Intel® Q670 Chipset
• Dual Channel DDR5, 4 x DIMMs
• 1 x GbE LAN Port
• 1 x 2.5GbE LAN Port
• 6 x SATA 6Gb/s Ports
• Up to 4 x PCIe expansion slots
• 12 x USB Ports
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 3 x COM Ports (RS-232)

SHARE

仕様比較に追加お問合わせ一覧追加

Micro-ATX

uATX-Q670B

ホーム製品一覽産業用マザーボート Micro-ATX uATX-Q670B

製品仕様

仕様比較に追加お問合わせ一覧追加

製品仕様

Form Factor

Micro ATX
244W x 244D(mm)

CPU

Support for 14th/13th/12th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® & Celeron® processors in the LGA1700 package
TDP under 125W

Socket

1 x LGA 1700

Chipset

Intel® Q670 Chipset

Memory

4 x DDR5 DIMM sockets, Max. Capacity 128 GB
Support Dual channel DDR5 4800 MHz memory modules

Ethernet

1 x GbE LAN Port (Intel® I219LM)
1 x 2.5GbE LAN Port (Intel® I226V)

Video

Integrated Graphics Processor - depends on CPU:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz

(4 independent display outputs)

Audio

Realtek® ALC897

Storage

6 x SATA 6Gb/s Ports

RAID

RAID 0/1/5/10

Expansion Slots

1 x PCIe x16 (Gen 4x16)(PCIEX16_A)
* The PCIEX16_A slot shares bandwidth with the PCIEX16_B slot.
* The PCIEX16_A slot operates at up to x8 mode when a device is installed in the PCIEX16_B slot.
1 x PCIe x16 (Gen 4x8)(PCIEX16_B)
1 x PCIe x1 (Gen 3x1)
1 x PCIe x4 (Gen 3x4)
1 x 2280/2242 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key

Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x Case open header
6 x USB 2.0 headers
2 x USB 3.2 Gen 1 headers
3 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer
1 x AT/ATX mode select jumper

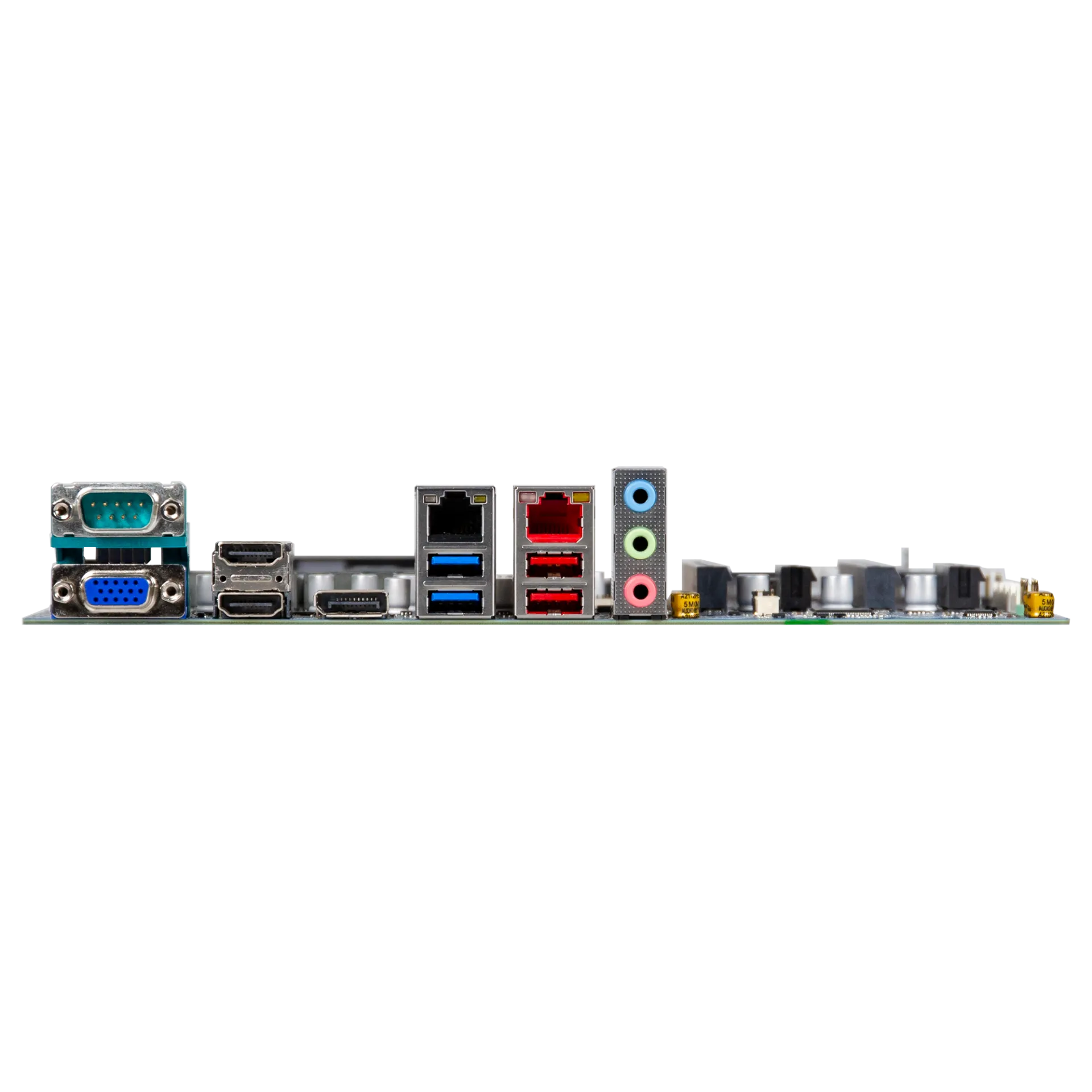

Rear l/O

3 x Audio Jacks (Line in, Line out, Mic in)
2 x HDMI
1 x Display Port
1 x VGA
1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 3.2 Gen 1

TPM

Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0

OS Compatibility

Windows 10/11 (x64)

Operating Properties

Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)

Packing Content

Carton size: 360 x 354 x 390 (mm)
Packing Capacity: 5pcs

Single Box size: 350 x 330 x 65 (mm)
Single Box weight: Approx. 0.65kg

Including:
IO Shield x 1 (P/N: 12AIO-MQ67EA-00R)
SATA Cable x 2 (P/N: 12CF1-2SAT1B-01R)

Order Information

9MQ670BMMR-SI (Box packing)

Optional Kit

CPU Cooler : 12SF1-SK1700-01R (For CPU TDP 125W, Push-pin type)
CPU Cooler : 25ST0-037820-Y0R (For CPU TDP 65W)
CPU Cooler Backplate : 12KRH-0A1700-00R (Used with P/N: 25ST0-037820-Y0R)
TPM 2.0 module : 9CTM010NR-00
VR Heatsink : 12SP2-090027-00R (Suggest to be used if CPU real power is over 100W)
