    uATX-H110A user manual
    V10 9.3 MB 2024-03-30 Download

Micro-ATX

uATX-H110A

  • EOL

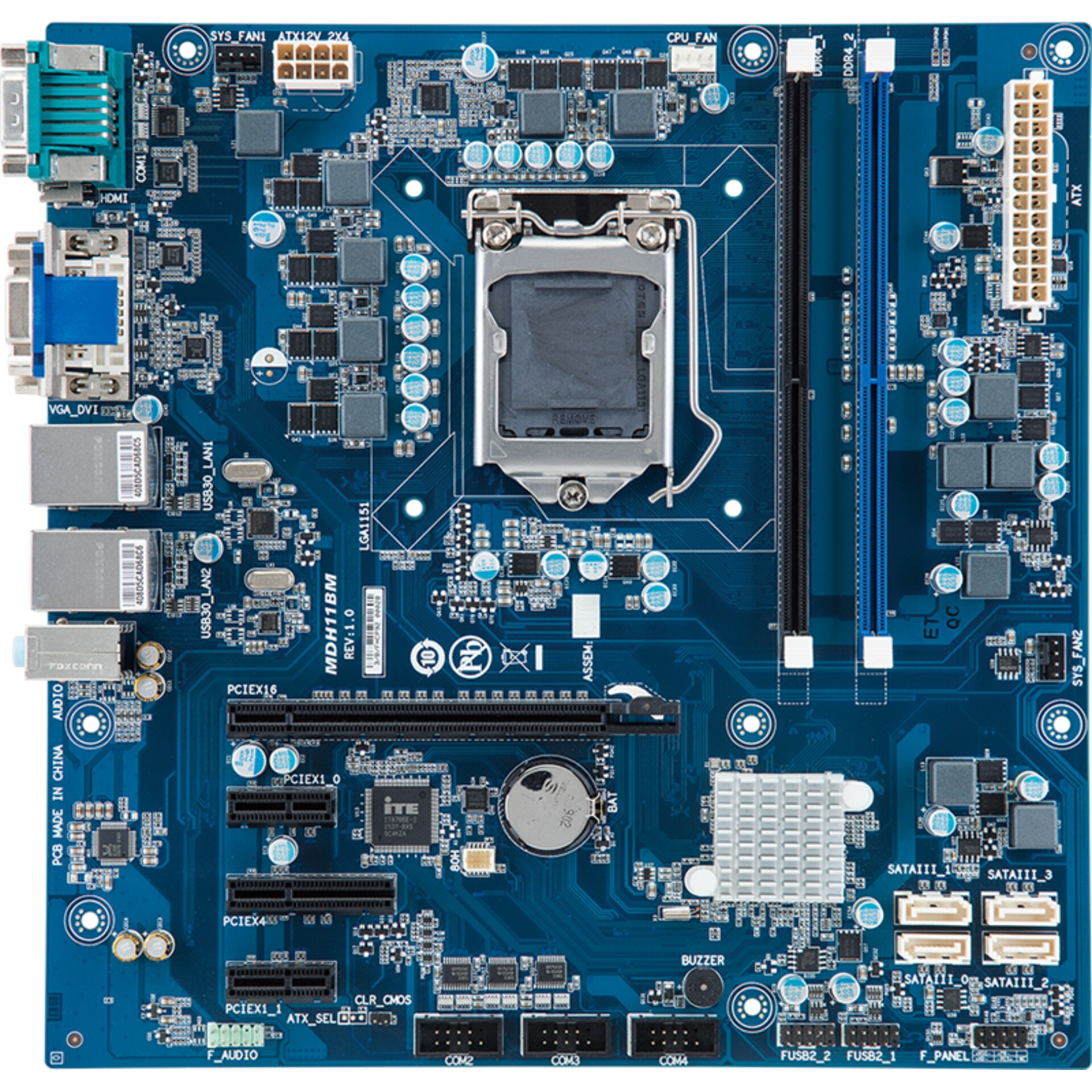

Key Features

Micro-ATX with Intel® H110 Chipset, support 7th/6th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe slot, 4 x COM, 6 x USB, 4 x SATA 6Gb/s



• Micro ATX form factor
• Support 7th/6th Generation Intel® Core™ Processors
• Dual Channel DDR4, 2 x DIMMs
• 2 x GbE LAN Ports
• 4 x SATA 6Gb/s Ports
• HDMI 1.4, DVI-D, VGA ports for multiple display
• 4 x COM Ports (RS-232)

SHARE
fb_share
linkedin_share

Specification

Form Factor

Micro ATX
244W x 244D(mm)

CPU

Support for 7th/6th Generation
Intel® Core™ i7/i5/i3, Pentium® & Celeron® processors in the LGA1151 package
TDP under 65W
L3 cache varies with CPU

Socket

1 x LGA 1151

Chipset

Intel® H110 Express Chipset

Memory

2 x DDR4 DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2400/2133 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I219LM and Realtek® RTL8111HS)

Video

Integrated Graphics Processor - depends on CPU:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @24Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
* The DVI-D port does not support VGA connection by adapter

(2 independent display outputs)

Audio

Realtek® Audio Codec

Storage

4 x SATA 6Gb/s Ports

Expansion Slots

1 x PCIe x16 (Gen3 x16)
1 x PCIe x4 (Gen2 x2)
2 x PCIe x1 (Gen2 x1)

Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x System fan headers
1 x Front panel header
1 x Front panel audio header
2 x USB 2.0 headers
3 x COM headers (RS-232)
1 x Clear CMOS jumper
1 x Buzzer

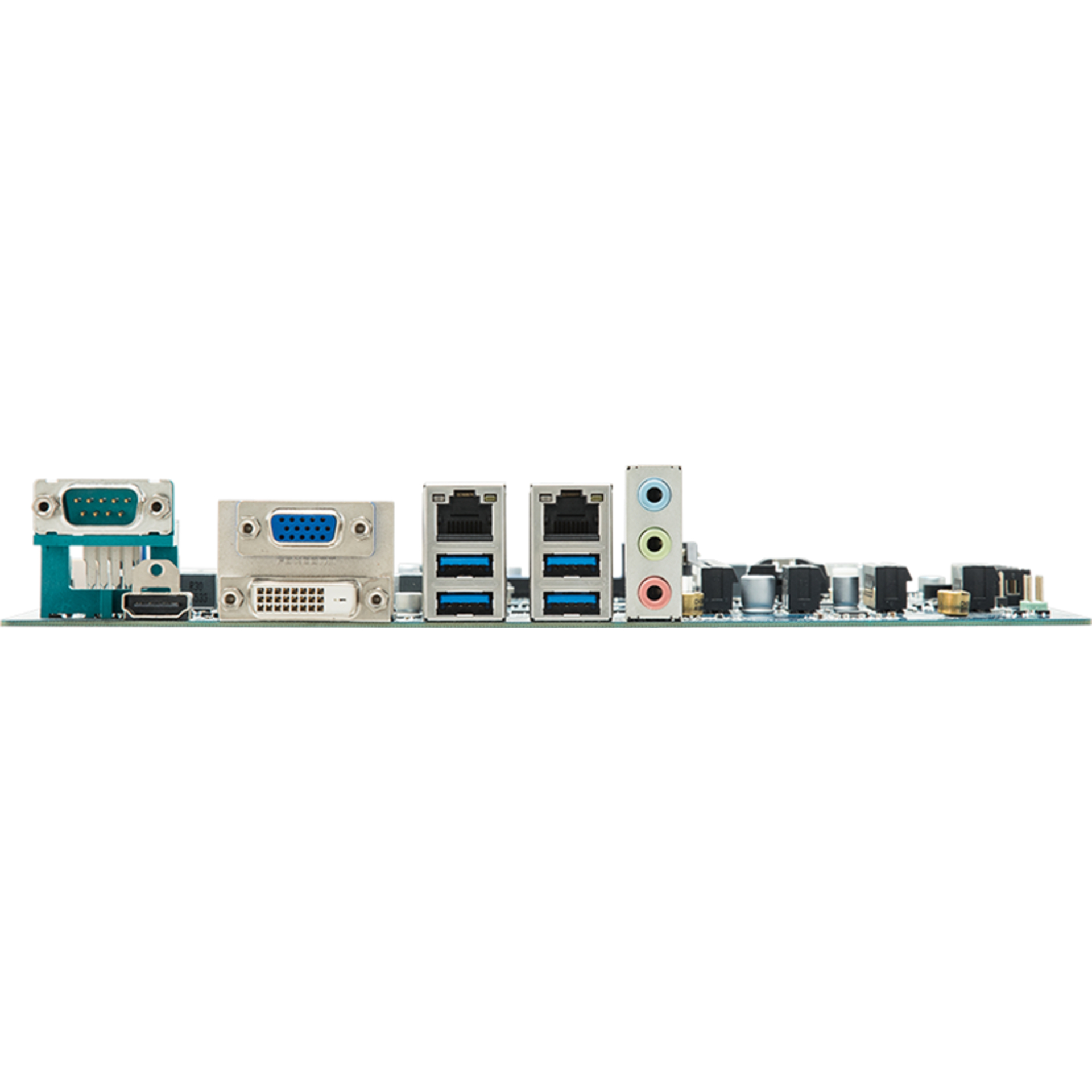

Rear l/O

3 x Audio Jacks (Line in, Line out, Mic in)
1 x COM Port (RS-232)
1 x HDMI
1 x DVI-D
1 x VGA
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1

TPM

Onboard TPM 2.0 security chip
INFINEON SLB9665VQ2.0

OS Compatibility

Windows 10 (x64)

Operating Properties

Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)

Packing Content

Carton size: 609 x 581 x 362 (mm)
Packing Capacity: 20pcs

Single Board weight: Approx. 0.6kg

Including:
IO Shield x 1 (P/N: 12AIO-MDH112-00R)

Order Information

9MDH11BMNR-SI (Bulk Packing)

Optional Kit

CPU Cooler : 25ST0-039520-Y0R
CPU Cooler Backplate : 12KRH-0A1155-30R

Technical Support

All Downloads
Select Operating System:
    Drivers
  • VGA
    File Name Version File Size Publish Date Download
    uATX-H110A_Graphic Driver for Win7
    21.20.16.5068 129.3 MB 2024-03-30 Download
    uATX-H110A_Graphic Driver for Win10
    26.20.100.6951 333.1 MB 2024-03-30 Download
  • Intel® Management Engine
    File Name Version File Size Publish Date Download
    uATX-H110A_Intel® Management Engine Driver for Win7
    1828.12.0.1152 68.9 MB 2024-03-30 Download
    uATX-H110A_Hot Fix for ME (Win7)
    KB2685811 1.5 MB 2024-03-30 Download
    uATX-H110A_Intel® Management Engine Driver for Win10
    1828.12.0.1152 68.9 MB 2024-03-30 Download
  • SATA RAID/AHCI
    File Name Version File Size Publish Date Download
    uATX-H110A_Net Framework 3.61
    3.61 64.5 MB 2024-03-30 Download
    uATX-H110A_Intel® Rapid Storage Technology (1). Install .Net Framework 3.61 (2). If system using SSD, need install KB2533623 hot fix
    15.9.2.1040 17.4 MB 2024-03-30 Download
    uATX-H110A_KB2533623 hot fix
    KB2533623 3.3 MB 2024-03-30 Download
    uATX-H110A_Intel® Rapid Storage Technology Note: Please install Microsoft .Net Framework 4.5 first
    17.5.1.1021 21.2 MB 2024-03-30 Download
  • USB 3.0
    File Name Version File Size Publish Date Download
    uATX-H110A_Intel® USB3.0 Driver for Win7
    5.0.4.43 5.3 MB 2024-03-30 Download
  • TPM
    File Name Version File Size Publish Date Download
    uATX-H110A_TPM Driver for Win7
    6.1.7601.18518 2.3 MB 2024-03-30 Download
  • Audio
    File Name Version File Size Publish Date Download
    uATX-H110A_Realtek Audio Driver for Win7
    6.0.1.8569 287.1 MB 2024-03-30 Download
    uATX-H110A_Realtek Audio Driver for Win10
    6.0.1.8569 287.1 MB 2024-03-30 Download
  • LAN
    File Name Version File Size Publish Date Download
    uATX-H110A_1G LAN Driver for Win7 (RTL8111HS)
    7.126.510.2019 10.7 MB 2024-03-30 Download
    uATX-H110A_1G LAN Driver for Win7 (I219LM)
    24.0 539.2 MB 2024-03-30 Download
    uATX-H110A_1G LAN Driver for Win10 (I219LM)
    24.0 539.2 MB 2024-03-30 Download
    uATX-H110A_1G LAN Driver for Win10 (RTL8111HS)
    10.35.510.2019 10.6 MB 2024-03-30 Download
  • Chipset
    File Name Version File Size Publish Date Download
    uATX-H110A_Chipset Driver for Win7
    10.1.6.2 4.4 MB 2024-03-30 Download
    uATX-H110A_Chipset Driver for Win10
    10.1.6.2 4.4 MB 2024-03-30 Download
    User Manuals
  • File Name Version File Size Publish Date Download
    uATX-H110A user manual
    V10 9.3 MB 2024-03-30 Download
