Mini-ITX

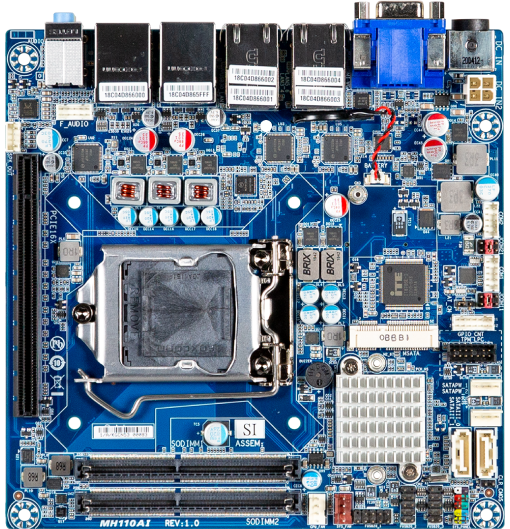

mITX-H110A
- EOL
Key Features
Mini-ITX with Intel® H110 Chipset, support 7th/6th Generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® Processor, Dual channel DDR4 memory, PCIe, 2 x COM, 9 x USB, 3 x SATA 6Gb/s
• Mini-ITX form factor
• Support 7th/6th Generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® Processors
• Intel® H110 Express Chipset
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• 3 x SATA 6Gb/s Ports with a SATA DOM supported
• 1 x 2280/2242 M.2 M-Key Storage SATA Slot
• HDMI, Display Port, VGA, LVDS/eDP ports for multiple display
• 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
Mini-ITX
mITX-H110A
Specification
Form Factor
Mini-ITX
170W x 170D(mm)
CPU
Support for 7th/6th Generation
Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package
TDP under 65W
L3 cache varies with CPU
Socket
1 x LGA 1151
Chipset
Intel® H110 Express Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2400/2133 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
Video
Integrated Graphics Processor - depends on CPU:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
1 x eDP port, supporting a maximum resolution of 1920x1080 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
* eDP port is alternative with LVDS port, only one can be worked at the same time
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
3 x SATA 6Gb/s Ports
(incl. 1 x SATA supports SATA DOM)
Expansion Slots
1 x PCIe x16 (Gen3 x16)
1 x 2280/2242 M.2 M-Key (SATA 6Gb/s)
1 x Full-size Mini-PCIe
Internal I/O
1 x 4-pin ATX main power connector
2 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
3 x USB 2.0 headers
2 x USB 3.2 Gen 1 headers
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x GPIO (8-bits) & SMBus header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer
1 x AT/ATX mode select jumper
Rear l/O
3 x Audio Jacks (Line in, Line out, Mic in)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x Display Port
1 x VGA
2 x RJ45 LAN Ports
2 x USB 2.0
2 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V/+24VDC)
TPM
1 x TPM header
OS Compatibility
Windows 10 (x64)
Windows 7 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.6kg
Including:
IO Shield x 1 (P/N: 12AIO-MDH114-00R)
Screw Flat Head M2*2.5 x 1 (P/N: 12KS2-110202-01R)
Screw Stand Off x 1 (P/N: 12KSF-F10303-20R)
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Screw I Head M2x3L x 1 (P/N: 25KSG-130032-S0R)
Order Information
9MDH11LIMR-SI (Box packing)
Optional Kit
CPU Cooler : 25ST0-039520-Y0R
CPU Cooler Backplate : 12KRH-0A1155-30R
TPM 2.0 module: 9CTM000NR-00
