Thin Mini-ITX

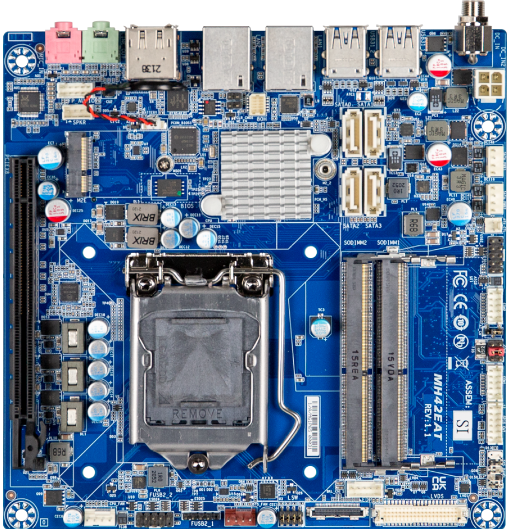

iTXL-Q47EA
Key Features
Thin Mini-ITX with Intel® Q470E Chipset, support 10th Generation Intel® Core™ Processor, Dual Channel DDR4 Memory, PCIe, 2 x COM, 10 x USB, 4 x SATA 6Gb/s
• Thin Mini-ITX form factor
• Support 10th Generation Intel® Core™ Processors
• Intel® Q470E Express chipset
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• 4 x SATA 6Gb/s Ports
• HDMI, Display Port, eDP/LVDS ports for Multiple Display
• Realtek® Audio codec
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 1 x COM Port (RS-232)
Thin Mini-ITX
iTXL-Q47EA
Specification
Form Factor
Thin Mini-ITX
170W x 170D(mm)
CPU
Support for 10th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® & Celeron® processors in the LGA1200 package
TDP under 65W
L3 cache varies with CPU
Socket
1 x LGA 1200
Chipset
Intel® Q470E Express Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 2933/2666 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219LM and Intel® I211AT)
Video
Integrated Graphics Processor - Intel® HD Graphics support:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
1 x eDP port, supporting a maximum resolution of 4096x2160 @60Hz
* eDP connector is alternative with LVDS port, only one can be worked at the same time
(3 independent display outputs)
Audio
Realtek® ALC897
Storage
4 x SATA 6Gb/s Ports (RAID 0/1/5/10)
Expansion Slots
1 x PCIe x16 (Gen3 x8)
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
Internal I/O
1 x 4-pin ATX main power connector
2 x SATA Power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
6 x USB 2.0 headers
1 x COM header (RS-232)
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x GPIO (8 bits) & SMBus header
1 x Clear CMOS jumper
1 x Backlight Control header
1 x ATX Control header
1 x AT/ATX mode select jumper
Rear l/O
2 x Audio Jacks (Line out, Mic in)
1 x HDMI
1 x Display Port
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19~24VDC)
TPM
1 x TPM header
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Including:
Standard IO Shield x 1 (P/N: 12AIO-MH610A-00R)
Low-Profile IO Shield x 1 (P/N: 12AIO-MQ47EA-20R)
SATA Power Cable x 2 (P/N: 25CRI-300B01-K1R)
Order Information
9MQ47EATMR-SI (Box Packing)
Optional Kit
TPM 2.0 module: 9CTM000NR-00
TPM Cable : 25CRZ-100600-S9R
