Thin Mini-ITX
iTXL-Q370A
Key Features
Thin Mini-ITX with Intel® Q370 Chipset, support 9th/8th Generation Intel® Core™ Processors, Dual-channel DDR4 memory, PCIe, 1 x COM, 11 x USB, 4 x SATA 6Gb/s
• Thin Mini-ITX form factor
• Support 9th/8th Generation Intel® Core™ Processors
• Dual Channel DDR4, 2 x SO-DIMMs
• 1 x GbE LAN Port
• 4 x SATA 6Gb/s Ports
• HDMI 2.0, Display Port, LVDS ports for multiple display
• 1 x COM Port (RS-232)
Thin Mini-ITX
iTXL-Q370A
Specification
Form Factor
Thin Mini-ITX
170W x 170D(mm)
CPU
Support for 9th/8th Generation
Intel® Core™ i7/i5/i3, Pentium® & Celeron® processors in the LGA1151 package
TDP under 65W
L3 cache varies with CPU
Socket
1 x LGA 1151
Chipset
Intel® Q370 Express Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2666/2400 MHz memory modules
Ethernet
1 x GbE LAN Port (Intel® I219LM)
Video
Integrated Graphics Processor - depends on CPU :
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
(3 independent display outputs)
Audio
Realtek® Audio Codec
Storage
4 x SATA 6Gb/s Ports (RAID 0/1/5/10)
Expansion Slots
1 x PCIe x4 (Gen3 x4)
1 x 2280/2260 M.2 M-Key (PCIe x4, SATA 6Gb/s, Optane memory)
1 x 2230 M.2 E-Key

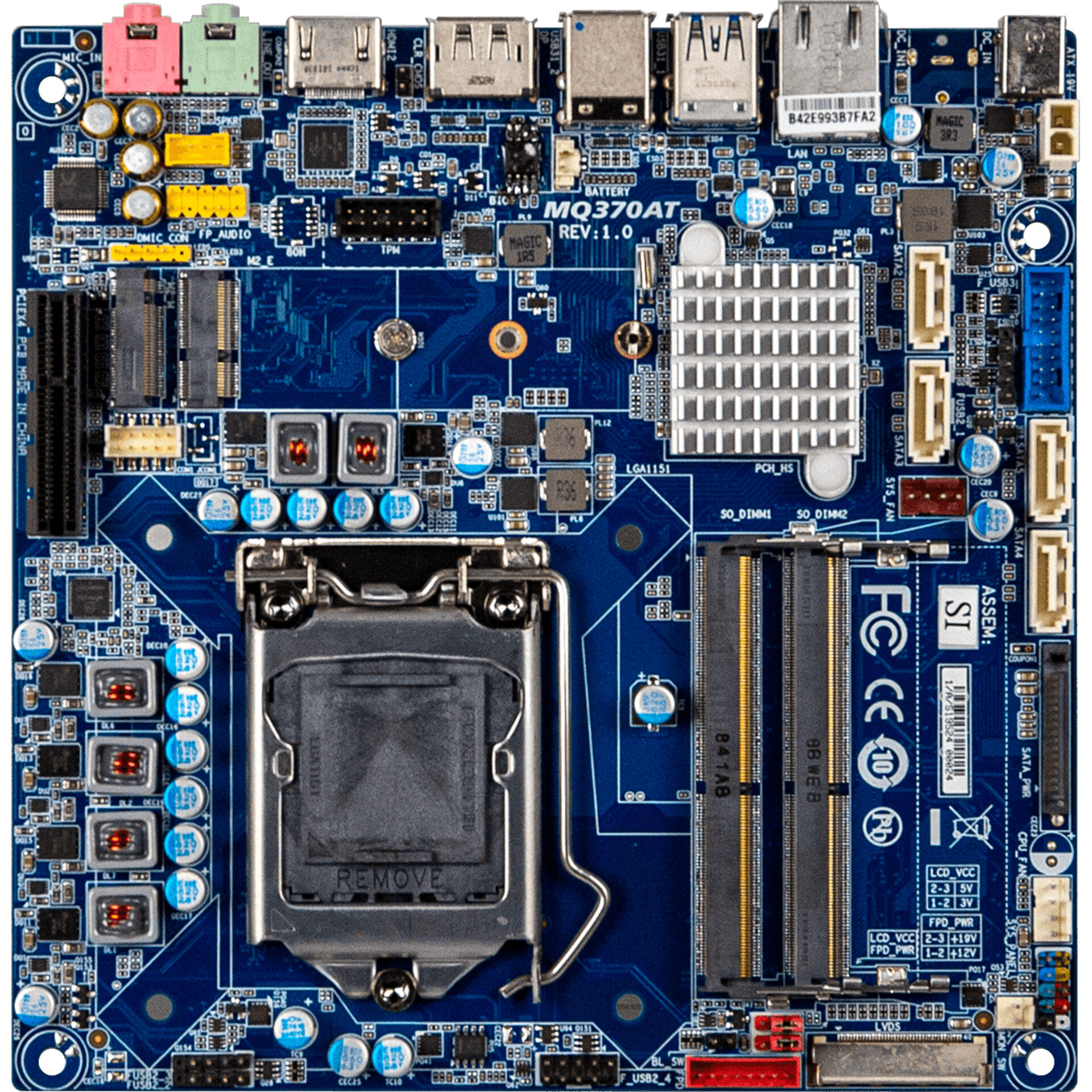

Internal I/O
1 x 2-pin ATX main power connector
1 x SATA Power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 3W Speaker out header
1 x DMIC header
5 x USB 2.0 headers
2 x USB 3.2 Gen 1 headers
1 x COM header (RS-232)
1 x FPD (For LVDS 19V)
1 x FPD_SW 1x3 (For Panel Power SW)
1 x LCD_VCC Pin header
1 x Backlight Control header
1 x Clear CMOS jumper

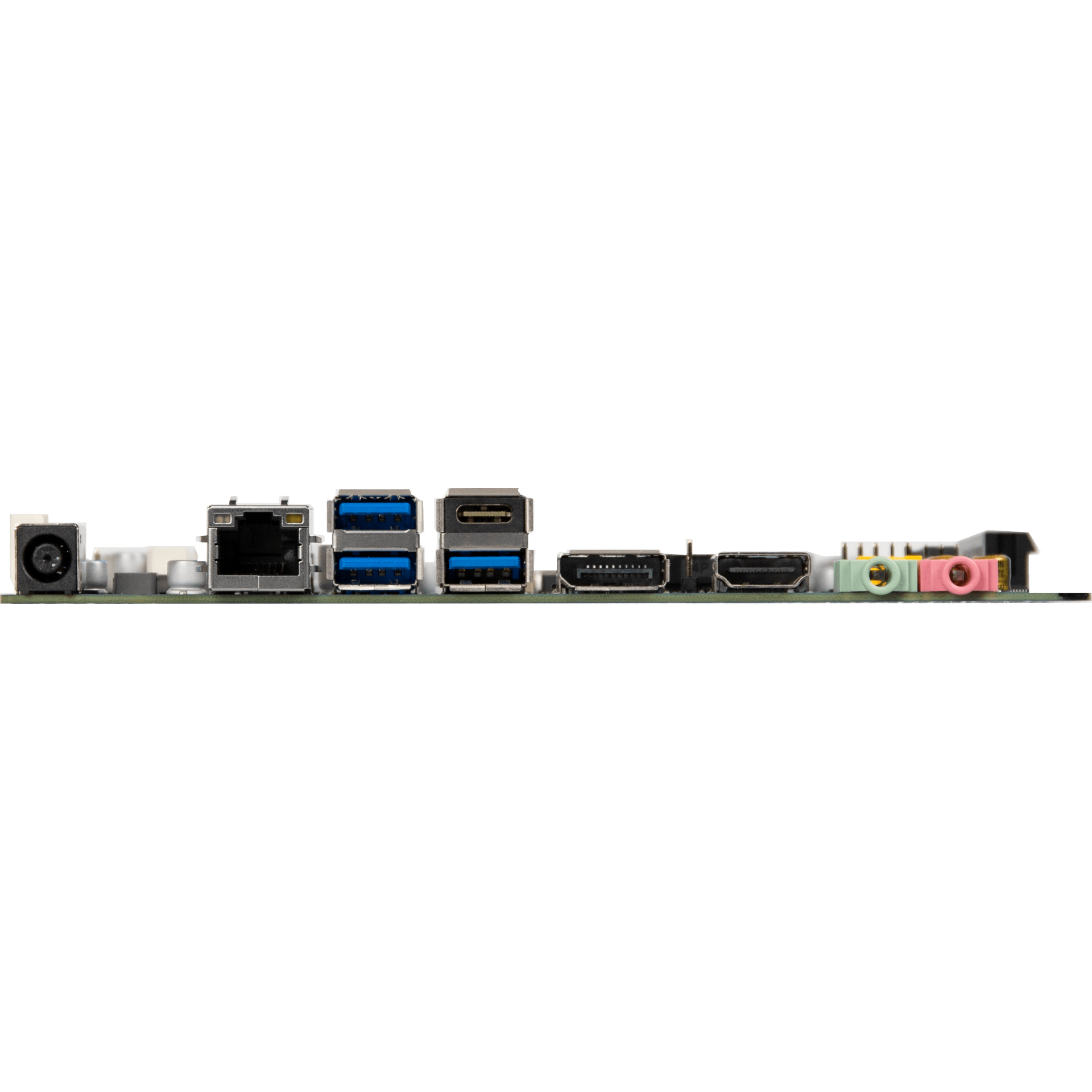

Rear l/O
2 x Audio Jacks (Line out, Mic in)
1 x HDMI
1 x Display Port
1 x RJ45 LAN Port
3 x USB 3.2 Gen 1
1 x USB 3.2 Gen 1 Type C
1 x DC Jack (+12V/+19VDC)
TPM
1 x TPM header
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.55kg
Including:
IO Shield x 1 (P/N: 12AIO-MCH370-00R)
SATA Power cable x 1 (P/N: 25CRI-710300-K1R)
Order Information
9MQ370ATMR-SI (Box Packing)
Optional Kit
CPU Cooler : 25ST0-039520-Y0R
CPU Cooler Backplate : 12KRH-0A1155-30R
TPM 2.0 module: 9CTM000NR-00
