Thin Mini-ITX
iTXL-H110C
- EOL
Key Features
Thin Mini-ITX with Intel® H110 Chipset, support 7th/6th Generation Intel® Core™ Processors, Dual channel DDR4 memory, 1 x COM, 9 x USB, 2 x SATA 6Gb/s
• Thin Mini-ITX form factor
• Support 7th/6th Generation Intel® Core™ Processos
• Intel® H110 Express Chipset
• Dual Channel DDR4, 2 x SO-DIMMs
• 1 x GbE LAN Port
• 2 x SATA 6Gb/s Ports
• HDMI, Display Port, LVDS ports for multiple display
• 1 x COM Port (RS-232)

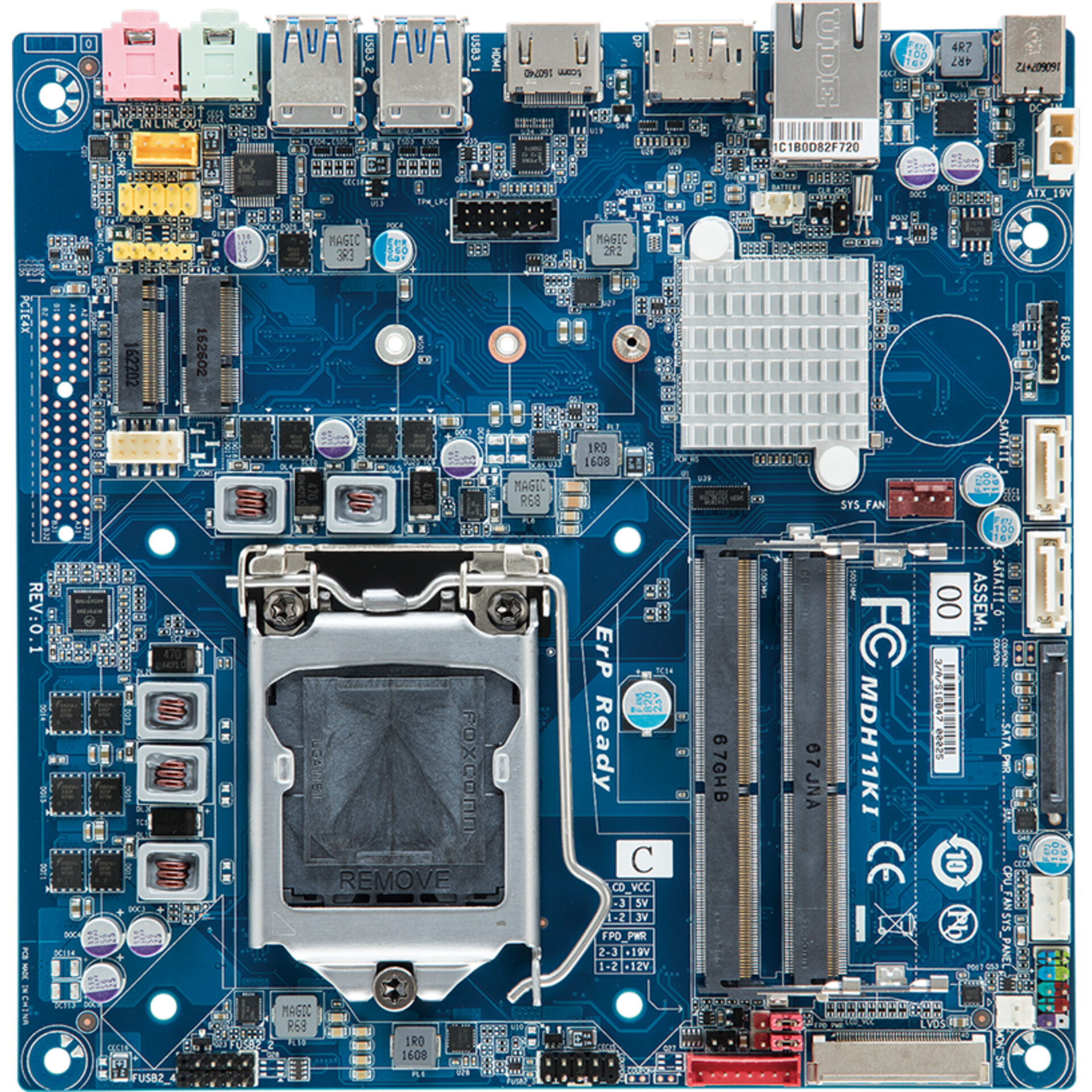

Thin Mini-ITX
iTXL-H110C
Specification
Form Factor
Thin Mini-ITX
170W x 170D(mm)
CPU
Support for 7th/6th Generation
Intel® Core™ i7/i5/i3 processors, Pentium® & Celeron® processors in the LGA1151 package
TDP under 65W
L3 cache varies with CPU
Socket
1 x LGA 1151
Chipset
Intel® H110 Express Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2400/2133 MHz memory modules
Ethernet
1 x GbE LAN Port (Realtek® RTL8111HS)
Video
Integrated Graphics Processor - depends on CPU :
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
2 x SATA 6Gb/s Ports
Expansion Slots
1 x 2280/2260 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key
Internal I/O
1 x 2-pin ATX main power connector
1 x SATA Power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 3W Speaker out header
1 x DMIC header
5 x USB 2.0 headers
1 x COM header (RS-232)
1 x FPD (For LVDS 19V)
1 x FPD_SW 1x3 (For Panel Power SW)
1 x LCD_VCC Pin header
1 x Backlight Control header
1 x Clear CMOS jumper
Rear l/O
2 x Audio Jacks (Line out, Mic in)
1 x HDMI
1 x Display Port
1 x RJ45 LAN Port
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19VDC)
TPM
1 x TPM header
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 550 x 451 x 330 (mm)
Packing Capacity: 20pcs
Single Board weight: Approx. 0.45kg
Including:
IO Shield x 1 (P/N: 12AIO-H77TN3-00R)
IO Shield STD x 1 (P/N: 12AIO-H77TN4-00R)
Screw Flat Head M2*2.5 GTY x 1 (P/N: 12KS2-110202-01R)
Screw M3x3L D=5 FLAT HEAT ST x 1 (P/N: 25982G-1C024-S00)
SATA Power cable x 1 (P/N: 25CRI-270320-D3R)
Order Information
9MDH11KINR-SI (Bulk Packing)
Optional Kit
CPU Cooler : 25ST0-039520-Y0R
CPU Cooler Backplate : 12KRH-0A1155-30R
TPM 2.0 module: 9CTM000NR-00
