Thin Mini-ITX

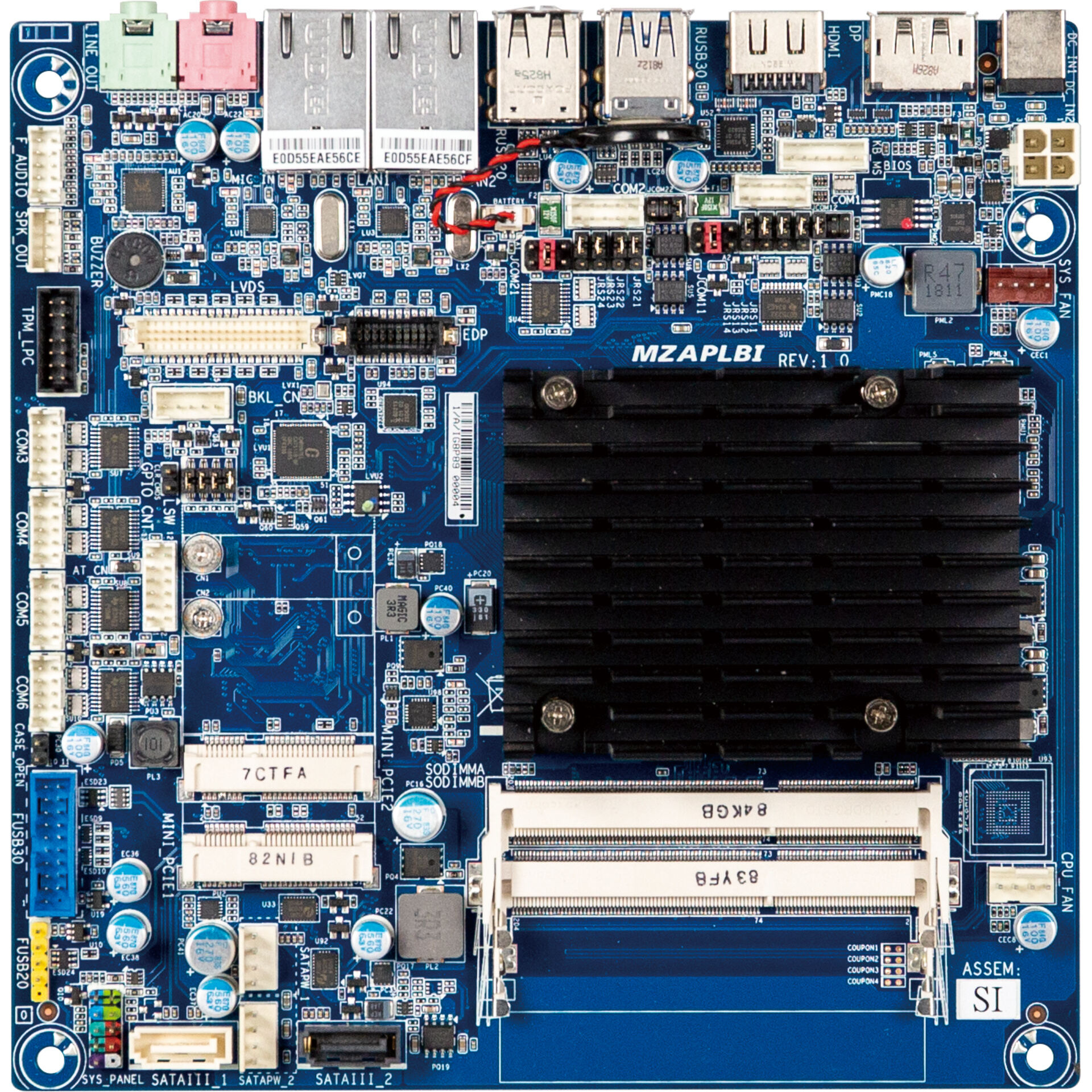

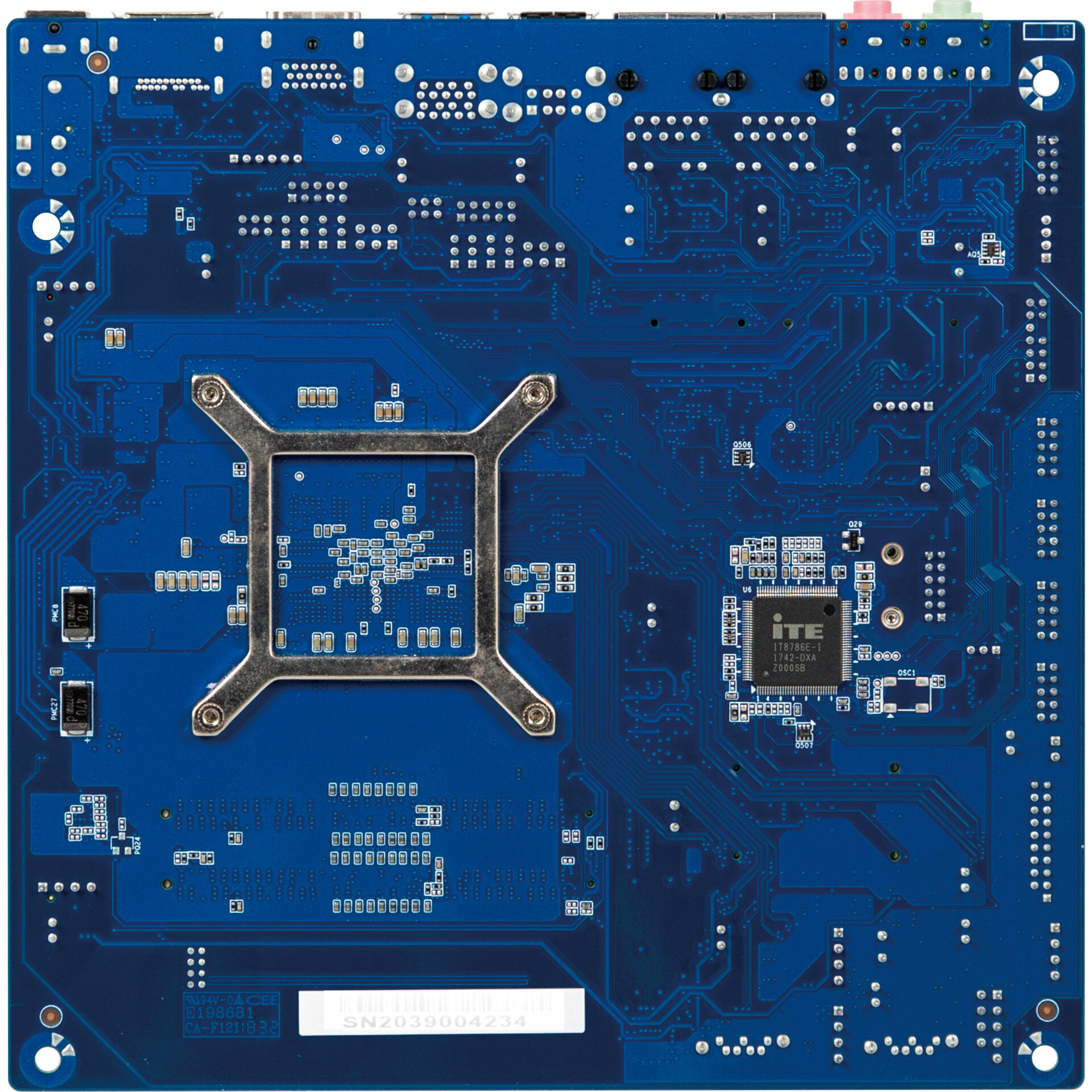

iTXL-3350A
- EOL
Key Features
Thin Mini-ITX Embedded Motherboard with Intel® N3350 Processor, Dual Channel DDR3L memory, 6 x COM, 2 x SATA 6Gb/s, 7 x USB
• Thin Mini-ITX form factor
• Intel® Celeron® N3350 Processor
• Dual Channel DDR3L, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• 2 x SATA 6Gb/s Ports
• HDMI, Display Port, LVDS/eDP ports for multiple display
• 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
• 4 x COM Ports (RS-232)
• Support eMMC (Optional)
Thin Mini-ITX
iTXL-3350A
Specification
Form Factor
Thin Mini-ITX
170W x 170D(mm)
CPU
Intel® Celeron® N3350 Processor
14nm, 2 cores, 2 threads, up to 2.40 GHz
TDP 6W
Socket
1 x FCBGA1296
Memory
2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB
Support Dual channel DDR3L 1866 MHz memory modules
Ethernet
2 x GbE LAN Ports (Realtek® RTL8111HS)
Video
Integrated Graphics Processor - Intel® HD Graphics 500:
1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
1 x eDP port, supporting a maximum resolution of 1920x1080 @60Hz
* eDP connector is alternative with LVDS port, only one can be worked at the same time
(3 independent display outputs)
Audio
Realtek® ALC269
Storage
2 x SATA 6Gb/s Ports
(1 x switch with mSATA)
(incl. 1 x SATA supports SATA DOM)
Expansion Slots
1 x Full-size Mini PCIe/mSATA
1 x Half-size Mini PCIe (PCIe Only)
Internal I/O
1 x 4-pin ATX main power connector
2 x SATA Power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
1 x USB 2.0 header
2 x USB 3.2 Gen 1 headers
4 x COM headers (RS-232)
2 x COM headers (RS-232/422/485 & RI/5V/12V)
1 x Backlight Control header
1 x PS/2 Keyboard/Mouse Connector
1 x GPIO (8 bits) & SMBus header
1 x Buzzer
1 x Clear CMOS jumper
1 x AT/ATX mode select jumper
1 x Case open header

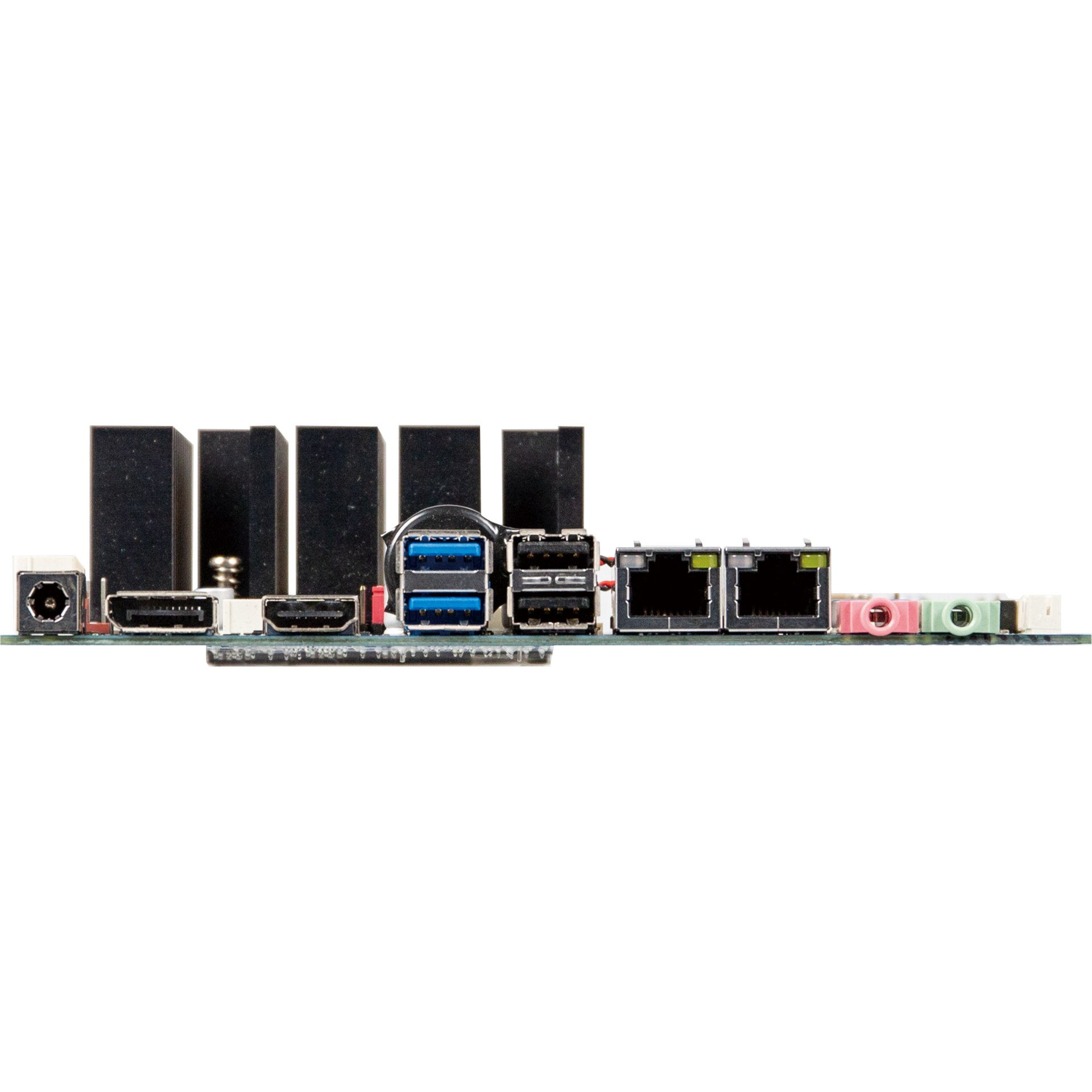

Rear l/O
2 x Audio Jacks (Line out, Mic in)
1 x HDMI
1 x Display Port
2 x RJ45 LAN Ports
2 x USB 2.0
2 x USB 3.2 Gen 1
1 x DC Jack (+12VDC)
TPM
1 x TPM header
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217(mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.6kg
Including:
IO Shield x 1 (P/N: 12AIO-MKLPC1-00R)
SATA Power cable x 1 (P/N: 25CRI-200B02-K1R)
Order Information
9MZAPLBIMR-SI (Box Packing)
Optional Kit
TPM 2.0 module: 9CTM000NR-00
