Thin Mini-ITX

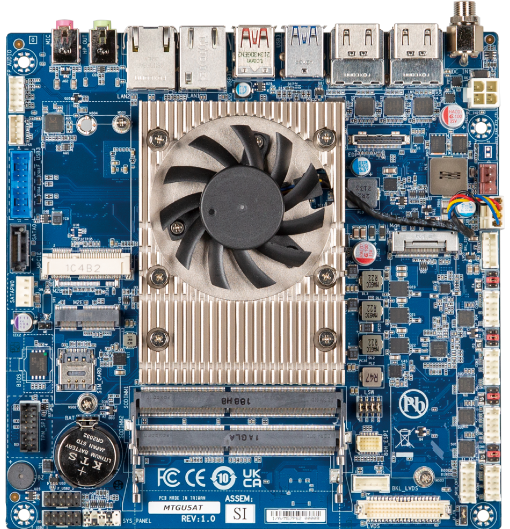

iTXL-1135G7A
Key Features
Thin Mini-ITX Embedded Motherboard with Intel® Core™ i5-1135G7 Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 10 x USB
• Thin Mini-ITX form factor
• Intel® Core™ i5-1135G7 Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 1 x GbE LAN Port
• 1 x 2.5GbE LAN Port
• 1 x SATA 6Gb/s Port
• 4 x COM Ports (RS-232/422/485 & RI/5V/12V)
Thin Mini-ITX
iTXL-1135G7A
Specification
Form Factor
Thin Mini-ITX
170W x 170D(mm)
CPU
Intel® Core™ i5-1135G7 Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.2 GHz
TDP 28W
8 MB Smart Cache
Socket
1 x FCBGA1449
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet
1 x GbE LAN Port (Intel® I219V)
1 x 2.5GbE LAN Port (Intel® I226V)
Video
Integrated Graphics Processor - Intel® Iris® Xᵉ Graphics:
4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
1 x eDP port, supporting a maximum resolution of 4096x2304 @60Hz
(4 independent display outputs)
Audio
Realtek® ALC269
Storage
1 x SATA 6Gb/s Port (SATA RAID 0/1)
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)
1 x Full-size Mini PCIe with SIM slot
1 x 2230 M.2 E-key
Internal I/O
1 x 4-pin ATX main power connector
1 x SATA Power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
4 x USB 2.0 headers
2 x USB 3.2 Gen 1 headers
4 x COM headers (RS-232/422/485 & RI/5V/12V)
1 x 2W Speaker out header
1 x Backlight Control header for eDP
1 x Backlight Control header for LVDS
1 x GPIO (8 bits) & SMBus header
1 x Buzzer
1 x AT/ATX mode select jumper
Rear l/O
2 x Audio Jacks (Line out, Mic in)
4 x HDMI
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 3.2 Gen 1
1 x DC Jack (+12~24VDC)
TPM
1 x TPM header (SPI)
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.8kg
Including:
Standard IO Shield x 1 (P/N: 12AIO-MTGU3A-00R)
Low-Profile IO Shield x 1 (P/N: 12AIO-MTGU00-00R
SATA Power cable x 1 (P/N: 25CRI-300B01-K1R)
Order Information
9MTGU5ATMR-SI (Box Packing)
Optional Kit
TPM 2.0 module P/N: 9CTM010NR-00
TPM Cable P/N: 25CRZ-100600-S9R
