SDM-7100L
Key Features
Intel® Smart Display Module with Intel® i3-7100U Processor
• Intel® Core™ i3-7100U Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• HDMI and DP for dual display outputs
• 1 x GbE LAN Port
• Ultra-Fast M.2 with PCIe Gen3 x4 interface
• 4 x USB 3.2 Gen 1
Smart Display Module (SDM)
SDM-7100L

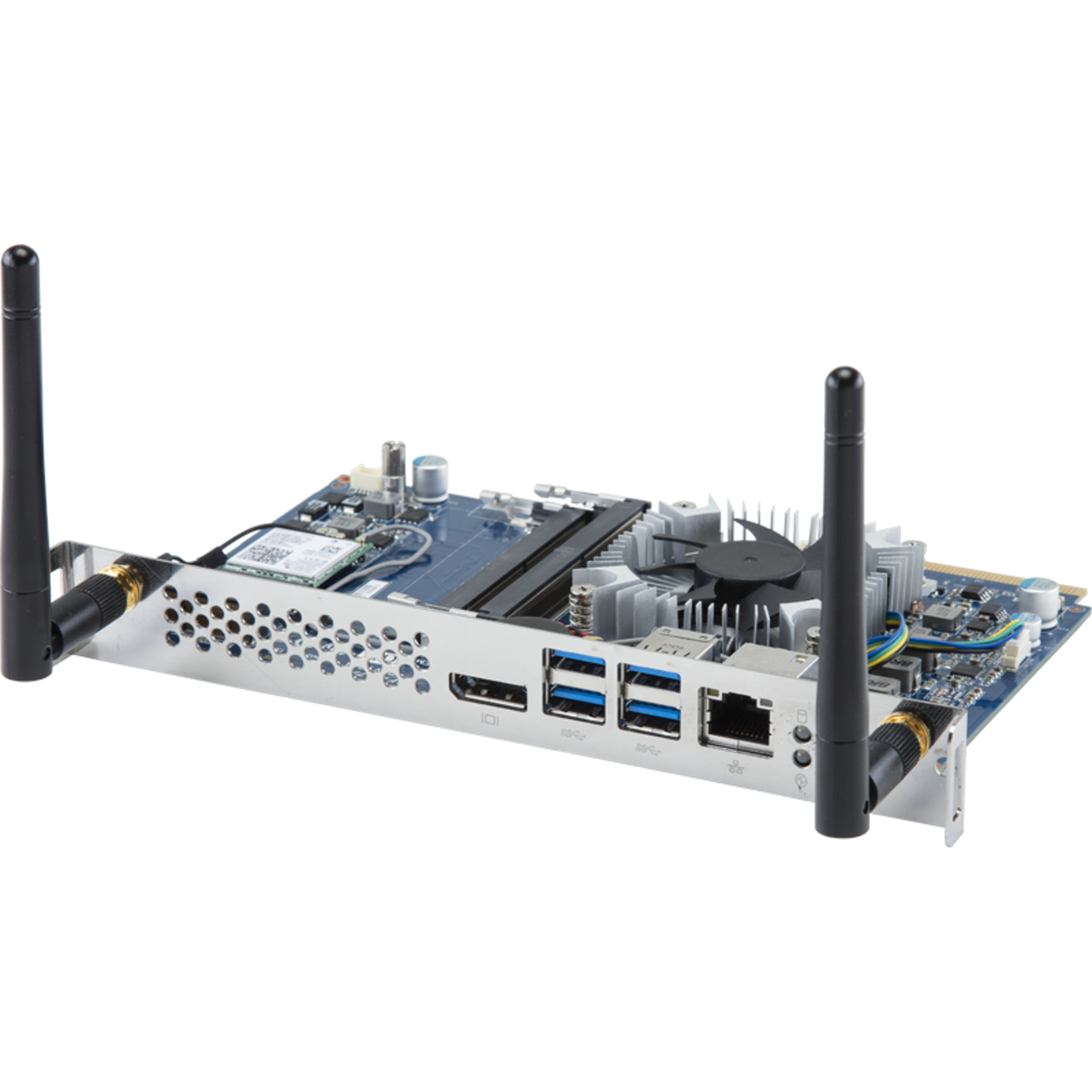

As display panels become thinner and power-efficient with high performance, Intel® is presenting Smart Display Module (SDM), it's almost one-third size of OPS, but still an all-in-one integrated board with full computing capability supported with Intel® Core™ i3-7100U processor, dual channel DDR4 memory up to 32GB, 1 x HDMI and 1 x Display Port up to 4K resolution, 4 x USB 3.2 Gen 1 and high-speed PCIe connectivity.
Its form factor without enclosure brings the benefit of cost-effective on total solution design and integration flexibility to meet space-limited requirement. It can be built in or externally plugged into a display panel to work mainly for commercial and retail markets, such as Interactive Whiteboard, menuboard, video wall, KIOSK and digital signage, etc. The end user can update software content from remote location, and furthermore, quickly remove and replace SDM for maintenance or hardware upgrade purpose to save CAPEX and OPEX.
Specification
Form Factor
SDM-Large
175W x 100D(mm)
CPU
Intel® Core™ i3-7100U Processor
14nm, 2 cores, 4 threads, 2.4 GHz
TDP 15W
Socket
1 x FCBGA 1356
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 2133 MHz memory modules
Ethernet
1 x GbE LAN Port (Intel® I219V)
Video
Integrated Graphics Processor - Intel® HD Graphics 620:
1 x HDMI 2.0 port (SDM), supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port (Rear/SDM side), supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Intel® Integrated Audio
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-key (WiFi/BT)

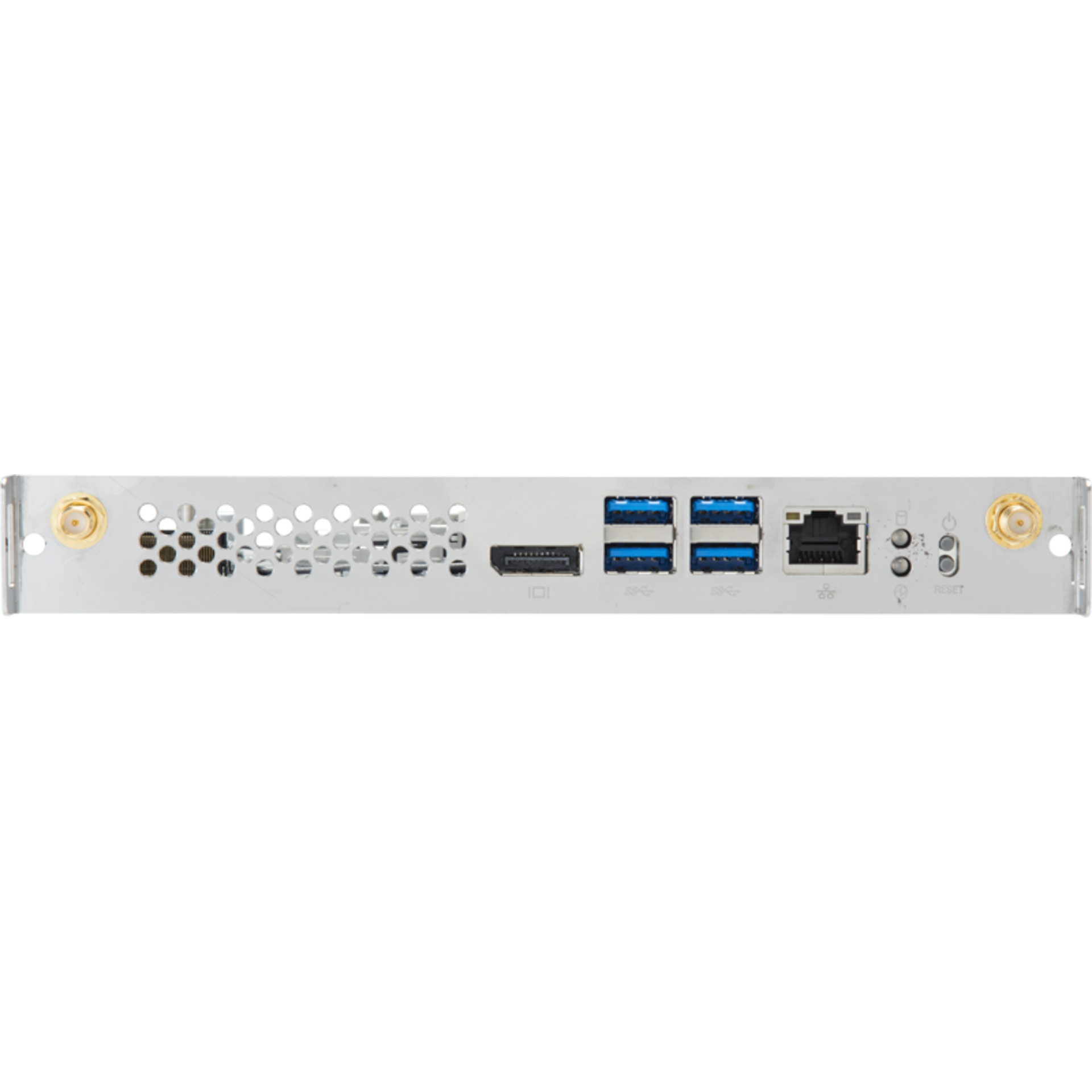

Rear l/O
1 x Display Port
1 x RJ45 LAN Port
4 x USB 3.2 Gen 1
1 x PWR LED
1 x HDD LED
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to +55°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Including: Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)
Order Information
9MFLP3ALMR-SI (Box packing)
