QBiX Pro Series (3.5" Embedded Systems)
QBiX-Pro-WHLA8265H-A1
Key Features
Industrial system with Intel® Core™ i5-8265U Processor/ Fanless Design/ Dual Channel DDR4 up to 64GB/ 2 x HDMI
• System Size: 178W x 125D x 52.7H (mm)
• Intel® Core™ i5-8265U Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x HDMI for Dual display
• 2 x GbE LAN Ports
QBiX Pro Series (3.5" Embedded Systems)
QBiX-Pro-WHLA8265H-A1

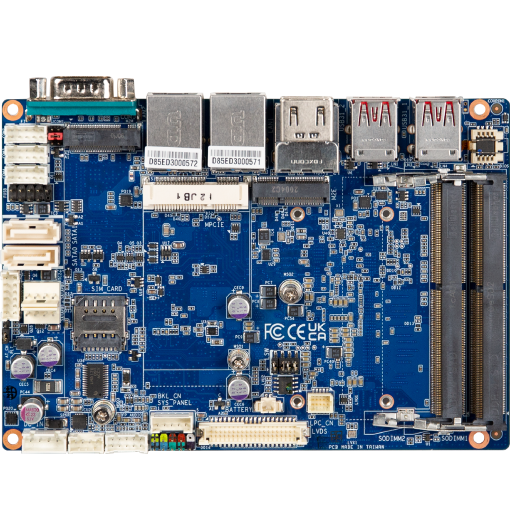

QBiX Pro Series of GIGAIPC embedded system is implemented with GIGAIPC QBi Pro (3.5" SubCompact Board). Its fan-less design reduces the risk of fan failure and maintainance efforts. The aluminium heatsink and ruggedized chassis enhanced the ability to work in harsh environment. The Compact size can easily be designed in any applications in limited space, such as factory automation, industrial controller / Surveillance systems and IoT Gateway. Furthermore, it can be a computing solution dedicated to thin client, POS, KIOSK for commercial market.
QBiX-Pro-WHLA8265H-A1 is powered by Intel® Core™ i5-8265U Processor, to provide "low power but high performance" for energy-saving requests. It is designed with full range 9-36V DC power inputs for operating temperature of 0°C~50°C and rich I/O interfaces, such as 3 x COM Ports, 1 x GPIO (8 bits), 4 x USB 3.2 Gen 2x1 and more as well as expansion M.2 slots to fit in various applications. The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.
Specification
Dimension
178W x 125D x 52.7H(mm)
CPU
Intel® Core™ i5-8265U Processor
14nm, 4 cores, 8 threads, up to 3.9 GHz
TDP 15W
Chipset
SoC
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 2400 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
Graphics Support
Integrated Graphics Processor - Intel® UHD Graphics for 8th Generation Intel® Processors:
2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2160 @30Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
Front I/O
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x COM Port (RS-232/422/485 & RI/5V/12V)
Rear l/O
2 x USB 2.0
2 x COM Ports (RS-232)
1 x GPIO (8 bits)
1 x Headphone Jack
1 x 3-pin Terminal Block
Side I/O
2 x External Antenna Holes (Optional)
Power
+9V~36VDC (Full Range)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs
Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 2.1kg
Including:
Screw I Head For 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad x 2 (P/N: 25ST3-200052-T5R)
Thermal Pad x 1 (P/N: 25ST3-200051-T5R)
SATA Cable x 1 (P/N: 25CF4-070020-S9R)
Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R)
Mounting
Wall mount (Optional)
Order Information
6BQP8265AMR-SI (Box packing)
Optional Kit
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
