QBiX Pro Series (3.5" Embedded Systems)
QBiX-Pro-EHLA6412H-A1
Key Features
Industrial system with Intel® Celeron® J6412 Processor/ Fanless Design/ Dual Channel DDR4 up to 32GB/ 2 x HDMI
• System Size : 178W x 125D x 52.7H (mm)
• Intel® Celeron® J6412 Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 1 x COM Port (RS-232/422/485)
• 1 x COM Port (RS-232)
• 2 x GbE LAN Ports
QBiX Pro Series (3.5" Embedded Systems)
QBiX-Pro-EHLA6412H-A1
Specification
Dimension
178W x 125D x 52.7H(mm)
CPU
Intel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz
TDP 10W
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I210AT)
Graphics Support
Integrated Graphics Processor -
Intel® UHD Graphics for 10th Gen Intel® Processors:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x Full-size Mini PCIe with SIM slot

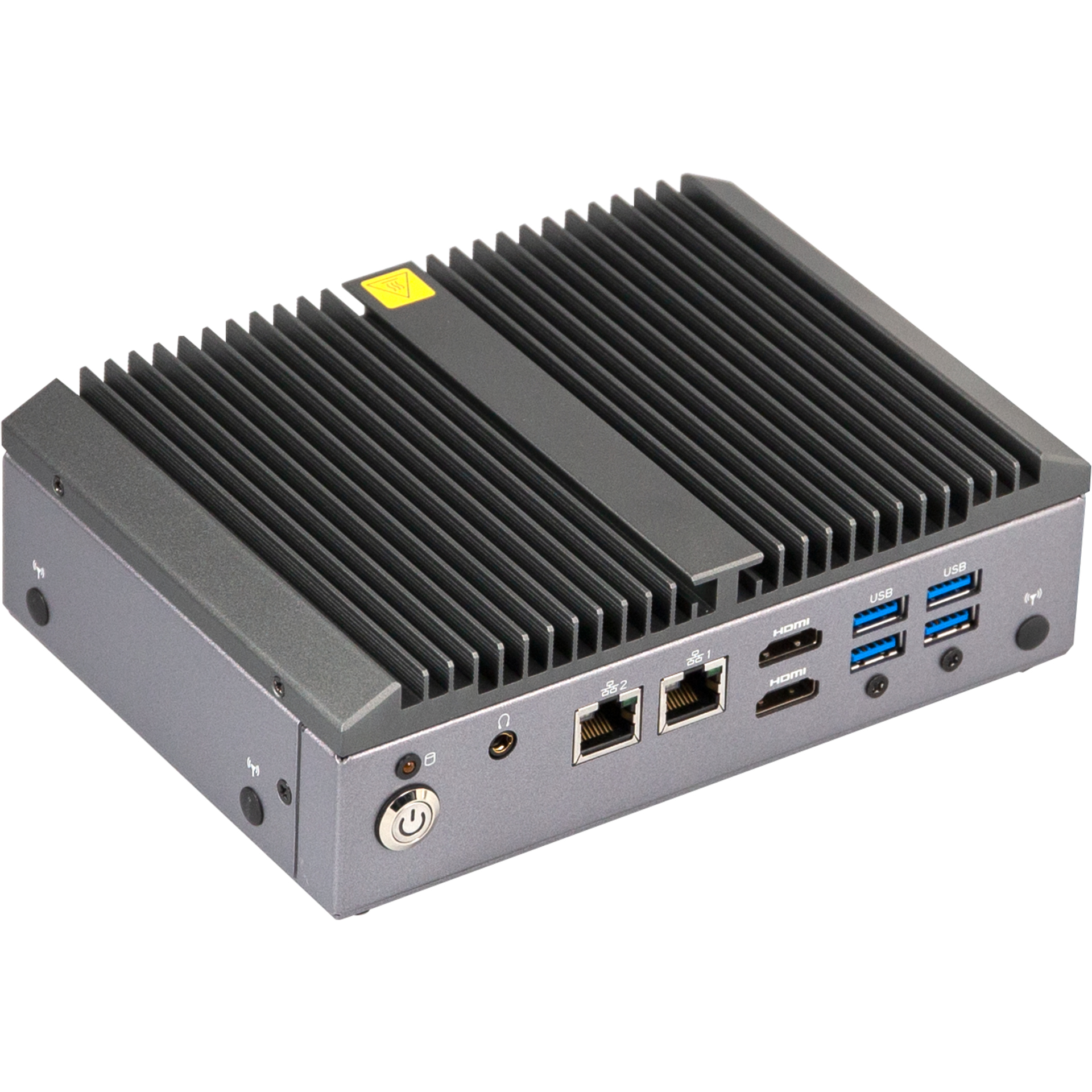

Front I/O
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x Headphone Jack

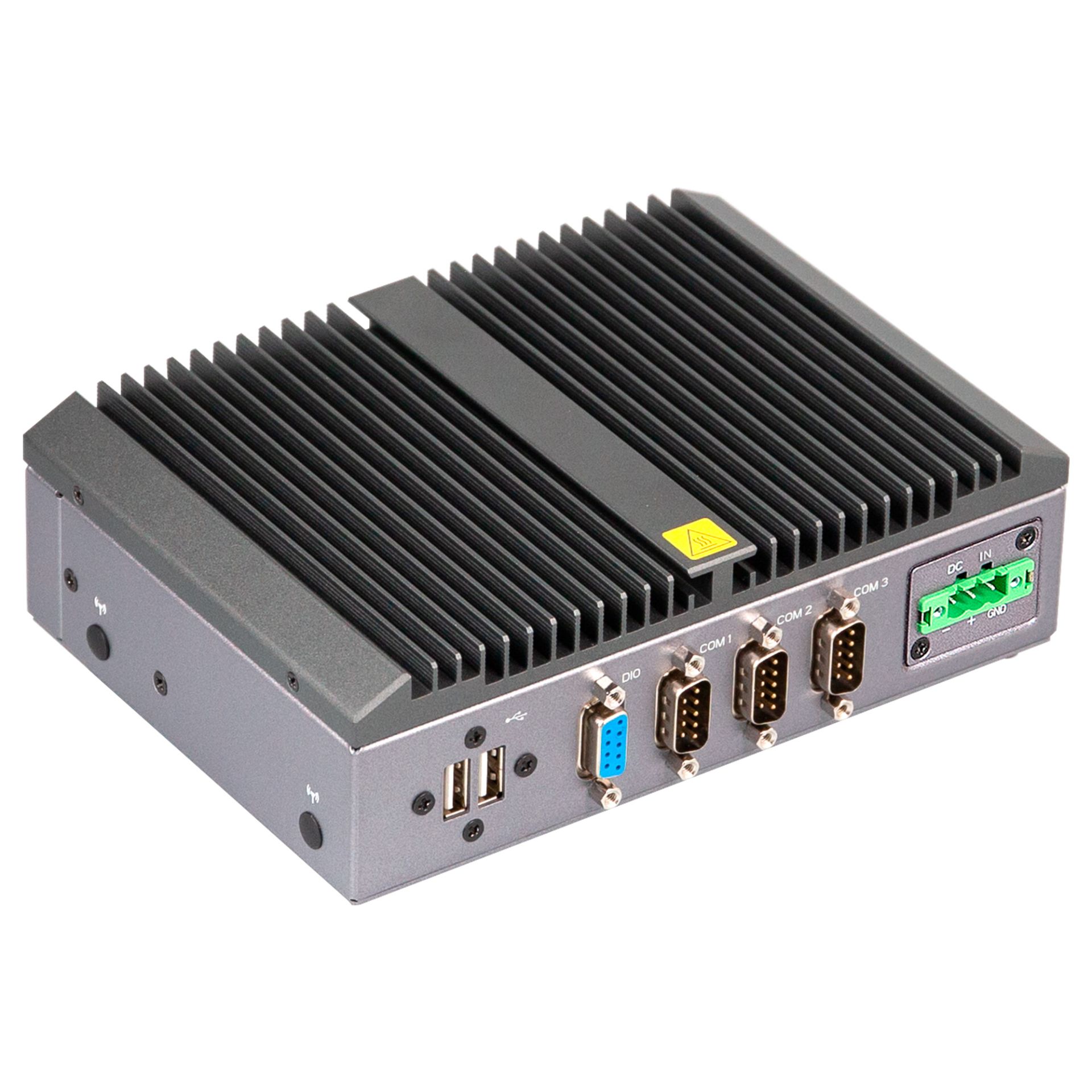

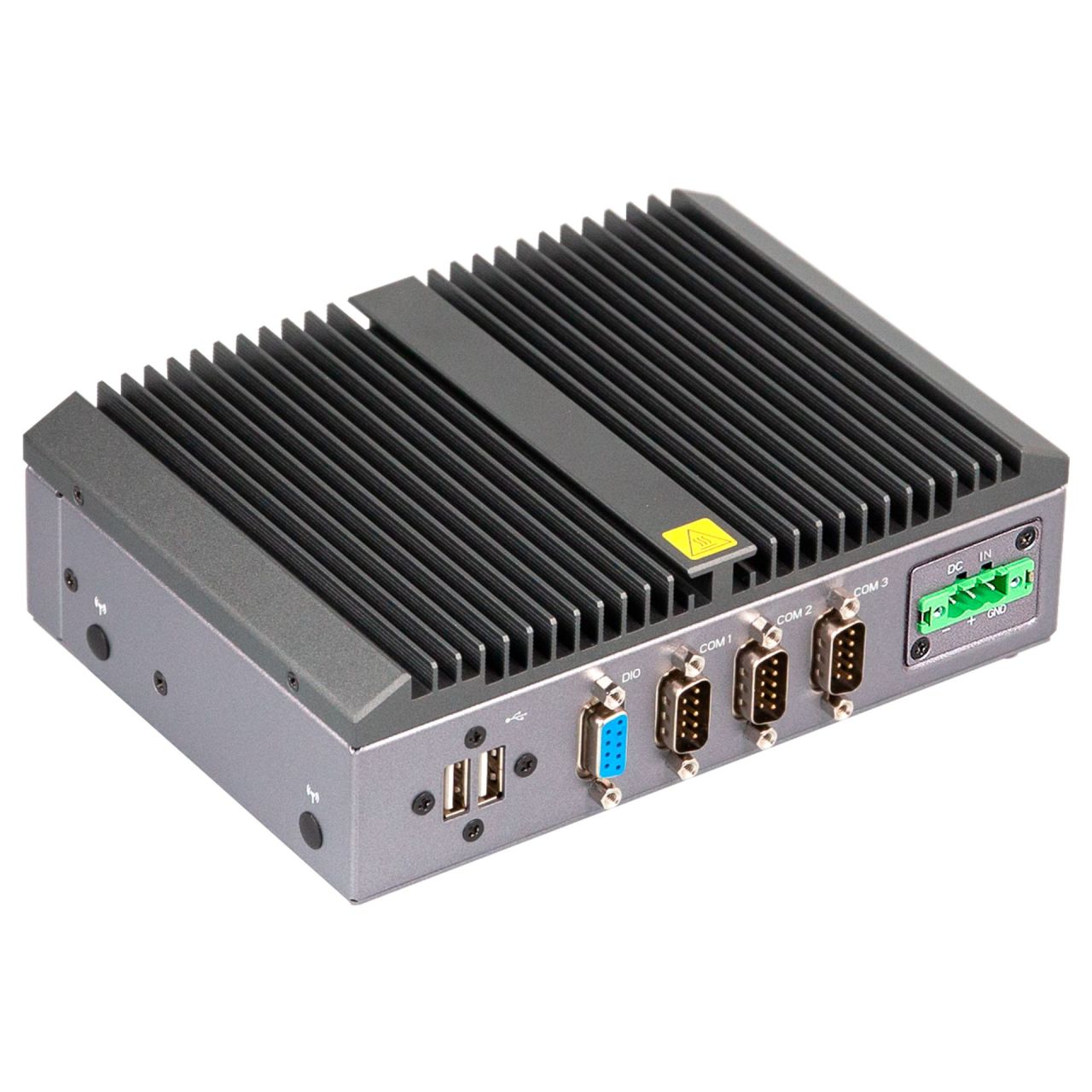

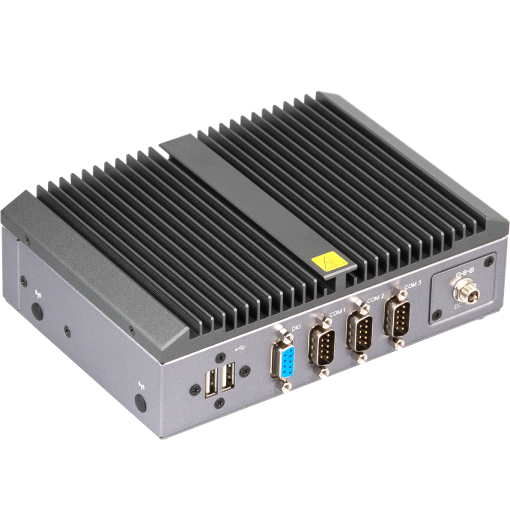

Rear l/O
2 x USB 2.0
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x COM Port (RS-232/422/485)
1 x COM Port (RS-232)
1 x GPIO (8 bits)
1 x 3-pin Terminal block
Side I/O
2 x External Antenna Holes (Optional)
Power
+12V~36VDC (Full Range)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs
Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 2.0kg
Including:
Screw I Head For 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
SATA Cable x 1 (P/N: 25CRI-150001-S9R)
Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R)
Mounting
Wall mount P/N: 25HB2-CGAA20-CHR x 1 (Optional)
VESA 75/100 P/N: 25HB1-TPL021-S8R x 1 + 25KSD-000002-C0R x 1 (Screw) (Optional)
Order Information
6BQP6412AMR-SI (Box packing)
