Key Features
DIN Rail industrial system with Intel® Celeron® J1900 Processor
• System Size : 160W x 118D x 62.6H(mm)
• Intel® Celeron® J1900 Processor
• Single Channel DDR3L 1333 MHz
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 1 x COM Port (RS-232/422/485)
• 2 x GbE LAN Ports
QBiX DIN Rail Series (Din Rail Embedded Systems)
QBiX-Pro-BYTA1900HD-A1
HOME
Products
Embedded Systems
QBiX DIN Rail Series (Din Rail Embedded Systems)
QBiX-Pro-BYTA1900HD-A1
Specification
Dimension
160W x 118D x 62.6H (mm)
CPU
Intel® Celeron® J1900 Processor
22nm, 4 cores, 4 threads, up to 2.42 GHz
TDP 10W
Memory
1 x DDR3L SO-DIMM socket, Max. Capacity 8 GB
Support Single Channel DDR3L 1333 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I211AT)
Graphics Support
Integrated Grapics Processor -Intel® HD Graphics:
1 x HDMI 1.4 port, supporting a maximum resolution of 1920x1200 @60Hz
1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio codec
Storage
1 x 2.5" HDD/SSD (SATA 3Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (SATA 3Gb/s)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0)--support 3G/4G module

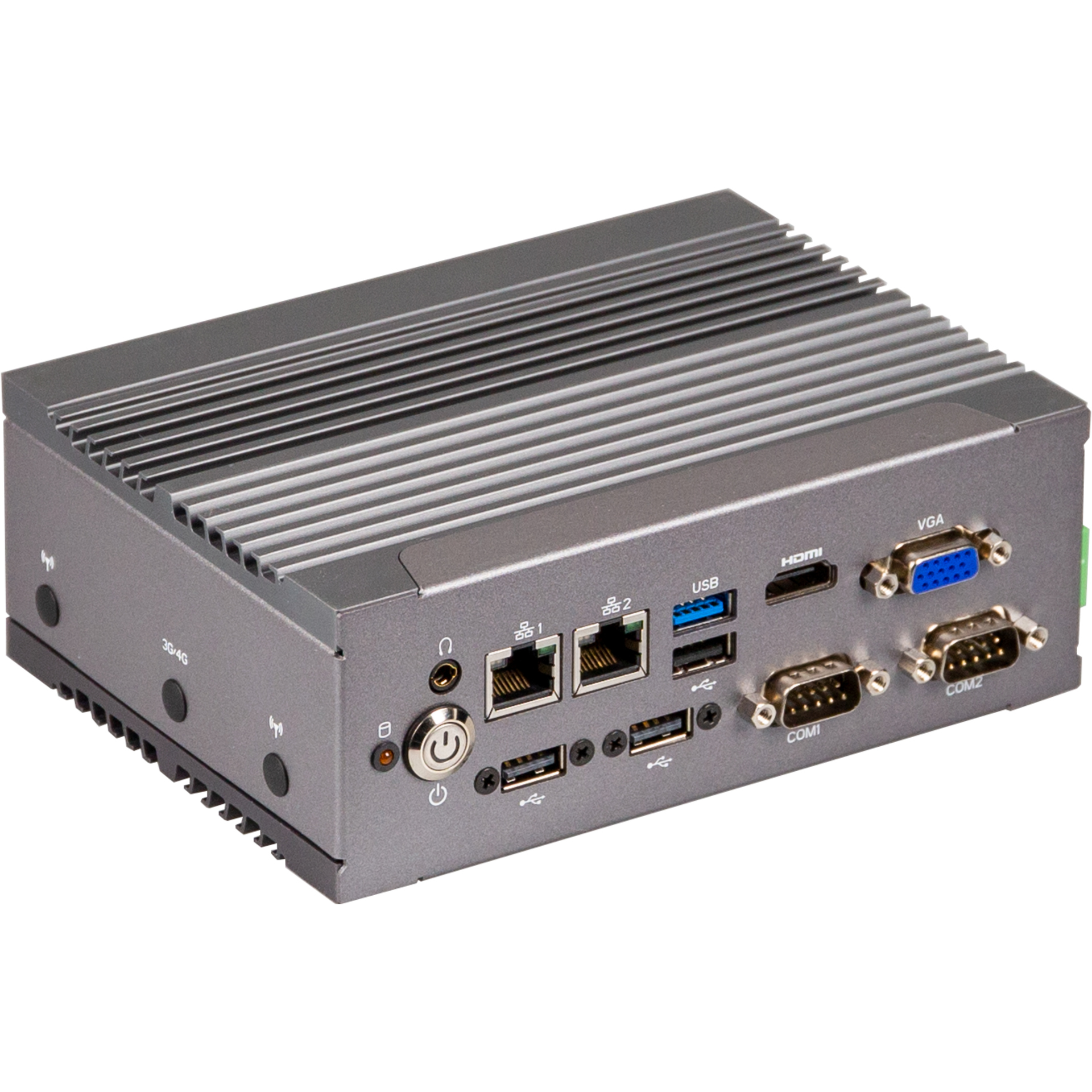

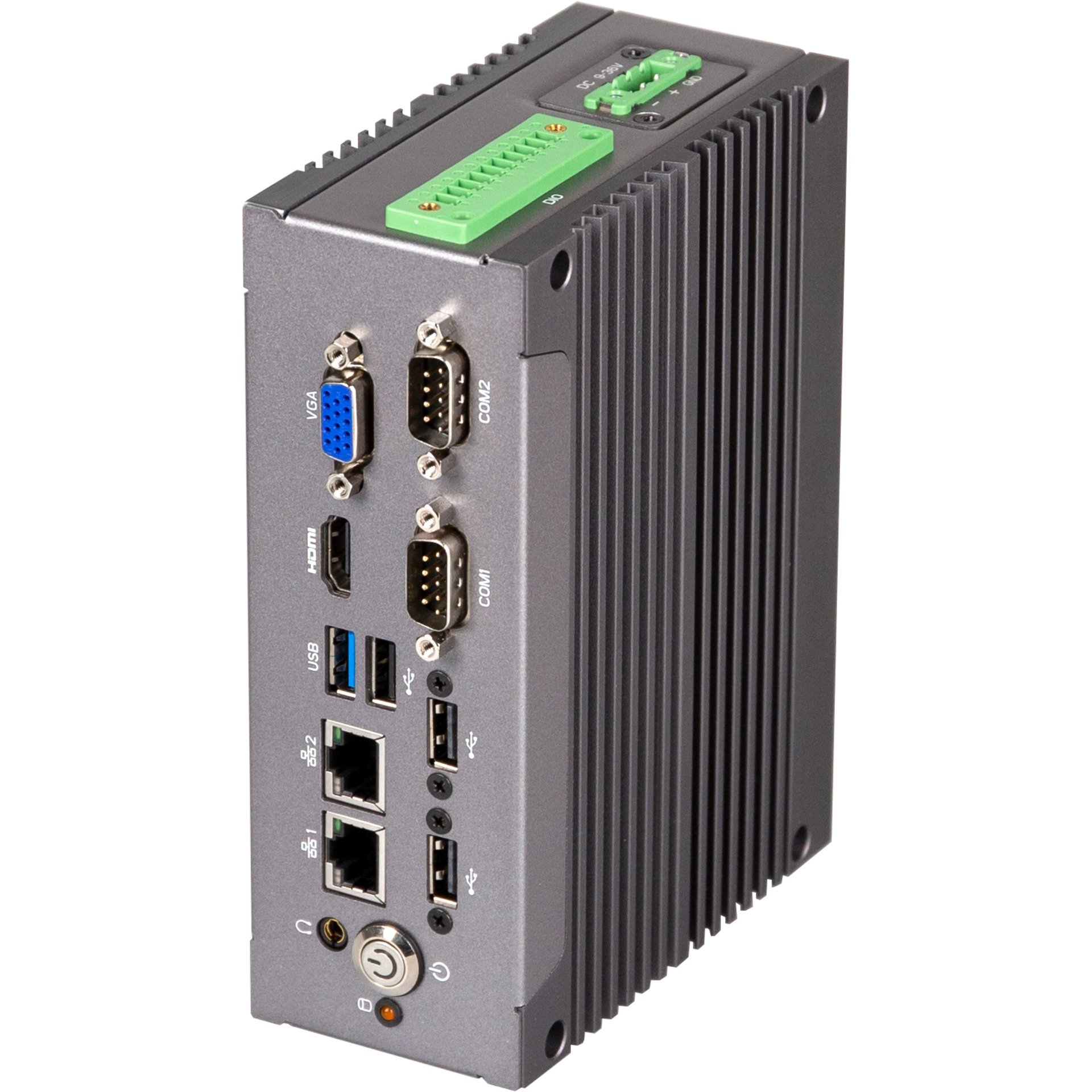

Front I/O
2 x RJ45 LAN Ports
1 x USB 3.2 Gen 1
3 x USB 2.0
1 x HDMI
1 x VGA
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x COM Port (RS-232/422/485)
1 x Power button with LED
1 x HDD LED
1 x Headphone Jack

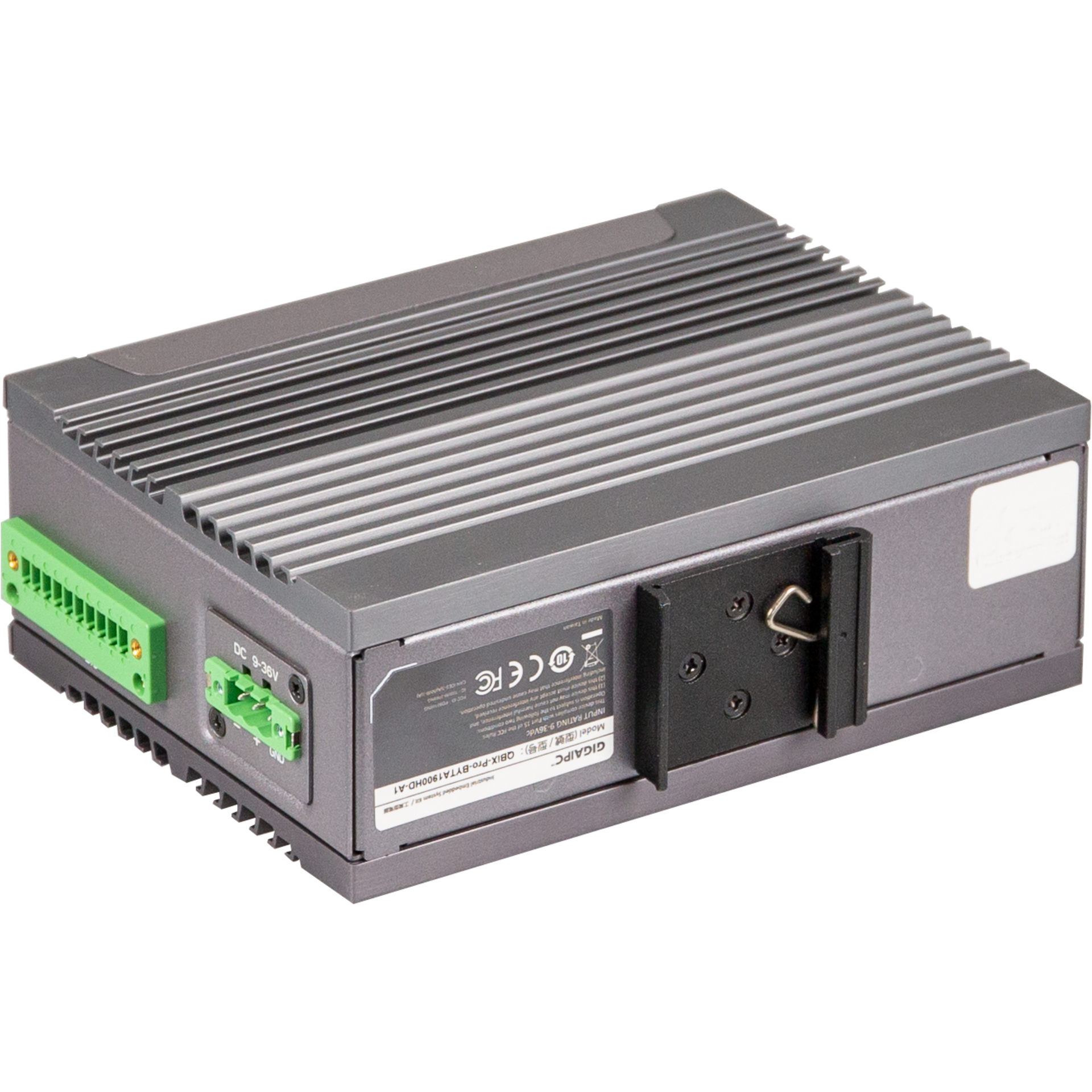

Rear l/O
1 x Din Rail Mounting Support
Side I/O
1 x GPIO (8 bits)
1 x 3-pin Terminal Block
3 x External Antenna Holes (Optional)
TPM
1 x TPM header
Power
+9V~36VDC (Full Range)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 416 x 409 x 347 (mm)
Packing Capacity: 6pcs
Single Box size: 308 x 191 x 130 (mm)
Including:
Screw for 2.5" HDD M3x4L x 4 (P/N: 25984G-1C014-S00)
Terminal Blocks 1*3P x 1 (P/N: 25IO0-5ESDV0-D2R)
Terminal Blocks 1*10P x 1 (P/N: 25IO0-EC3810-D2R)
Mounting
DIN Rail
Wall mount (Optional)
Order Information
6BQP1900BMR-SI (Box packing)
Optional Kit
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
