QBiX Pro Series (3.5" Embedded Systems)

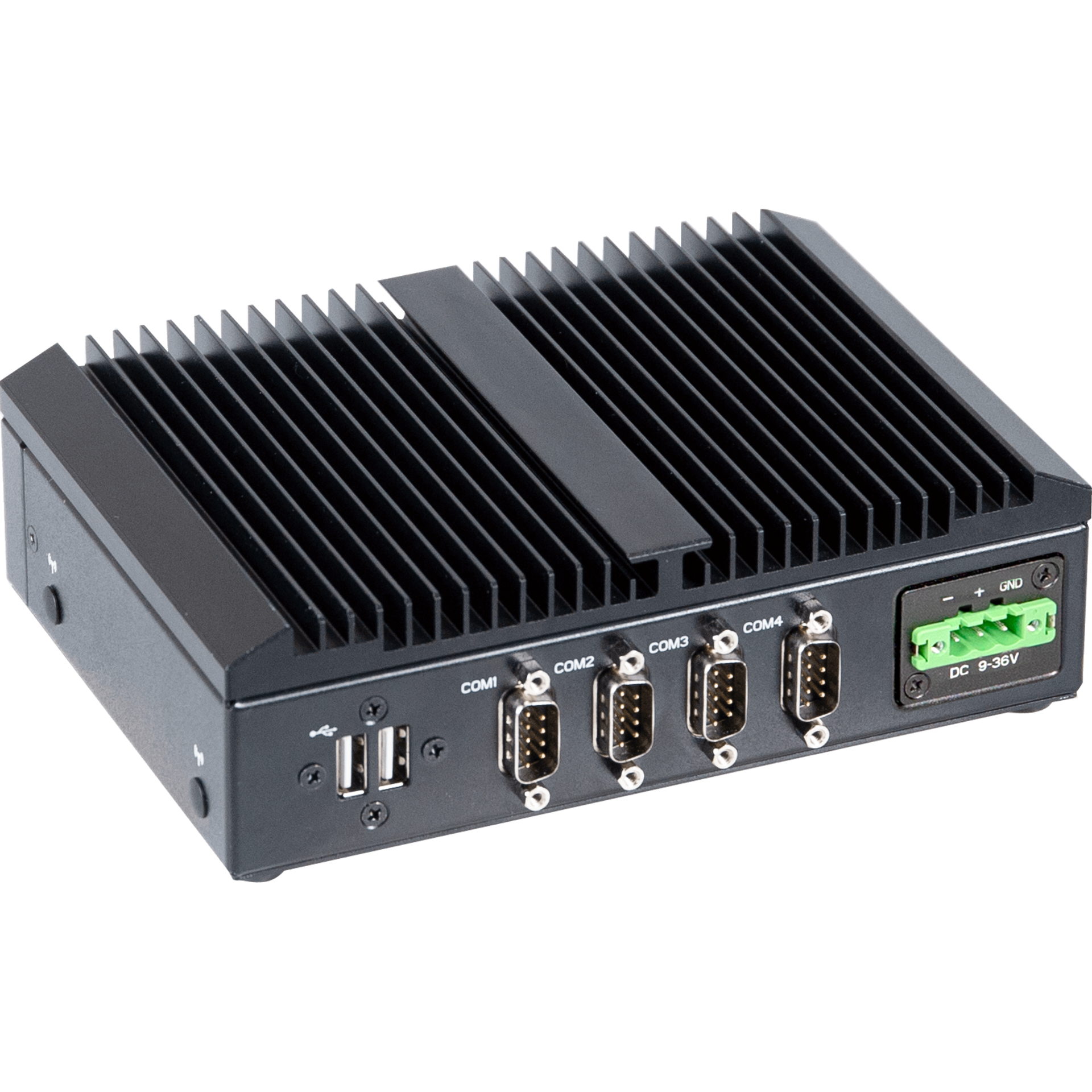

QBiX-Pro-BYTA1900H-A1

Key Features

Industrial system with Intel® Celeron® J1900 Processor



• System Size: 178W x 125D x 52.7H(mm)
• Intel® Celeron® J1900 Processor
• Single Channel DDR3L, 1 x SO-DIMM
• HDMI, D-sub for Dual display
• 2 x GbE LAN Ports

SHARE
fb_share
linkedin_share

QBiX Pro Series of GIGAIPC embedded system is implemented with GIGAIPC QBi Pro (3.5" SubCompact Board).  Its fan-less design reduces the risk of fan failure and maintainance efforts.  The aluminium heatsink and ruggedized chassis enhanced the ability to work in harsh environment.  The Compact size can easily be designed in any applications in limited space, such as factory automation, industrial controller / Surveillance systems and IoT Gateway.  Furthermore, it can be a computing solution dedicated to thin client, POS, KIOSK for commercial market.



QBiX-Pro-BYTA1900H-A1 is powered by Intel® Celeron® J1900 processor, to provide "low power but high performance" for energy-saving requests.  It is designed with full range 9-36V DC power inputs for operating temperature of 0°C~50°C and rich I/O interfaces and expansion M.2 slots to fit in various applications.   The system supports 2.5" HDD/SSD (SATA 3Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.

Specification

Dimension

178W x 125D x 52.7H(mm)

CPU

Intel® Celeron® J1900 Processor
22nm, 4 cores, 4 threads, up to 2.42 GHz
TDP 10W

Chipset

SoC

Memory

1 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB
Support Single Channel DDR3L 1333MHz memory module

Ethernet

2 x GbE LAN Ports (Intel® I211AT)

Graphics Support

Integrated Graphics Processor - Intel® HD Graphics:
1 x HDMI 1.4 port, supporting a maximum resolution of 1920x1200 @60Hz
1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz (with compatible displays)

(2 independent display outputs)

Audio

Realtek® Audio Codec

Storage

1 x 2.5" HDD/SSD (SATA 3Gb/s)

Expansion-Slots

1 x 2280 M.2 M-Key (SATA 3Gb/s)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module

Front I/O

2 x RJ45 LAN Ports
1 x USB 3.2 Gen 1
1 x USB 2.0
1 x HDMI
1 x VGA
1 x Power switch
1 x Power & HDD LED
1 x Headphone Jack

Rear l/O

2 x USB 2.0
2 x COM Ports (RS-232)
1 x COM Port (RS-232/422/485)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x 3-pin Terminal Block

Side I/O

2 x External Antenna Holes (Optional)

Power

+9V~36VDC (Full Range)

Operation Temperature

Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs

Single Box size: 313 x 191 x 95 (mm)

Including:
Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad x 2 (P/N: 25ST3-200052-T5R)
SATA Cable x 1 (P/N: 25CF4-170020-S9R)
Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R)

Mounting

Wall mount (Optional)

Order Information

6BQP1900AMR-SI (Box packing)

Optional Kit

TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R

Technical Support

All Downloads
Select Operating System:

    Drivers

  • VGA

    File Name Version File Size Publish Date Download
    QBiX-Pro-BYTA1900H-A1_Graphic Driver
    10.18.10.5069 118.9 MB 2024-04-01 Download
  • SATA RAID/AHCI

    File Name Version File Size Publish Date Download
    QBiX-Pro-BYTA1900H-A1_ASMedia® ASM1061 Driver
    2.0.9.0001 3.2 MB 2024-04-01 Download
  • Intel® Trusted Execution Engine

    File Name Version File Size Publish Date Download
    QBiX-Pro-BYTA1900H-A1_Hot Fix for Intel® Trusted Execution Technology. Please install before Intel® Trusted Execution Technology driver
    KB2685811 1.456 MB 2024-04-01 Download
    QBiX-Pro-BYTA1900H-A1_Intel® Trusted Execution Technology
    1.1.0.1064 34.3 MB 2024-04-01 Download
  • USB 3.0

    File Name Version File Size Publish Date Download
    QBiX-Pro-BYTA1900H-A1_Intel® USB3.0 Driver
    5.0.4.43 5.3 MB 2024-04-01 Download
  • TPM

    File Name Version File Size Publish Date Download
    QBiX-Pro-BYTA1900H-A1_TPM Driver
    6.1.7601.18518 2.269 MB 2024-04-01 Download
  • Audio

    File Name Version File Size Publish Date Download
    QBiX-Pro-BYTA1900H-A1_Realtek Audio Driver for Win7
    6.0.8967.1 305.2 MB 2024-04-01 Download
    QBiX-Pro-BYTA1900H-A1_Realtek Audio Driver for Win10
    6.0.9282.1 48.3 MB 2024-04-01 Download
  • LAN

    File Name Version File Size Publish Date Download
    QBiX-Pro-BYTA1900H-A1_1G LAN Driver for Win7
    12.13.27.0 539.1 MB 2024-04-01 Download
    QBiX-Pro-BYTA1900H-A1_1G LAN Driver for Win10
    12.15.184.4 539.1 MB 2024-04-01 Download

    User Manuals

  • File Name Version File Size Publish Date Download
    QBiX-Pro-BYTA1900H-A1 user manual
    V10 6.84 MB 2024-04-01 Download

Related Products

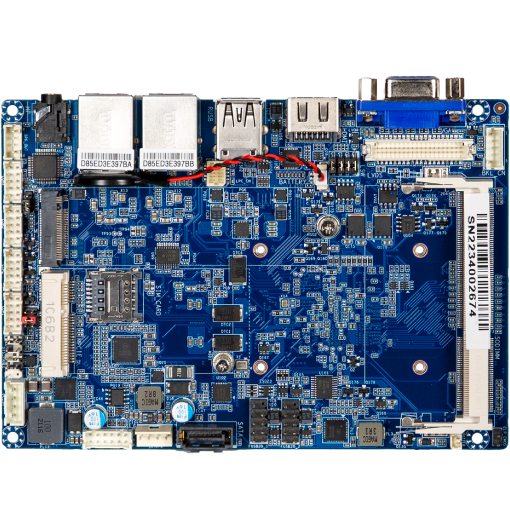

QBiP-1900A
