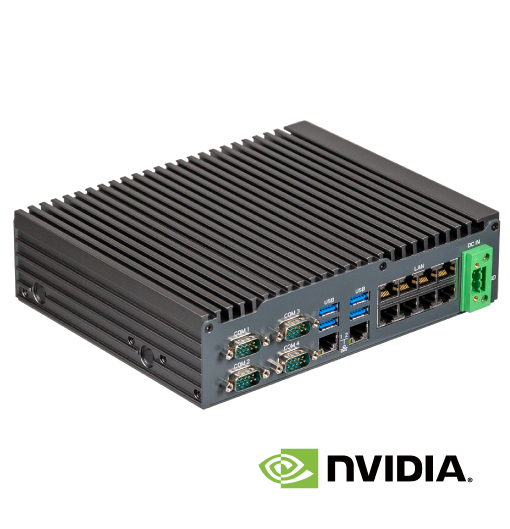

QBiX-Jetson-XavierAHP-A1
Key Features
Industrial system with NVIDIA® Xavier™ NX System-on-Module, including Carmel CPU/ Volta GPU/ 8GB LPDDR4/ 16GB eMMC5.1
• System Size : 210W x 169.8D x 55.2H (mm)
• 6-core NVIDIA® Carmel Arm® v8.2 64-bit Processor
• 384-core NVIDIA® Volta™ GPU with 48 Tensor Cores
• Fan Less system
• 8 x GbE LAN Ports with PoE 15W/Port
• 2 x GbE LAN Ports
QBiX Jetson Series (NVIDIA Jetson Systems)
QBiX-Jetson-XavierAHP-A1
Specification
Dimension
210W x 169.8D x 55.2H (mm)
CPU
6-core NVIDIA® Carmel Arm® v8.2 64-bit CPU
6MB L2 cache + 4MB L3 cache
Memory
8GB 128-bit LPDDR4 DRAM 1600MHz (Module)
Ethernet
8 x GbE LAN Ports with PoE 15W/Port, IEEE802.3af compliant, Total 120W
2 x GbE LAN Ports
Graphics Support
384-core NVIDIA® Volta™ GPU with 48 Tensor Cores
1 x HDMI port, supporting a maximum resolution of 3840x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
Storage
1 x 16GB eMMC 5.1 (Module)
1 x SATA 6Gb/s (Swappable 2.5" HDD/SSD)
Expansion-Slots
1 x 3052 M.2 B-Key
1 x Mini PCIe slot
1 x 2230 M.2 E-Key
1 x SIM slot
Front I/O
1 x Power button with LED
1 x HDD LED
1 x GPIO (12 bits)
1 x DP
1 x HDMI
1 x USB 2.0 Type Micro B
1 x SD slot (Micro SD)
1 x Recovery button
2 x External Antenna Holes (Optional)
Rear l/O
4 x COM Ports (RS-232/422/485)
4 x USB 3.2 Gen 1
8 x GbE LAN Ports with PoE 15W/Port
2 x GbE LAN Ports
1 x 3-pin Terminal Block
Side I/O
4 x External Antenna Holes (Optional)
Power
+12V~54VDC (non PoE)
+54VDC (PoE support)
Operation Temperature
Operating temperature: -20°C to 70°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Packing Content
Carton size: 523 x 297 x 339 (mm)
Packing Capacity: 4pcs
Single Box size: 316 x 281 x 125 (mm)
Including:
54V/180W adapter x 1 (P/N: 25EP4-101807-F3S)
Power cord x 1 (By region)
Screw for 2.5" HDD/SSD, M3x4L x 4 (P/N: 25984G-1C014-S00)
Order Information
9BQNXAVNAMR-SI (Box Packing)
-
