    QBiX-Jetson-NanoAHP-A1 user manual
    V10 2.9 MB 2024-04-01 Download

QBiX Jetson Series (NVIDIA Jetson Systems)

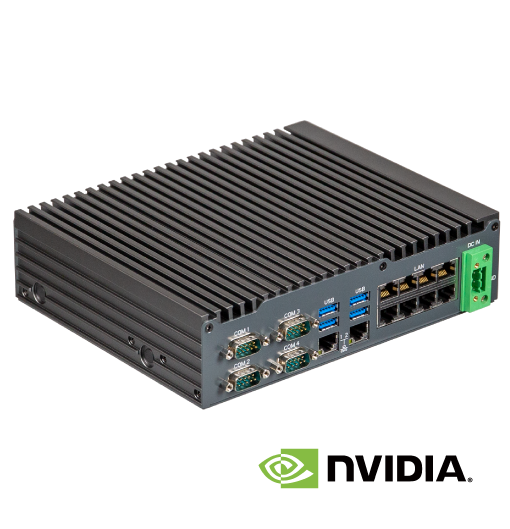

QBiX-Jetson-NanoAHP-A1

Key Features

Industrial system with NVIDIA® Jetson Nano System-on-Module, including ARM® Cortex®-A57/ Maxwell GPU/ 4GB LPDDR4/ 16GB eMMC5.1



• System Size : 210W x 169.8D x 55.2H (mm)
• CPU Quad-core processor ARM® Cortex®-A57 MPcore
• NVIDIA® Maxwell GPU with 128 NVIDIA® CUDA® cores
• Fan-Less sytstem
• 8 x GbE LAN Ports with PoE 15W/Port
• 2 x GbE LAN Ports

SHARE
fb_share
linkedin_share

Specification

Dimension

210W x 169.8D x 55.2H (mm)

CPU

ARM® Cortex® A57 MPCore (Quad-Core) Processor with NEON Technology

Memory

4GB 16-bit LPDDR4 DRAM 1600MHz (Module)

Ethernet

8 x GbE LAN Ports with PoE 15W/Port, IEEE802.3af compliant, Total 120W
2 x GbE LAN Ports

Graphics Support

NVIDIA® Maxwell™ architecture with 128 NVIDIA® CUDA® cores

1 x HDMI port, supporting a maximum resolution of 3840x2160 @60Hz
1 x DP port, supporting a maximum resolution of 2500x1600 @60H

Storage

1 x 16GB eMMC 5.1 (Module)
1 x SATA 6Gb/s (Swappable 2.5" HDD/SSD)

Expansion-Slots

1 x 3052 M.2 B-Key
1 x Mini PCIe slot
1 x 2230 M.2 E-Key
1 x SIM slot

Front I/O

1 x Power button with LED
1 x HDD LED
1 x GPIO (12 bits)
1 x DP
1 x HDMI
1 x USB 2.0 Type Micro B
1 x SD slot (Micro SD)
1 x Recovery button
2 x External Antenna Holes (Optional)

Rear l/O

4 x COM Ports (RS-232/422/485)
4 x USB 3.2 Gen 1
8 x GbE LAN Ports with PoE 15W/Port
2 x GbE LAN Ports
1 x 3-pin Terminal Block

Side I/O

4 x External Antenna Holes (Optional)

Power

+12V~54VDC (non PoE)
+54VDC (PoE support)

Operation Temperature

Operating temperature: -20°C to 70°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Packing Content

Carton size: 523 x 297 x 339 (mm)
Packing Capacity: 4pcs

Single Box size: 316 x 281 x 125 (mm)

Including:
54V/180W adapter x 1 (P/N: 25EP4-101807-F3S)
Power cord x 1 (By region)
Screw for 2.5" HDD/SSD, M3x4L x 4 (P/N: 25984G-1C014-S00)

Order Information

9BQNNANOAMR-SI (Box Packing)

Technical Support

All Downloads
    User Manuals
  • File Name Version File Size Publish Date Download
    QBiX-Jetson-NanoAHP-A1 user manual
    V10 2.9 MB 2024-04-01 Download
