QBiX Jumbo Series (High Performance Modular IPC)

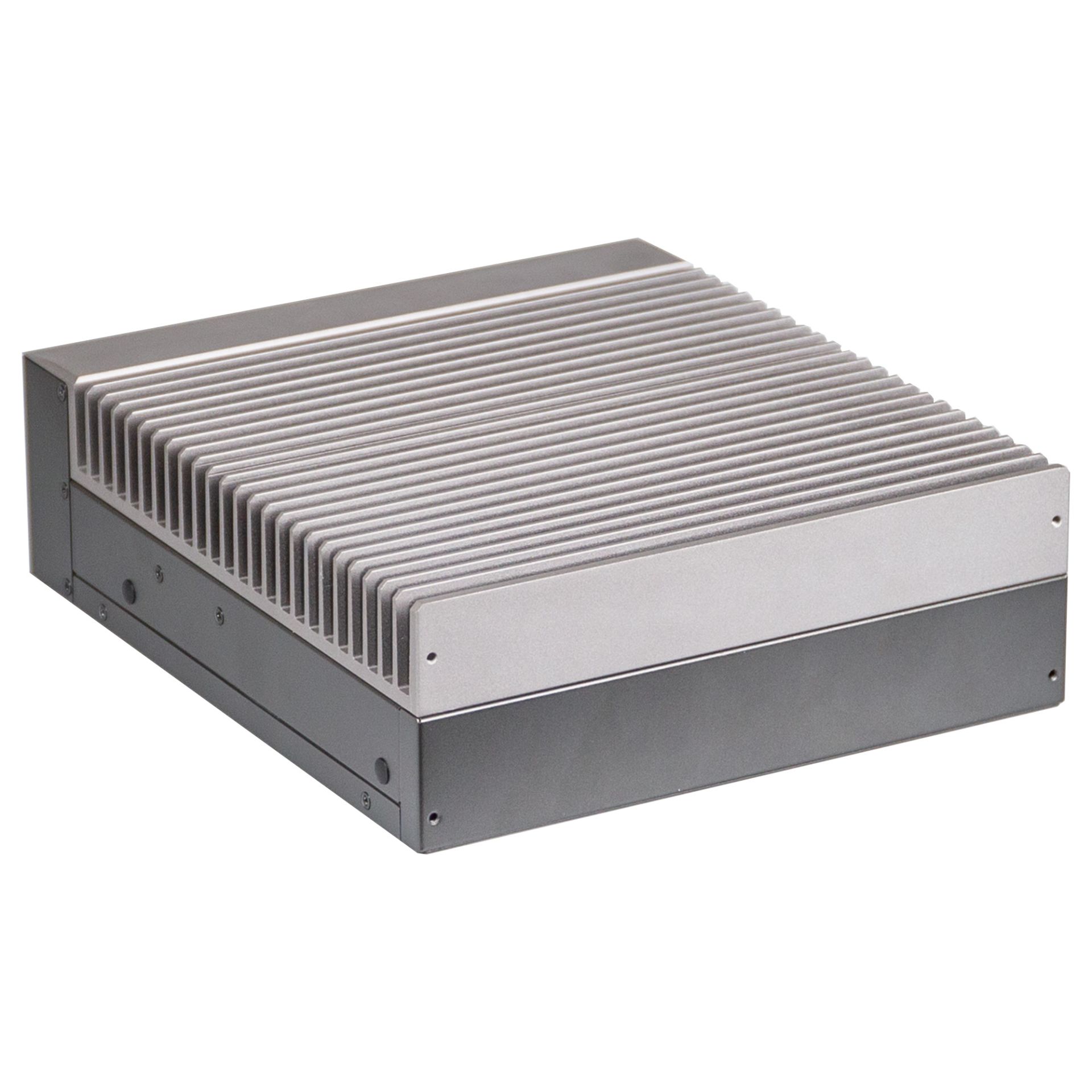

QBiX-JMB-CFLA310H-A1

Key Features

Industrial system with Intel® H310 Chipset, support for Intel® 9th/8th Gen Processor / Display Port/ DVI-D port/ VGA port/ USB 3.2 Gen 1/ USB 2.0/COM Ports /4 GbE LAN Ports /M.2 slots



•System Size : 224W x 257D x 77H (mm)
•Support Intel® 9th/8th Gen Processor
•Dual Channel DDR4, 2 x SO-DIMMs
•DVI-D, VGA & DP ports for multiple display
•4 x GbE LAN Ports
•4 x COM Ports
•8 x USB Ports

SHARE
fb_share
linkedin_share

QBiX-JMB-CFLA310H-A1 is a high-performance fanless embedded computer featured with Intel® H310 Express Chipset and supported Intel® 9th/8th gen Core™ i processor in LGA1151 package, to provide powerful computing and excellent graphic performance.  It's mainly designed for edge computing applications, machine vision, robotic image detection, machine automation, surveillance system in factory, logistics and even healthcare systems, to increase production efficiency.



In addition, it offers 1 x Display Port, 1 x DVI-D Port and 1 x VGA Port for two independent display outputs, rich I/O interface of 4 x USB 3.2 Gen 1, 4 x USB 2.0, 2 x switchable COM Ports (RS-232/422/485 & RI/5V/12V), 2 x RS232 COM Ports, 4 GbE LAN Ports and expantion M.2 slots to connect multiple devices and implement industrial applications.  This system supports full range 12-48V DC power inputs for operating temperature of -20°C~50°C .   The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 3 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.



With an optional riser card support, GIGAIPC offers another Machine Vision Solution : QBiX-JMB-CFLA310HG-A1, the integration system of QBiX-JMB-CFLA310H-A1 and discrete GFX card.

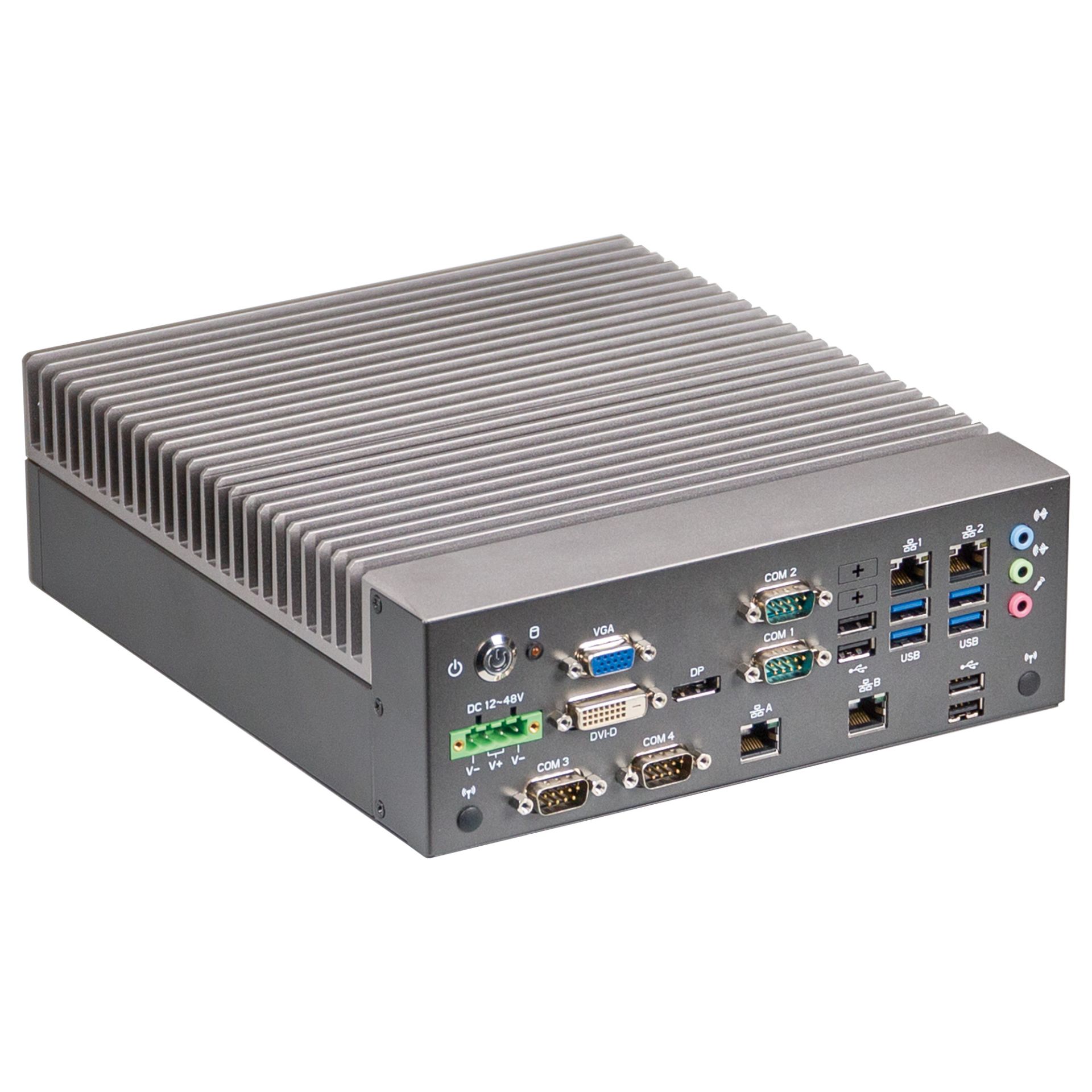

                             QBiX-JMB-CFLA310H-A1                                                                                                QBiX-JMB-CFLA310HG-A1

Specification

Dimension

224W x 257D x 77H(mm)

CPU

Support for 9th/8th Generation
Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package
TDP under 65W

Chipset

Intel® H310 Express Chipset

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2666/2400 MHz memory modules

Ethernet

1 x GbE LAN Port (Intel® I219V)
3 x GbE LAN Ports (Intel® I211AT)

Graphics Support

Integrated Graphics Processor - Intel® HD Graphics support:
1 x DP port, supporting a maximum resolution of 4096x2160 @30Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1080 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz

(2 independent display outputs)

Audio

Realtek® Audio Codec

Storage

3 x 2.5" HDD/SSD (SATA 6Gb/s)

Expansion-Slots

1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module

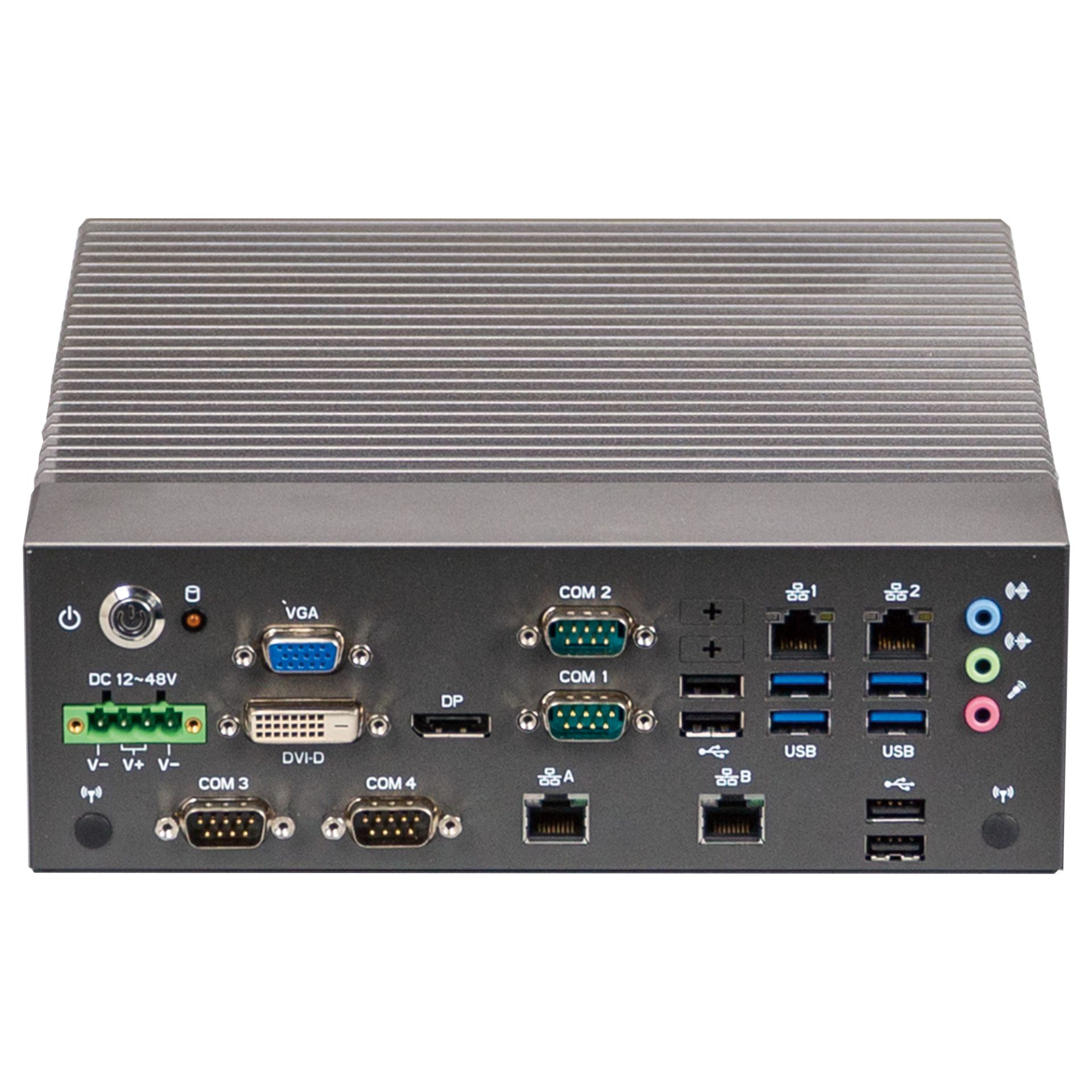

Front I/O

1 x Power Switch/Power/HDD LED
3 x Audio Jacks (Line in, Line out, Mic in)
1 x Display port
1 x DVI-D
1 x VGA
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
2 x COM Ports (RS-232)
4 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
4 x USB 2.0
1 x 4-pin Terminal Block
2 x External Antenna Holes (Optional)

Power

+12V~48VDC (Full Range)

Operation Temperature

Operating temperature: -20°C to 50°C (CPU 65W TDP)
Operating temperature: -20°C to 60°C (CPU 35W TDP)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 300 x 351 x 166 (mm)
Packing Capacity: 1
Weight: Approx. 4.7kg

Including:
Screw M3x4L x 12 (P/N: 25984G-1C014-S00)
Terminal Blocks Male Plug x 1 (P/N: 25IO0-2ESDV0-D2R)

Order Information

9BQJH310AMR-SI (Box packing)


(Built in Components: Please contact with your sales representative for more information
or e-mailed to : sales@gigaipc.com)

Optional Kit

TPM 2.0 module P/N: 9CTM000NR-00

Technical Support

All Downloads
Select Operating System:
    Drivers
  • VGA
    File Name Version File Size Publish Date Download
    QBiX-JMB-CFLA310H-A1_Graphic Driver
    26.20.100.6951 333.1 MB 2024-04-01 Download
  • Intel® Management Engine
    File Name Version File Size Publish Date Download
    QBiX-JMB-CFLA310H-A1_Intel® Management Engine Driver
    1914.12.0.1256 83.03 MB 2024-04-01 Download
  • Audio
    File Name Version File Size Publish Date Download
    QBiX-JMB-CFLA310H-A1_Realtek Audio Driver
    6.0.8787.1 265.8 MB 2024-04-01 Download
  • LAN
    File Name Version File Size Publish Date Download
    QBiX-JMB-CFLA310H-A1_1G LAN Driver (I219V)
    12.18.9.3 539.2 MB 2024-04-01 Download
  • Chipset
    File Name Version File Size Publish Date Download
    QBiX-JMB-CFLA310H-A1_Chipset Driver
    10.1.16.7 3.243 MB 2024-04-01 Download
    User Manuals
  • File Name Version File Size Publish Date Download
    QBiX-JMB-CFLA310H-A1 user manual
    V10 4.8 MB 2024-04-01 Download
