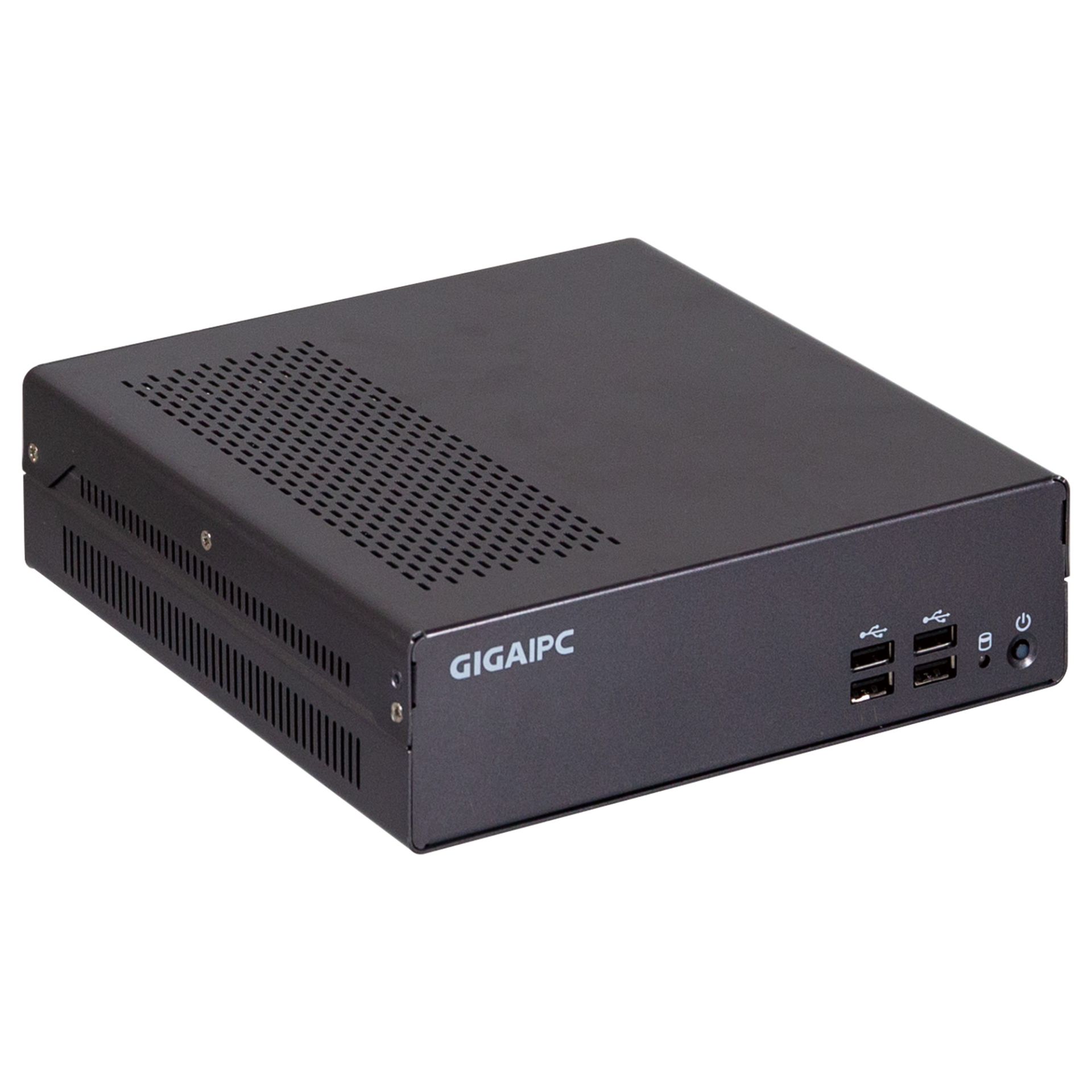

QBiX Pro Series (3.5" Embedded Systems)

QBiX-ITX-H310A-A1

Key Features

Embedded system with Intel® H420E / H310  Chipset, support 10th/9th/8th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 4 x COM, 8 x USB, 2 x SATA 6Gb/s



• Support 10th/9th/8th Generation Intel® Core™ Processors
• Intel® H420E / H310 Express Chipset
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• HDMI, Display Port, VGA, eDP ports for multiple display
• 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
• 2 x COM Ports (RS-232)

SHARE
fb_share
linkedin_share

QBiX Pro Series (3.5" Embedded Systems)

QBiX-ITX-H310A-A1

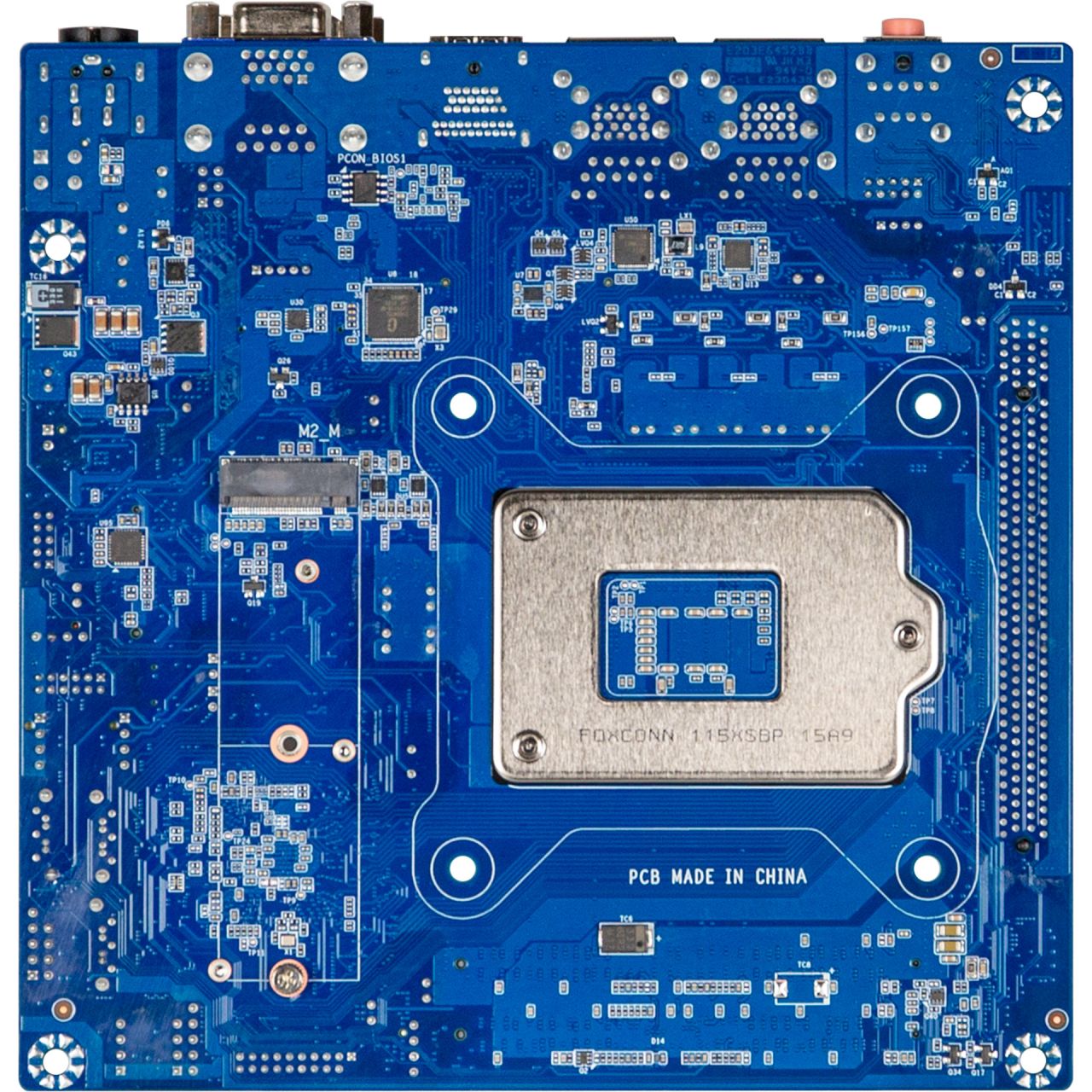

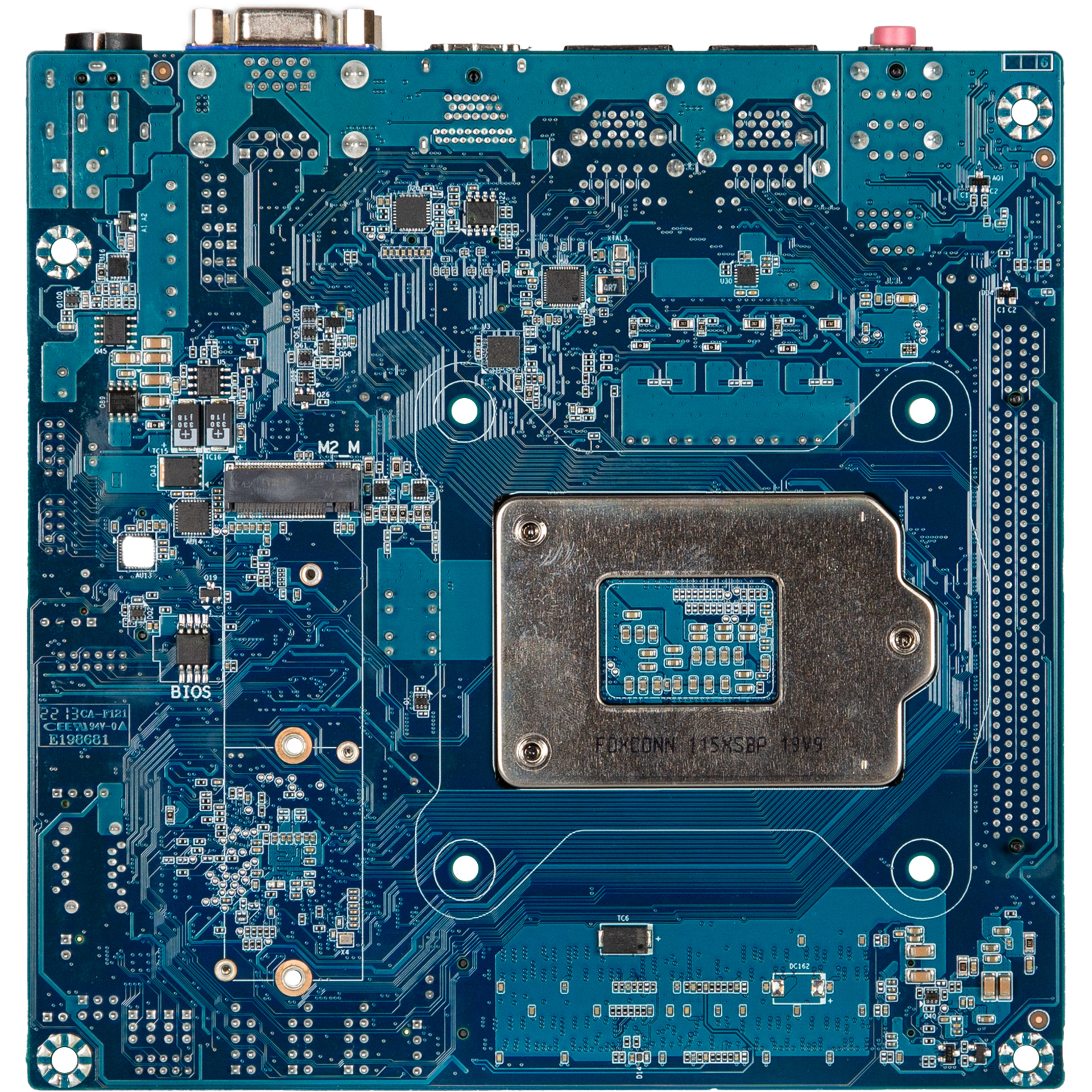

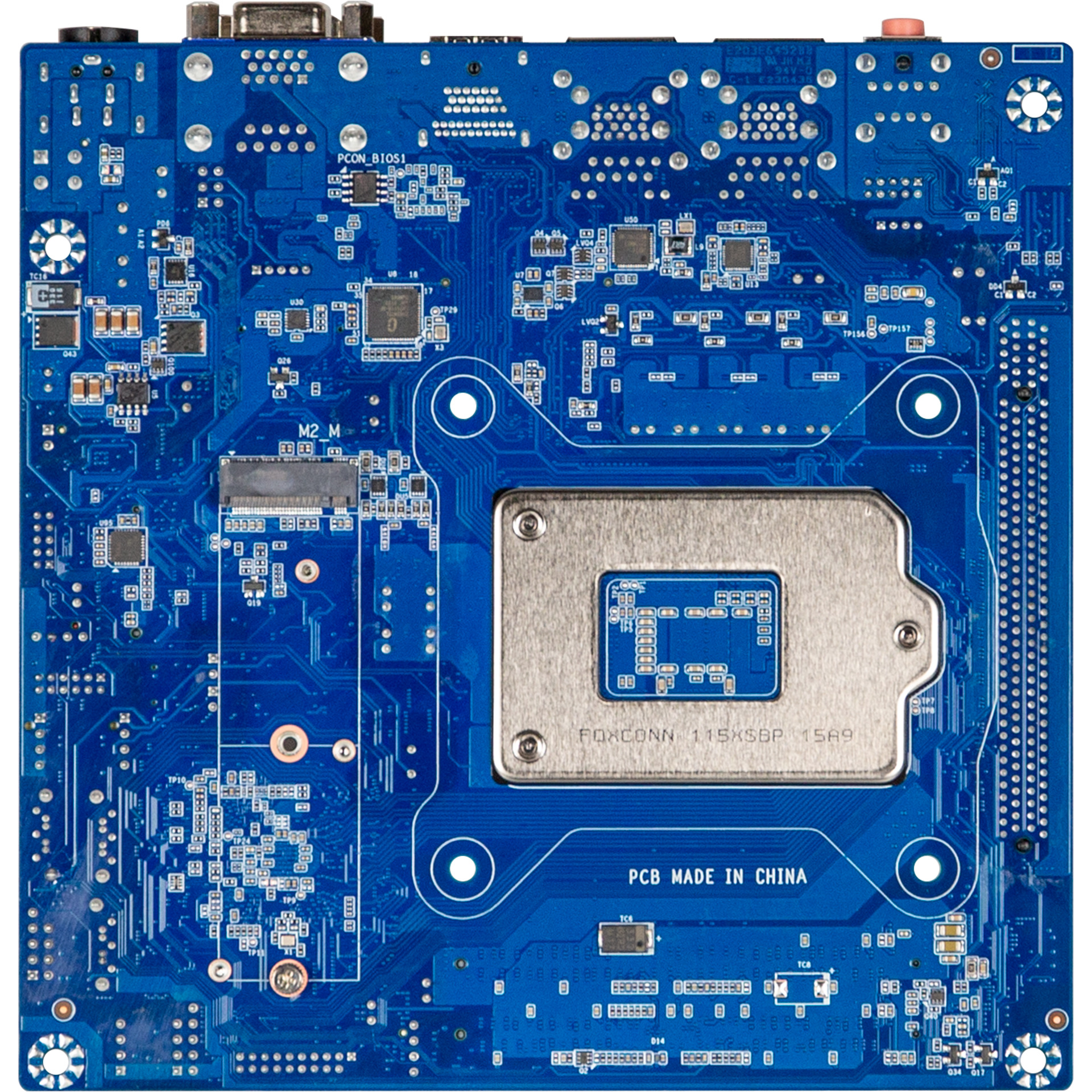

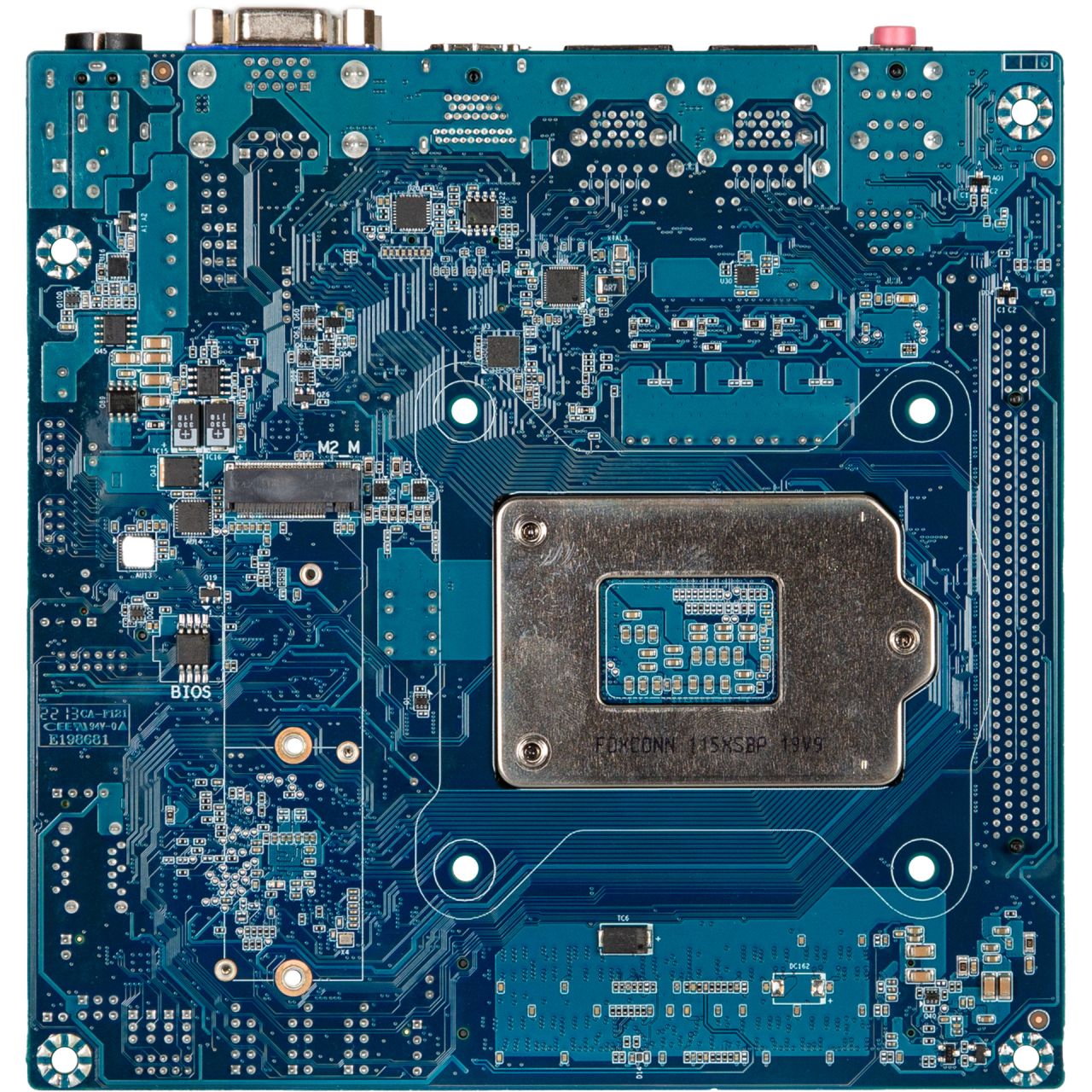

Specification

Dimension

210W x 200D x 58H (mm)

CPU

mITX-H310A :
Support for 9th/8th Generation
Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package
TDP under 65W

mITX-H42EA :
Support for 10th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1200 package
TDP under 65W

Socket

1 x LGA 1151

Chipset

mITX-H310A :
Intel® H310 Express Chipset

mITX-H42EA :
Intel® H420E Express Chipset

Memory

mITX-H310A :
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2666/2400 MHz memory modules

mITX-H42EA :
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 2933/2666 MHz memory modules

Ethernet

mITX-H310A :
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)

mITX-H42EA :
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)

Video

mITX-H310A :
Integrated Graphics Processor - depends on CPU:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
1 x eDP port, supporting a maximum resolution of 1920x1080 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
* eDP port is alternative with LVDS port, only one can be worked at the same time

(2 independent display outputs)

mITX-H42EA :
Integrated Graphics Processor - depends on CPU:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP 1.4 port, supporting a maximum resolution of 4096x2304 @60Hz
1 x D-Sub port, supporting a maximum resolution of 1920x1200 @60Hz
1 x eDP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
* eDP connector is alternative with LVDS port, only one can be worked at the same time

(2 independent display outputs)

Audio

Realtek® Audio Codec

Storage

mITX-H310A :
2 x SATA 6Gb/s Ports

mITX-H42EA :
3 x SATA 6Gb/s Ports

Expansion-Slots

1 x PCIe x16 (Gen3 x16)
1 x 2280/2242 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)

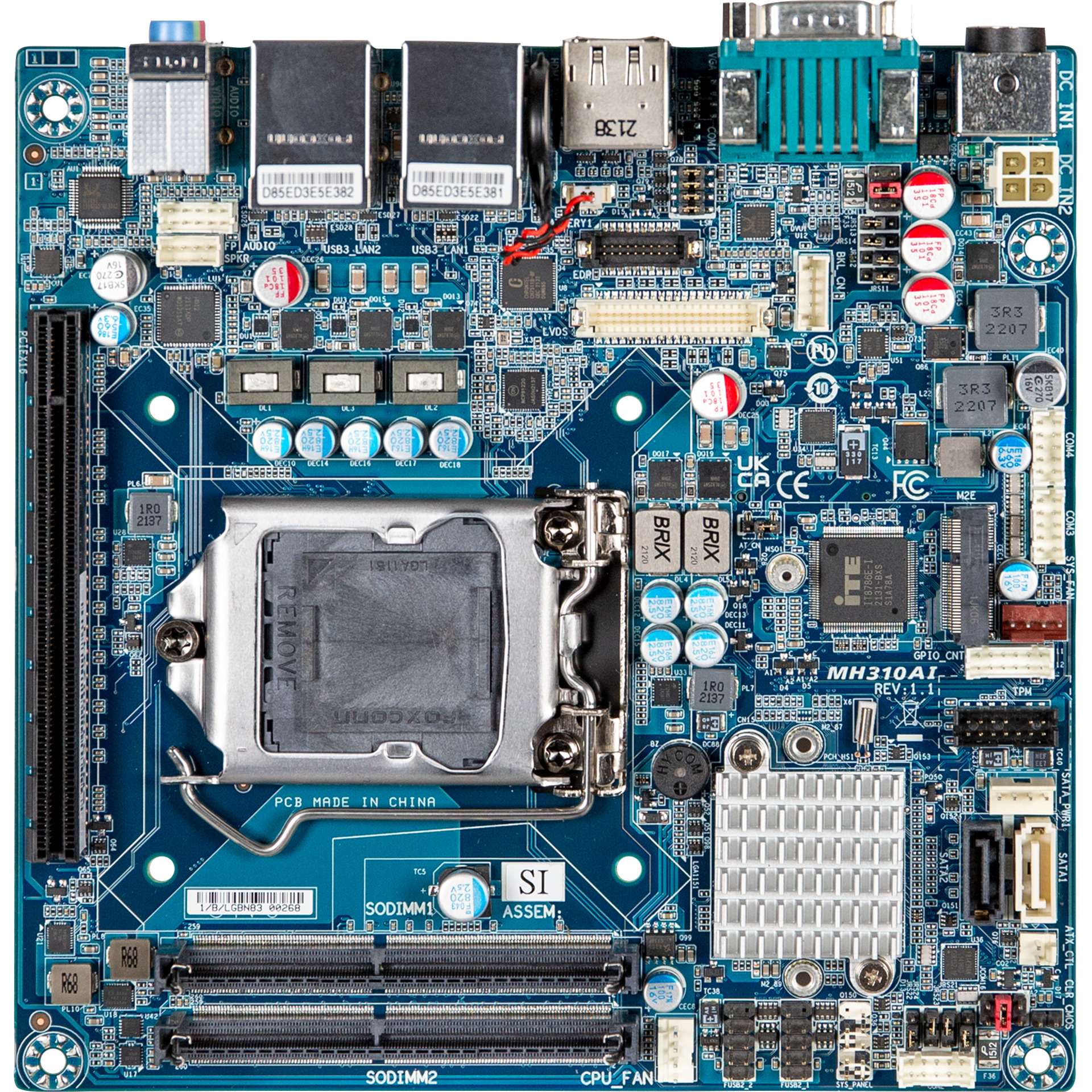

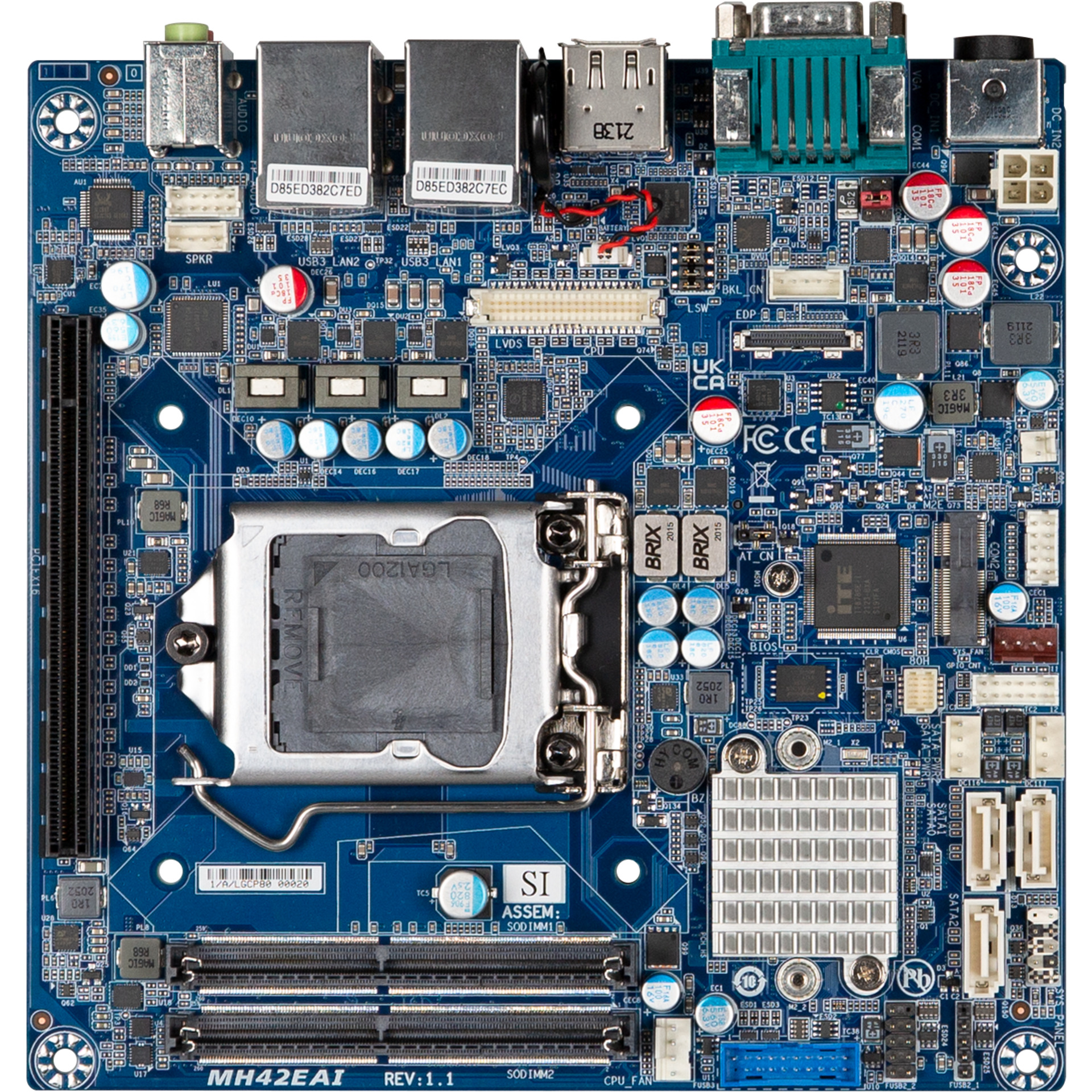

Internal I/O

mITX-H310A :
1 x 4-pin ATX main power connector
1 x SATA power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
2 x COM headers (RS-232)
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x GPIO (8-bits) & SMBus header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer
1 x ATX Control header
1 x AT/ATX mode select jumper

mITX-H42EA :
1 x 4-pin ATX main power connector
2 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
3 x USB 2.0 headers
2 x USB 3.2 Gen 1 headers
1 x COM header (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer
1 x ATX Control header
1 x AT/ATX mode select jumper

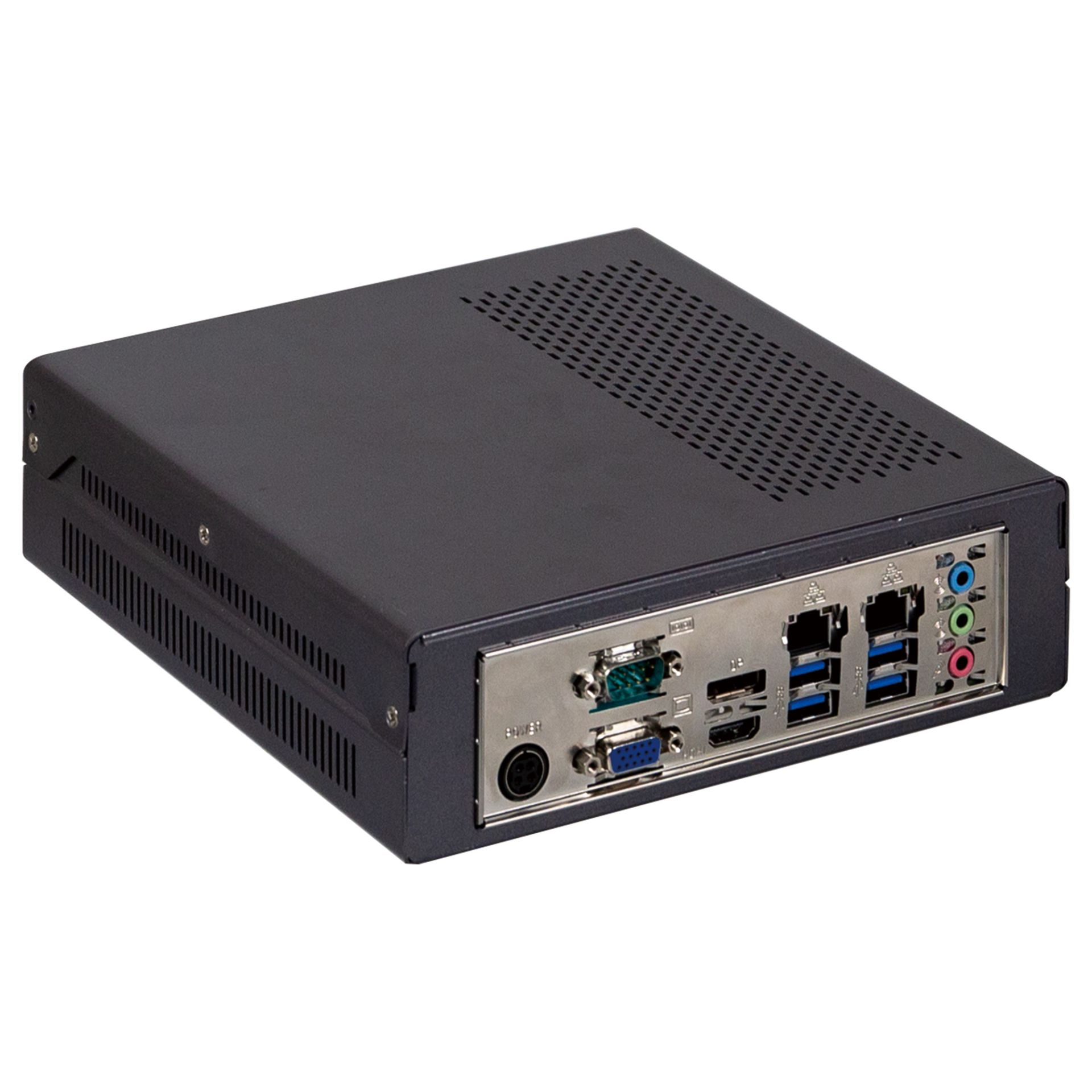

Rear l/O

mITX-H310A :
3 x Audio Jacks (Line in, Line out, Mic in)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x Display Port
1 x VGA
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V/+24VDC)
mITX-H42EA :
2 x Audio Jacks (Line out, Mic in)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x Display Port
1 x D-Sub
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V~+24VDC)

TPM

1 x TPM header

OS Compatibility

Windows 10 (x64)

Operating Properties

Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)

Packing Content

Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs

Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.6kg

mITX-H310A, Including:
IO Shield x 1 (P/N: 12AIO-MDH114-00R)
SATA power Cable x 1 (P/N: 25CRI-300B01-K1R)
Screw I Head M2.0*L3.5*D5.0 x 1 (P/N: 25KSG-130039-S0R)
Screw Stand Off 12L15 x 1 (P/N: 12KSF-F10303-20R)
Screw I Head M2x3L x 1 (P/N: 25KSG-130032-S0R)

mITX-H42EA, Including:
IO Shield x 1 (12AIO-MQ47EA-10R)
SATA power Cable x 2 (25CRI-300B01-K1R)

Optional Kit

CPU Cooler : 25ST0-039520-Y0R
CPU Cooler Backplate : 12KRH-0A1155-30R
TPM 2.0 module: 9CTM000NR-00
TPM Cable: 25CRZ-100600-S9R
