QBiX Series (10x10 Embedded Systems)
QBiX-GLKA5005H-A1
- EOL
Key Features
Industrial system with Intel® Pentium® Silver J5005 Processor / HDMI & VGA output / USB 3.2 Gen 1 / COM Port (RS-232)
• System Size: 118W x 109.4D x 54.4H (mm)
• Intel® Pentium® Silver J5005 Processor
• 1 x COM Port (RS-232)
• Single Channel DDR4, 1 x SO-DIMM
• HDMI, VGA
• 1 x GbE LAN Port
QBiX Series (10x10 Embedded Systems)
QBiX-GLKA5005H-A1

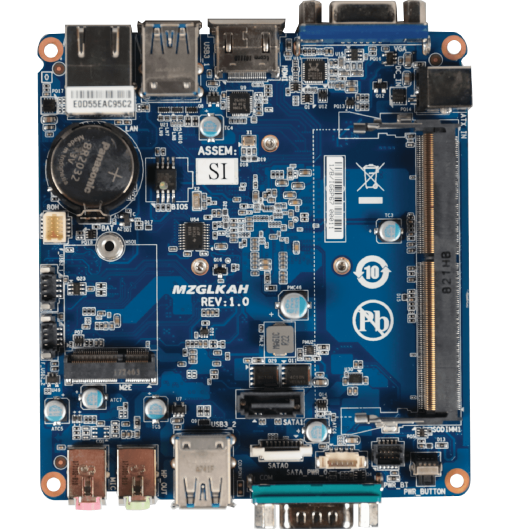

QBiX Series of GIGAIPC embedded system is implemented with GIGAIPC QBi (10x10 Motherboards). It's designed as palm-sized, fan-less and ruggedized computing solution dedicated to thin client, POS, KIOSK, smart factory automation, industrial controller system and space-limited applications, with VESA mout 75x75 and 100x100 for options.
QBiX-GLKA5005H-A1 is powered by Intel® Pentium® J5005 Processor to provide "low power but high performance" feature. It is designed with full range +12-19V DC power inputs for operating temperature of 0°C~50°C. The system supports 2.5" HDD/SSD (SATA 6Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.
It's available with rich features of both HDMI & VGA output, 4 x USB 3.2 Gen 1, 1 x RS-232 COM Port to work with different peripherals of devices and M.2 2230 E-Key for expansion.
Specification
Dimension
118W x 109.4D x 54.4H(mm)
CPU
Intel® Pentium® Silver J5005 Processor
14nm, 4 cores, 4 threads, up to 2.8 GHz
TDP 10W
Chipset
SoC
Memory
1 x DDR4 SO-DIMM socket, Max. Capacity 8 GB
Support Single Channel DDR4 2400 MHz memory modules
Ethernet
1 x GbE LAN Port (Realtek® RTL8111HS)
Graphics Support
Integrated Graphics Processor - Intel® UHD Graphics 605:
1 x HDMI 1.4b port, supporting a maximum resolution of 4096x2160 @30Hz
1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz (with compatible displays)
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2230 M.2 E-Key (WiFi/BT)
Front I/O
2 x USB 3.2 Gen 1
1 x COM Port (RS-232)
1 x Headphone Jack
1 x Microphone Jack
1 x Power button with LED
Rear l/O
1 x RJ45 LAN Port
2 x USB 3.2 Gen 1
1 x HDMI
1 x VGA
2 x External Antenna Holes (Optional)
Side I/O
1 x DC-Jack
Power
+12V~19VDC (Adapter 19V/65W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 416 x 409 x 296 (mm)
Packing Capacity: 6pcs
Single Box size: 258 x 191 x 130 (mm)
Including:
Power Cord 3Cx18AWG SVT US x 1 (P/N: 25CP0-007001-Q0R)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065M-F3S)
VESA_RS_BKT_KP x 1 (P/N: 25HB1-TPL021-S8R)
VESA-SCREW-ASM x 1 (P/N: 25KSD-000001-S4R)
Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad HDD x 2 (P/N: 25ST3-200047-T5R)
FFC SATA Cable x 1 (P/N: 25CFE-100004-J3R)
Order Information
6BCGAAMR-SI (Box packing)
Optional Kit
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
