Key Features
Industrial system with Intel® Core™ i3-1115G4E Processor/ Fanless Design / Dual Channel DDR4 up to 64 GB/ 2 x HDMI
• System Size : 210.36W x 165D x 67H (mm)
• Intel® Core™ i3-1115G4E Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x HDMI for Dual display
• 4 x GbE LAN Ports with PoE 15W/Port
• 2 x GbE LAN Ports
QBiX Expert Series (Surveillance Fanless Systems)
QBiX-Expert-TGLA1115G4EH-A1
HOME
Products
Embedded Systems
QBiX Expert Series (Surveillance Fanless Systems)
QBiX-Expert-TGLA1115G4EH-A1
Specification
Dimension
210.36W x 165D x 67H(mm)
CPU
Intel® Core™ i3-1115G4E Processor
10nm SuperFin, 2 cores, 4 threads, up to 3.90 GHz
Chipset
SoC
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
4 x PoE GbE LAN Ports (Intel® I211AT)
Graphics Support
Integrated Graphics Processor - Intel® Iris Xe Graphics:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x Swappable 2.5" HDD/SSD (SATA 6Gb/s)

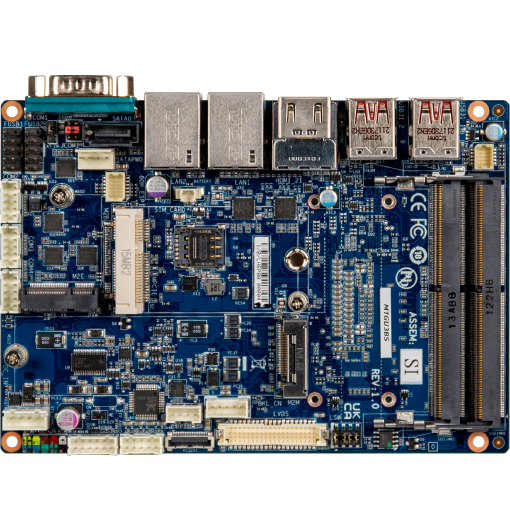

Expansion-Slots
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot

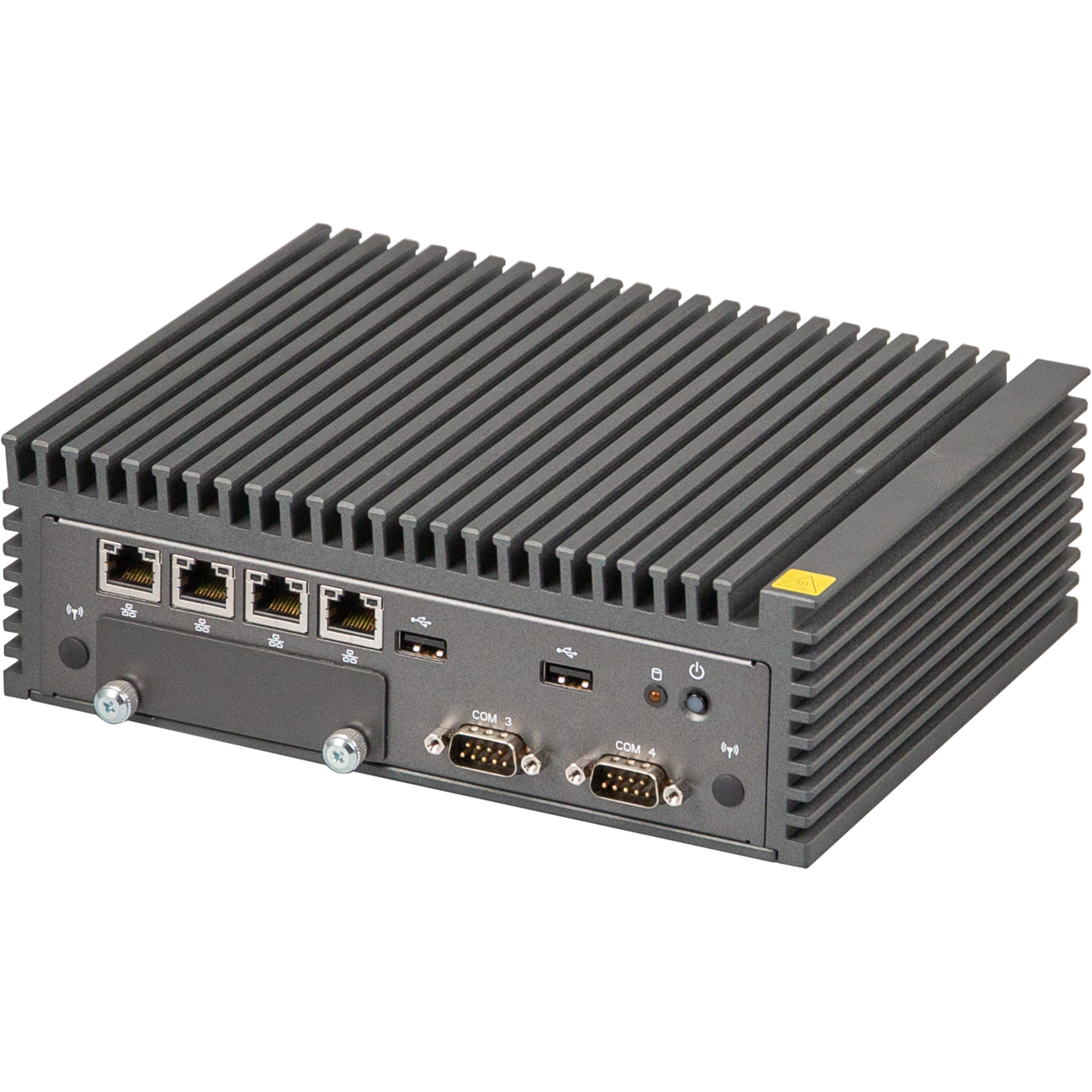

Front I/O
4 x RJ45 LAN Ports with PoE
2 x USB 2.0
1 x Power button with LED
1 x HDD LED
2 x COM Ports (RS-232/422/485)
2 x External Antenna Holes (Optional)

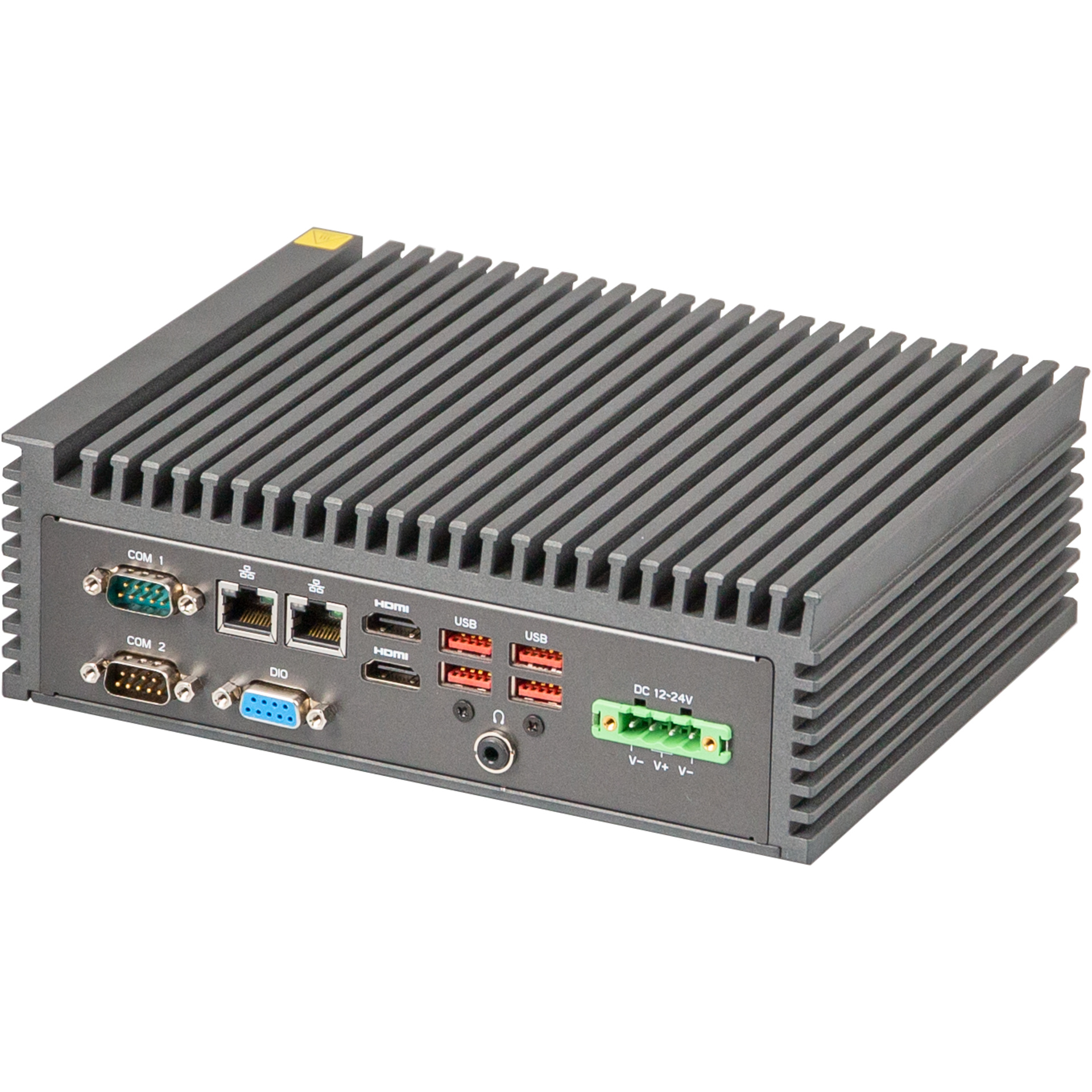

Rear l/O
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x COM Port (RS-232/422/485)
1 x GPIO (8 bits)
1 x Headphone Jack
1 x 4-pin Terminal Block
Power
+12~24VDC / 13A (PoE support)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 572 x 321 x 372 (mm)
Packing Capacity: 4pcs
Single Box size: 300 x 276 x 170 (mm)
Single Box weight: Approx. 4.0kg
Including:
Terminal Blocks Male Plug x 1 (P/N: 25IO0-2ESDV0-D2R)
Screw For 2.5" HDD M3x4L x 8 (P/N: 25984G-1C014-S00)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
Mounting
Wall mount (Optional)
Order Information
6BQE1115AMR-SI (Box packing)
Select Operating System：
-
Intel® Serial IO
