QBi Pro (3.5" SBC)

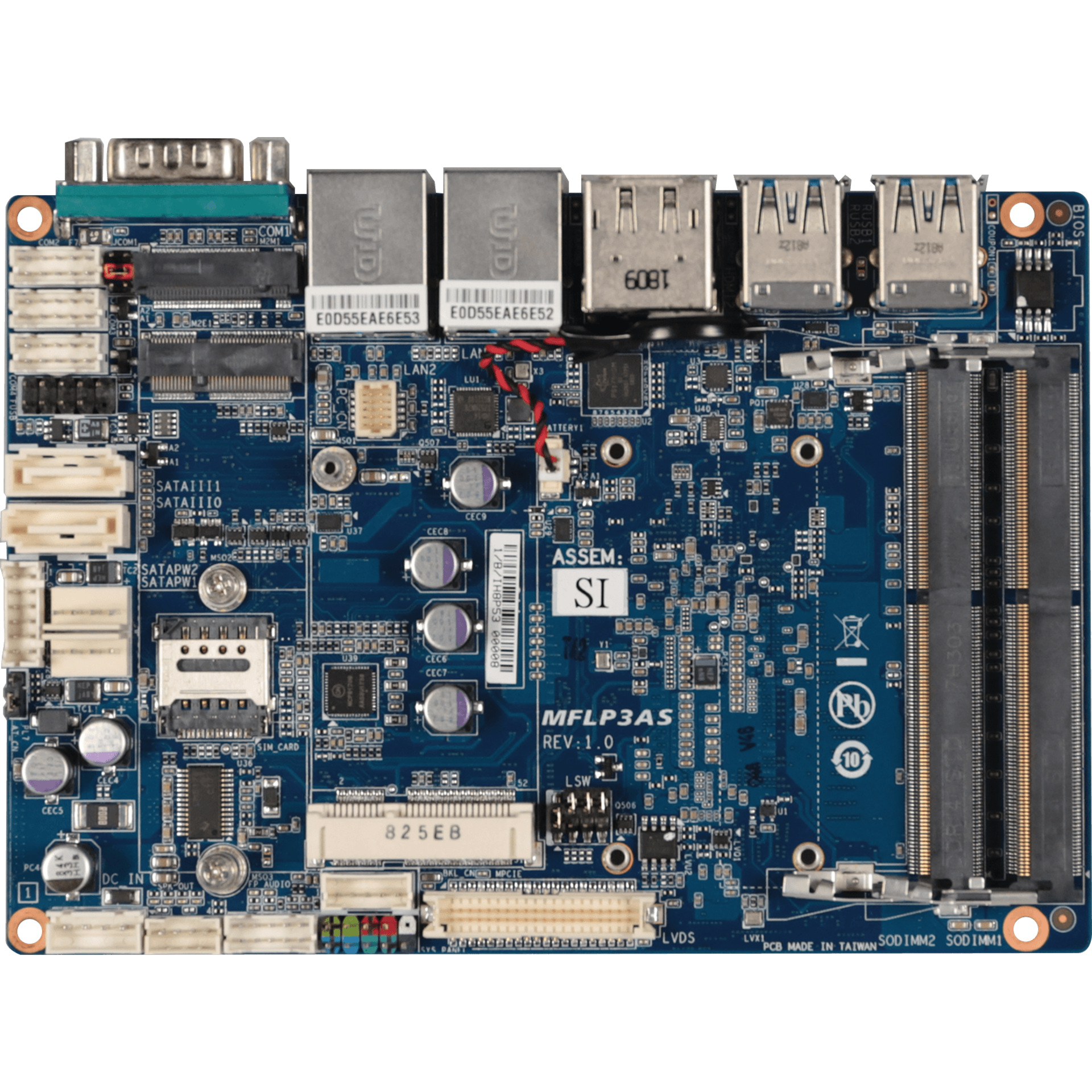

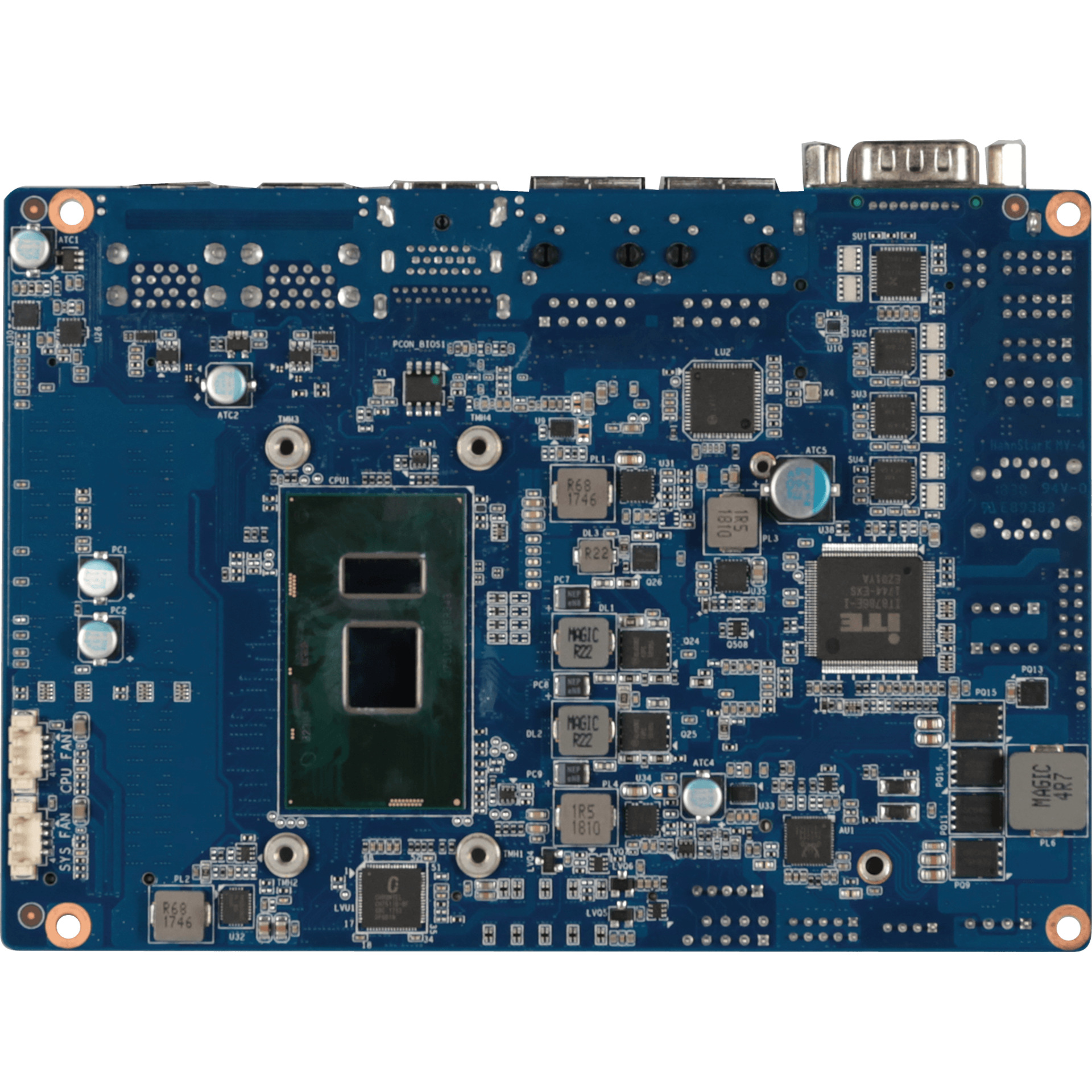

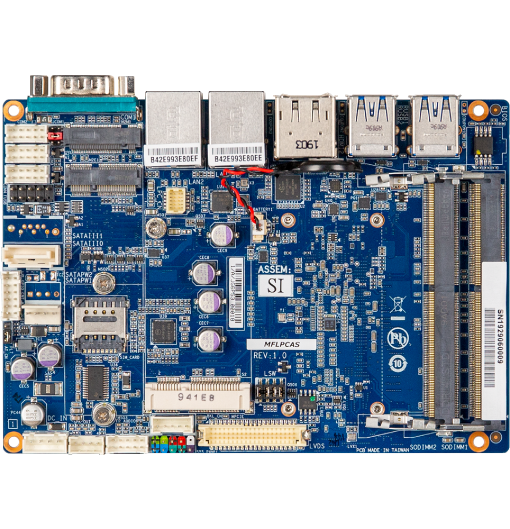

QBiP-7600A
Key Features
3.5” SubCompact Board with 7th Generation Intel® Core™ i7-7600U Processor, Dual Channel DDR4 memory, 4 x COM, 2 x SATA 6Gb/s, 6 x USB
• 3.5" SBC
• Intel® Core™ i7-7600U Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• 2 x SATA 6Gb/s Ports
• Ultra-Fast M.2 with PCIe Gen3 x4 interface
• HDMI2.0, Display Port, LVDS ports for multiple display
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 3 x COM Ports (RS-232)
QBi Pro (3.5" SBC)
QBiP-7600A
Specification
Form Factor
3.5" SBC
146W x 101.7D(mm)
CPU
Intel® Core™ i7-7600U Processor
14nm, 2 cores, 4 threads, up to 3.9 GHz
vPro support, TDP 15W
3 MB SmartCache
Socket
1 x FCBGA 1356
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2133 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219LM and Intel® I211AT)
Video
Integrated Graphics Processor - Intel® HD Graphics 620:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
(3 independent display outputs)
Audio
Realtek® Audio Codec
Storage
2 x SATA 6Gb/s Ports (RAID 0/1/5)
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
Internal I/O
1 x 4-pin box power connector (+9V~36VDC)
2 x SATA Power headers
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
2 x USB 2.0 headers
3 x COM headers (RS-232)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header

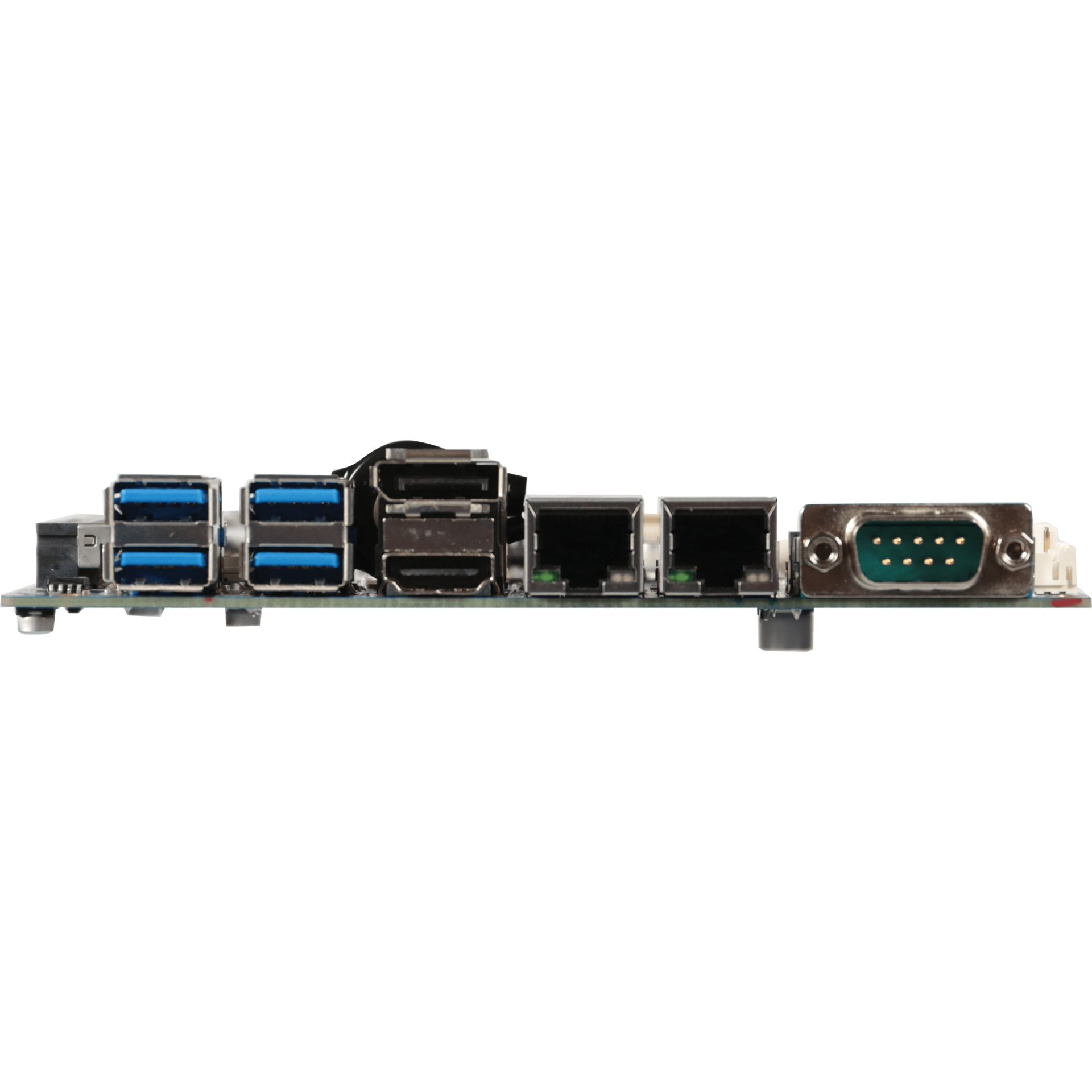

Rear l/O
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x Display Port
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
TPM
1 x TPM header
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Including:
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Order Information
9MFLP7BSMR-SI (Box Packing)
Optional Kit
Fanless Heatsink P/N: 25ST1-153108-A7R
Fansink P/N: 12SF2-01A073-00R
Heat spreader P/N: 25ST5-CKAC00-A8R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
