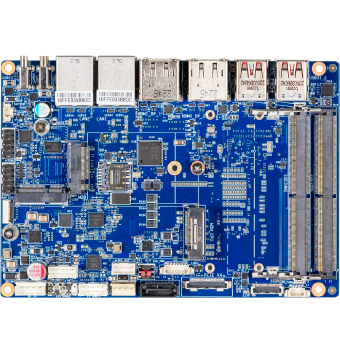

QBi Pro (3.5" SBC)
QBiP-1360A
- New
Key Features
3.5" SubCompact Board with 13th Generation Intel® Core™ i7-1360P Processor, Dual Channel DDR5 memory, 1 x COM, 1 x SATA 6Gb/s, 4 x USB 3.2 Type A Gen 2x1, 2 x USB 3.2 Type C Gen 2x1, 4 x USB 2.0
• 3.5" SBC
• Intel® Core™ i7-1360P Processor
• Dual Channel DDR5, 2 x SO-DIMMs
• 2 x 2.5GbE LAN Ports
• 1 x SATA 6Gb/s Port
• Ultra-Fast M.2 with PCIe Gen4 x4 interface
• 2 x HDMI, 2 x DP, eDP ports for multiple display
• 1 x COM Port (RS-232 & RI/5V/12V)
• 4 x USB 3.2 Type A Gen 2x1
• 2 x USB 3.2 Type C Gen 2x1
QBi Pro (3.5" SBC)
QBiP-1360A
Specification
Form Factor
3.5" SBC
146W x 101.7D(mm)
CPU
Intel® Core™ i7-1360P Processor
Intel 7, 12 cores, 16 threads, up to 5.0 GHz
TDP 28W
18 MB Smart Cache
Socket
1 x FCBGA1744
Memory
2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR5 5200 MHz memory modules
Ethernet
2 x 2.5GbE LAN Ports (Intel® I226V)
Video
Integrated Graphics Processor - Intel® Iris® Xe Graphics eligible:
2 x HDMI 2.1 ports, supporting a maximum resolution of 4096x2160 @60Hz
2 x DP 1.4 ports, supporting a maximum resolution of 7680x4320 @30Hz
1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680x4320 @30Hz
1 x eDP port, supporting a maximum resolution of 4096x2160 @60Hz
(4 independent display outputs)
Audio
Realtek® ALC269
Storage
1 x SATA 6Gb/s Port (SATA RAID 0/1)
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 3052/3042 M.2 B-Key with SIM Slot (Support 5G only USB interface)
1 x PCIe Gen 4x4 (Board to Wire connector)
Internal I/O
1 x 4-pin box power connector (DC in +12V~24VDC)
1 x SATA Power header
2 x CPU fan headers
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
1 x COM header (RS-232 & RI/5V/12V)
1 x eDP power header
Rear l/O
1 x USB type C (USB 3.2 Gen 2x1 + DP output-share with DP) & PD v3.0 Out -100W (Adapt 24V only), PD v3.0 Out 60W (Adapt 12V ~ 19V)
1 x USB type C (USB 3.2 Gen 2x1, PD 3.0 input-100W)
4 x USB 3.2 Gen 2x1
2 x HDMI
2 x DP
2 x RJ45 LAN Ports
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9672VU2.0
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.4kg
Including:
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Order Information
9MRLP7ASMR-SI (Box Packing)
Optional Kit
Fanless Heatsink P/N: 25ST1-1Z31Z3-A8R
Fansink P/N: 25ST4-3431Z0-A7R
