Key Features
3.5” SubCompact Board with 12th Generation Intel® Core™ i7-1255U Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 4 x USB 3.2 Gen 2x1, 4 x USB 2.0
• 3.5" SBC
• Intel® Core™ i7-1255U Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x 2.5GbE LAN Ports
• 1 x SATA 6Gb/s Port
• Ultra-Fast M.2 with PCIe Gen 4x4 interface
• 2 x HDMI, LVDS ports for multiple display
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 3 x COM Ports (RS-232/422/485)
• 4 x USB 3.2 Gen 2x1
QBi Pro (3.5" SBC)
QBiP-1255A

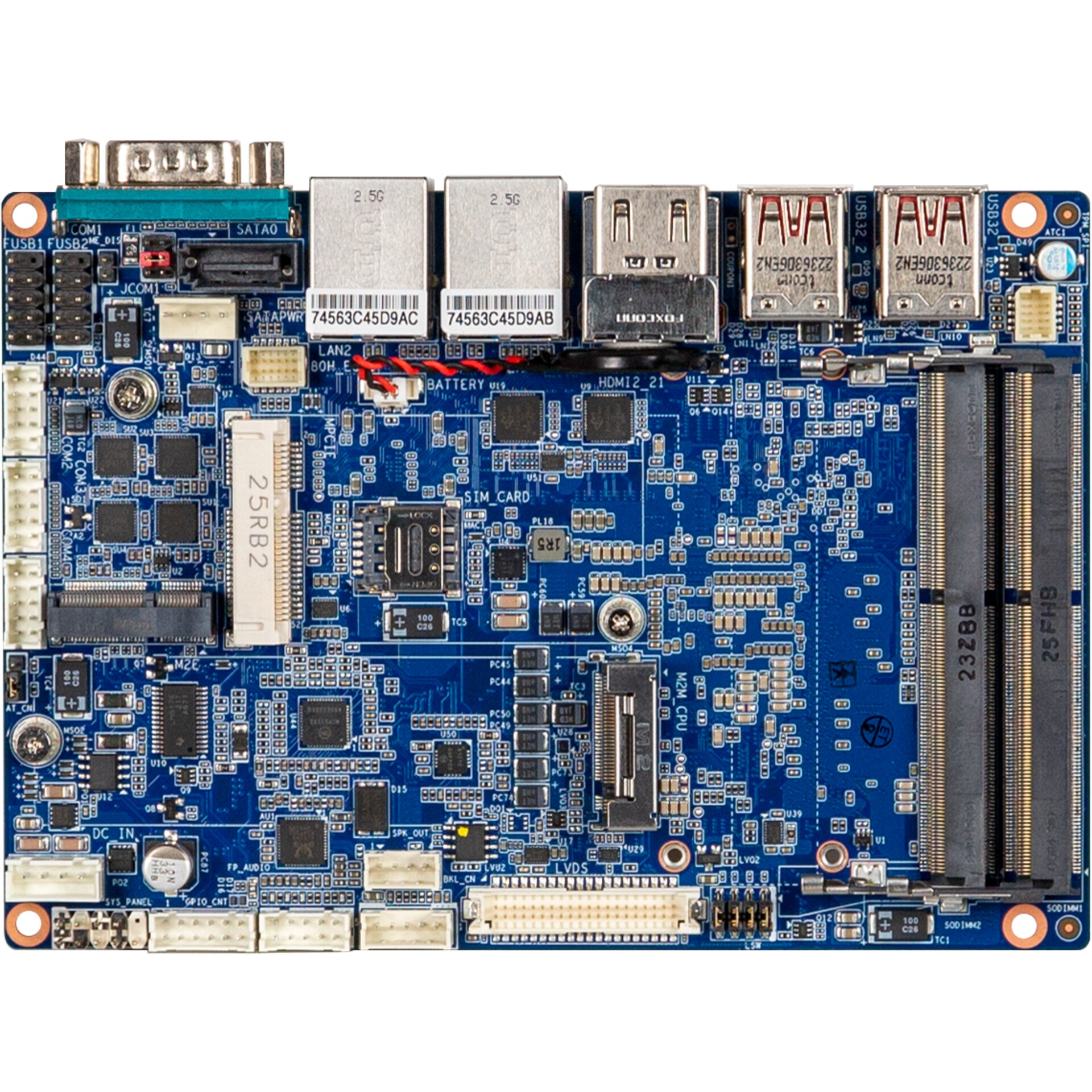

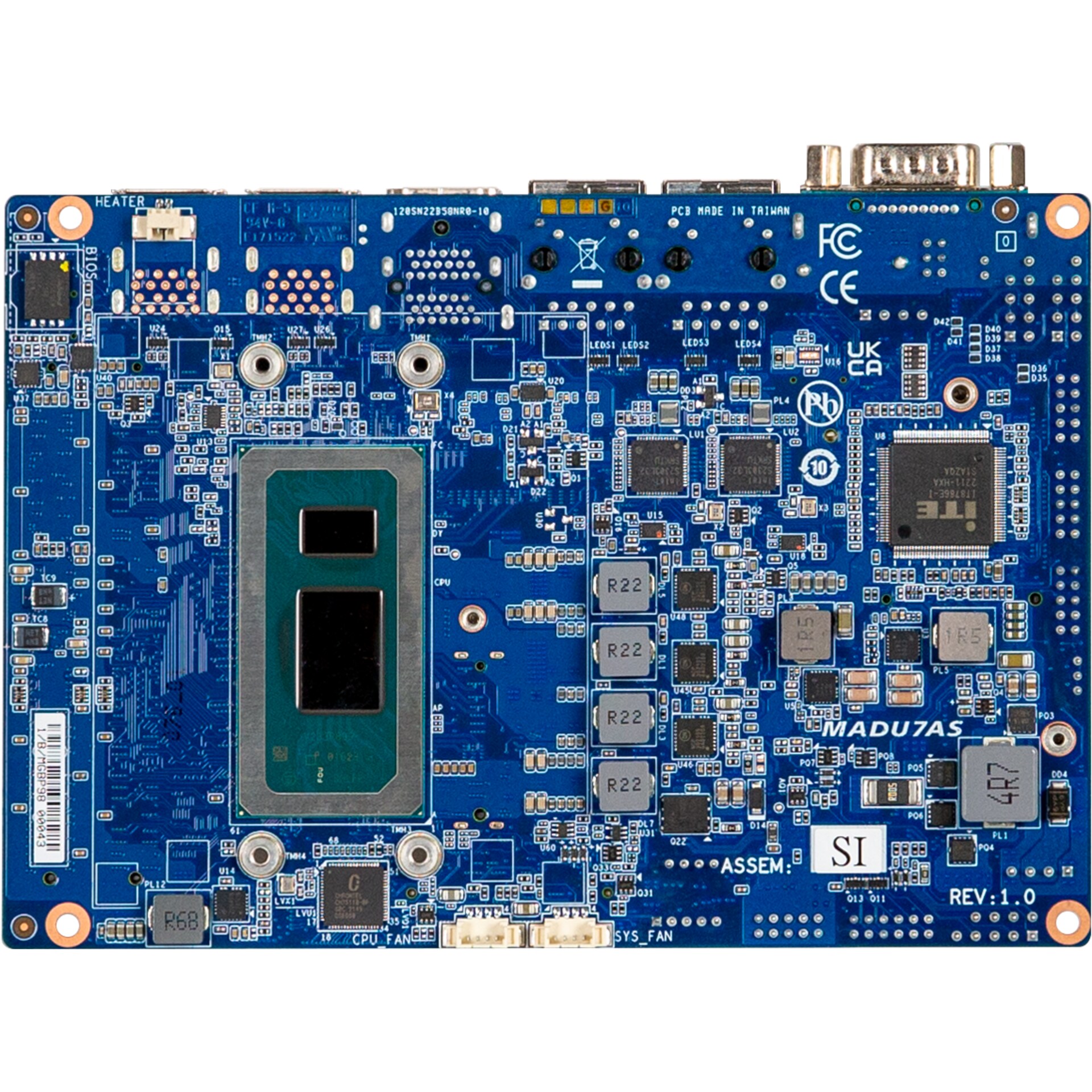

Specification
Form Factor
3.5" SBC
146W x 101.7D(mm)
CPU
Intel® Core™ i7-1255U Processor
10nm Enhanced Superfin (Intel 7), 10 cores, 12 threads, up to 4.7 GHz
TDP 15W
Socket
1 x FCBGA1744
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet
2 x 2.5GbE LAN Ports (Intel® I226V)
Video
Integrated Graphics Processor - Intel® Iris® Xᵉ Graphics:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
(3 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x SATA 6Gb/s Port (SATA RAID 0/1)
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot
Internal I/O
1 x 4-pin box power connector (DC in +9V~36VDC)
1 x SATA Power header
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
3 x COM headers (RS-232/422/485)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header

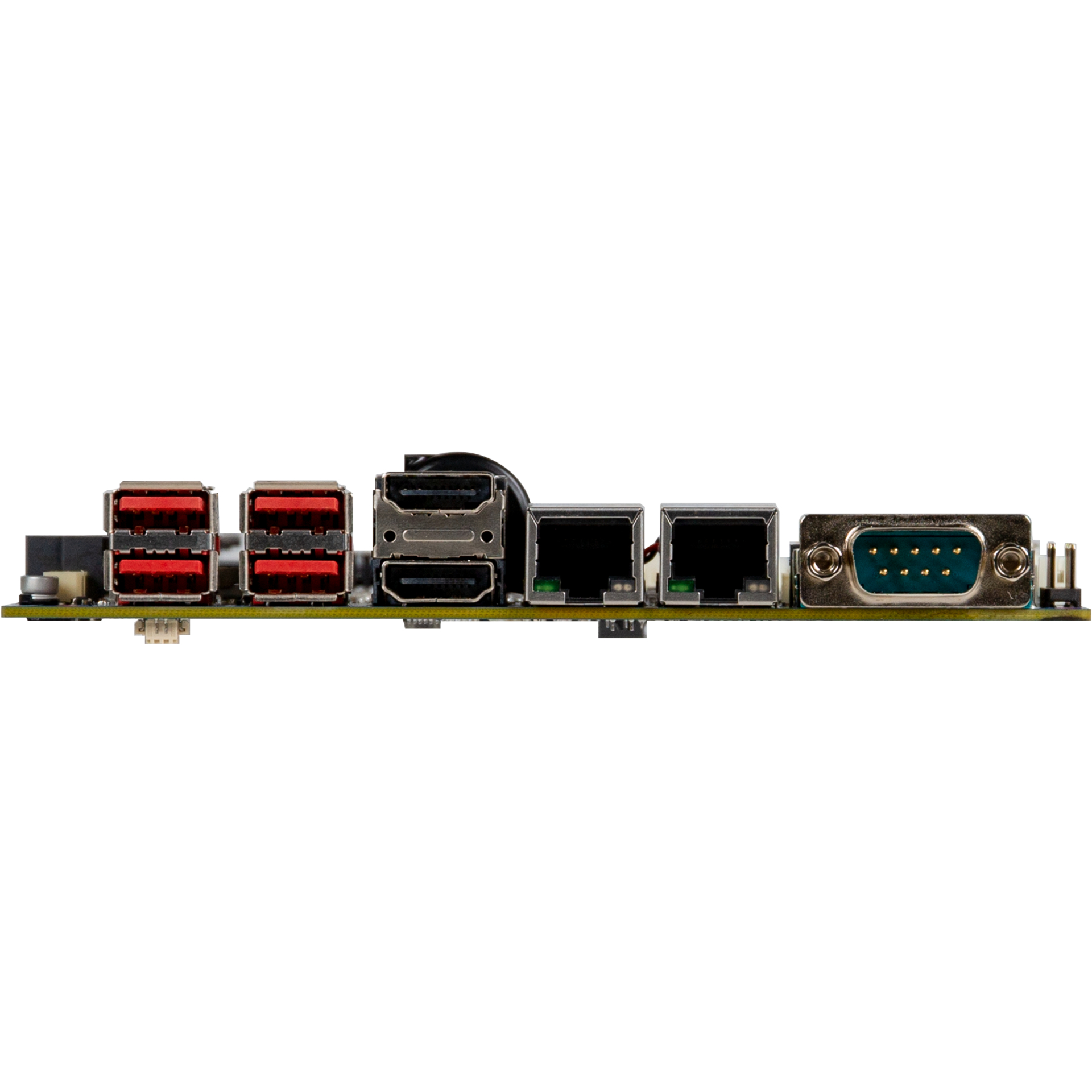

Rear l/O
1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
TPM
1 x TPM header (SPI)
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.5kg
Including:
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Order Information
9MADU7ASMR-SI (Box Packing)
Optional Kit
Fansink P/N: 25ST4-113104-A7R
Fanless sink P/N: 25ST1-113110-A7R
Heat spreader P/N: 25ST5-MADU00-Y0R
TPM 2.0 module P/N: 9CTM010NR-00
TPM Cable P/N: 25CRZ-100600-S9R
