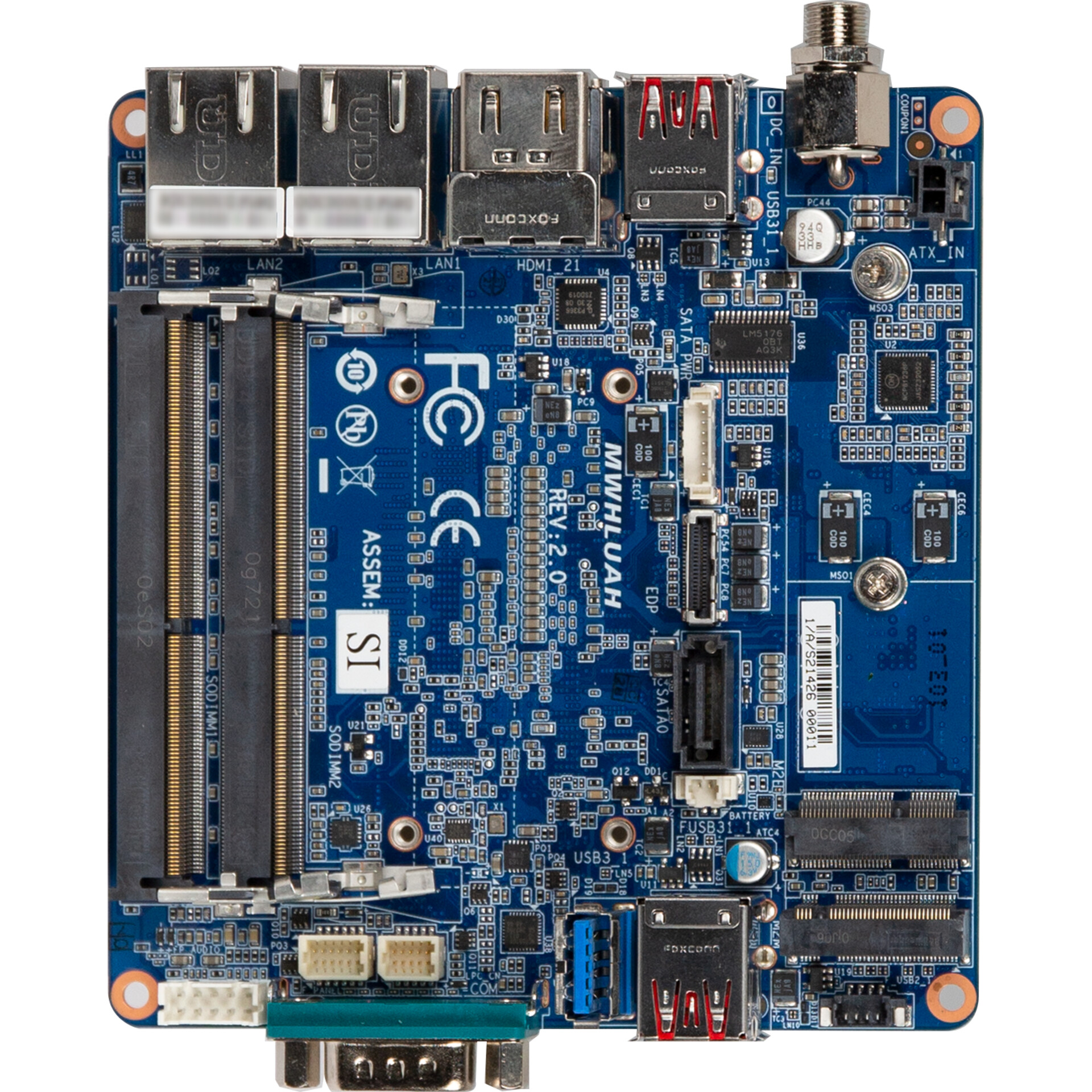

QBi (10x10 M/B)
QBi-8145A
Key Features
Embedded Compact Board with Intel® Core™ i3-8145UE Processor, Dual Channel DDR4 memory, 1 x COM, 1 x SATA 6Gb/s, 6 x USB
• Embedded IPC Motherboard
• Intel® Core™ i3-8145UE Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• 1 x SATA 6Gb/s Port
• Ultra-Fast M.2 with PCIe Gen3 x4 interface
• 2 x HDMI Ports, eDP port for multiple display
• 1 x COM Port (RS-232/422/485)
QBi (10x10 M/B)
QBi-8145A
Specification
Form Factor
Embedded Compact Board
105W x 110D(mm)

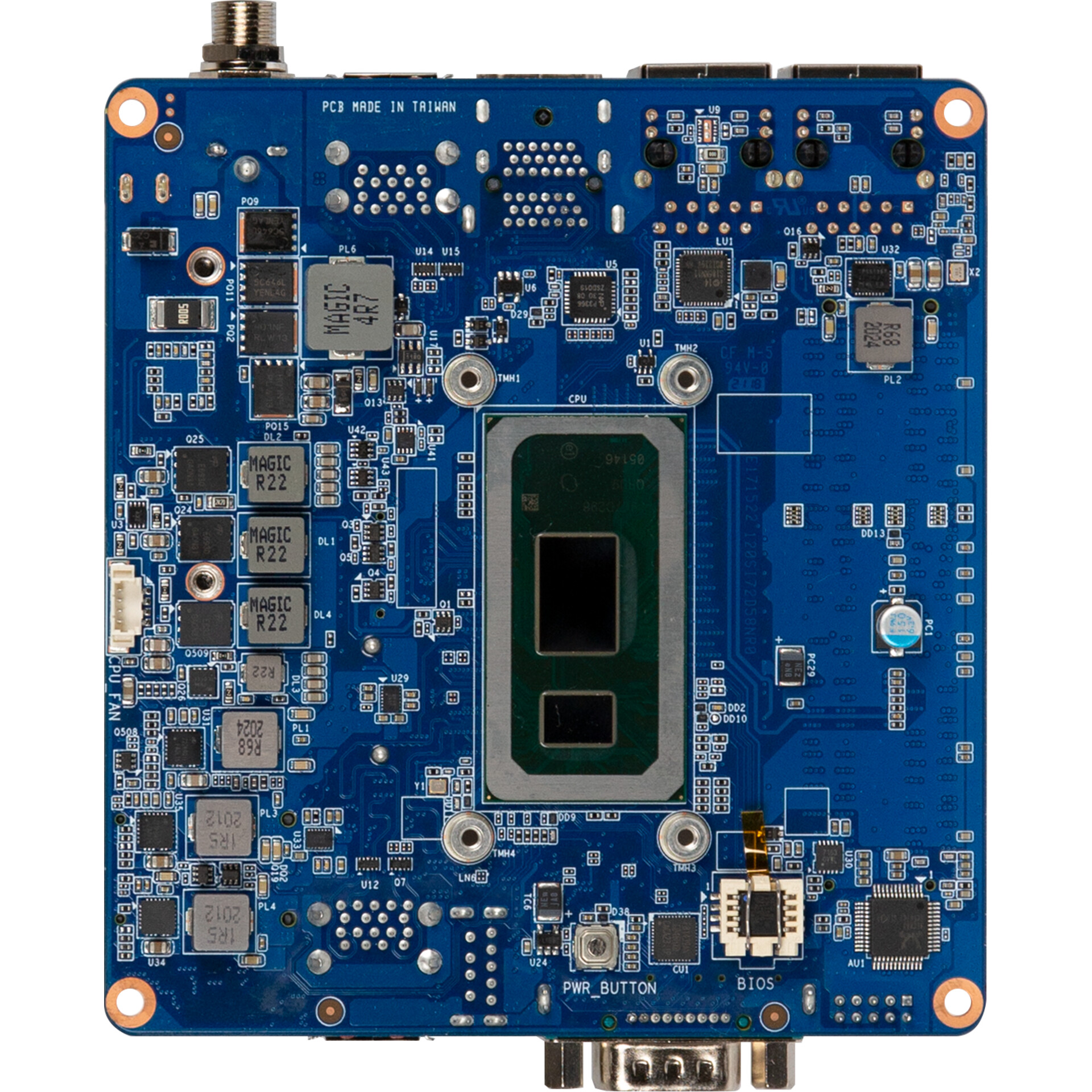

CPU
Intel® Core™ i3-8145UE Processor
14nm, 2 cores, 4 threads, up to 3.9 GHz
TDP 15W
Socket
1 x FCBGA 1528
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 2400 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219V and Realtek® RTL8111HS)
Video
Integrated Graphics Processor - Intel® UHD Graphics 620:
2 x HDMI 1.4 port, supporting a maximum resolution of 4096x2304 @24Hz
1 x eDP port, supporting a maximum resolution of 4096x2304 @60Hz
(3 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x SATA 6Gb/s Port (RAID 0/1)
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
Internal I/O
1 x 2-pin power connector
1 x SATA Power header/optional for eDP Power
1 x CPU fan header
1 x Front panel header
1 x Front panel audio header
1 x USB 2.0 header
1 x Vertical USB 3.2 Gen 1

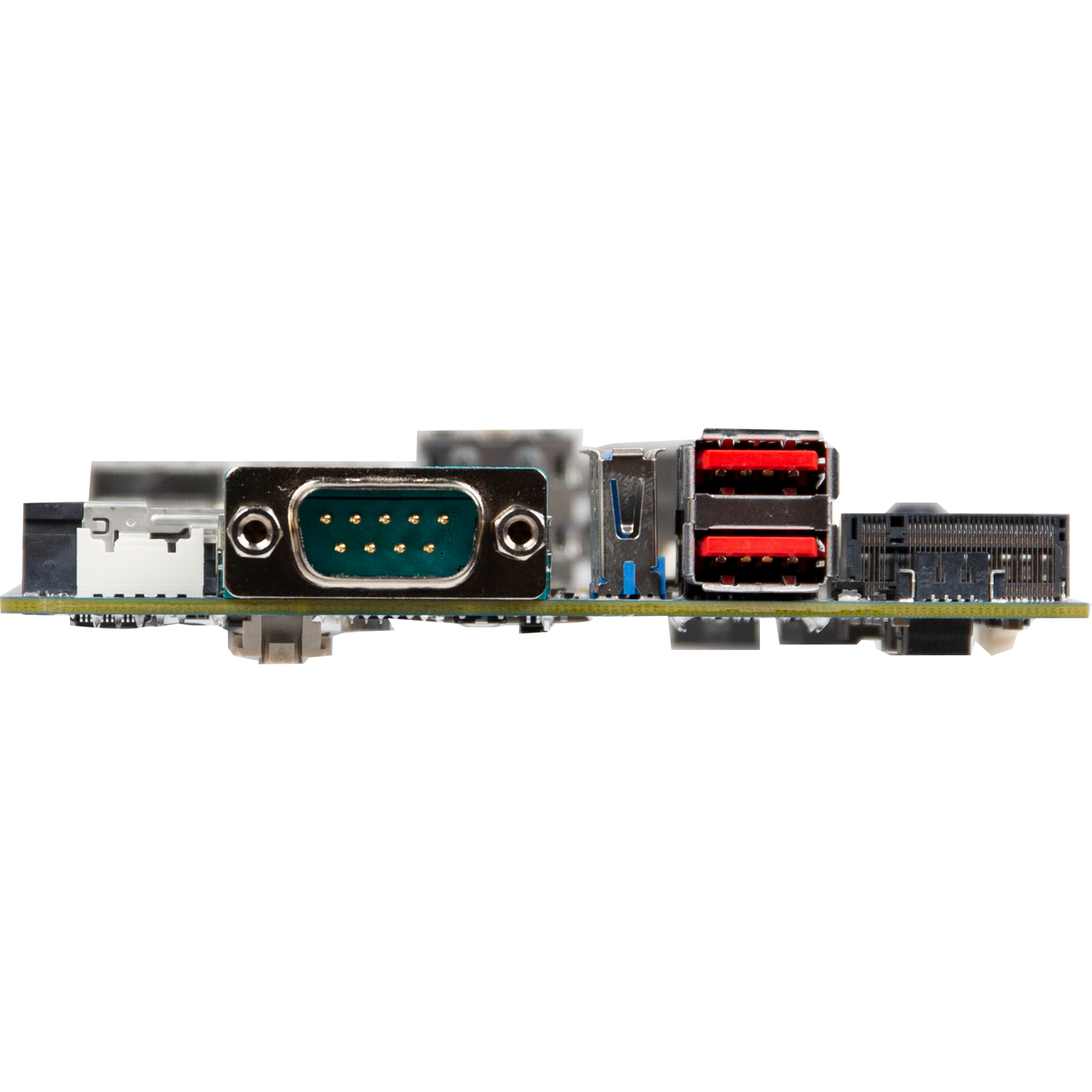

Front I/O
2 x USB 3.2 Gen 2x1
1 x Power button
1 x COM Port (RS-232/422/485)

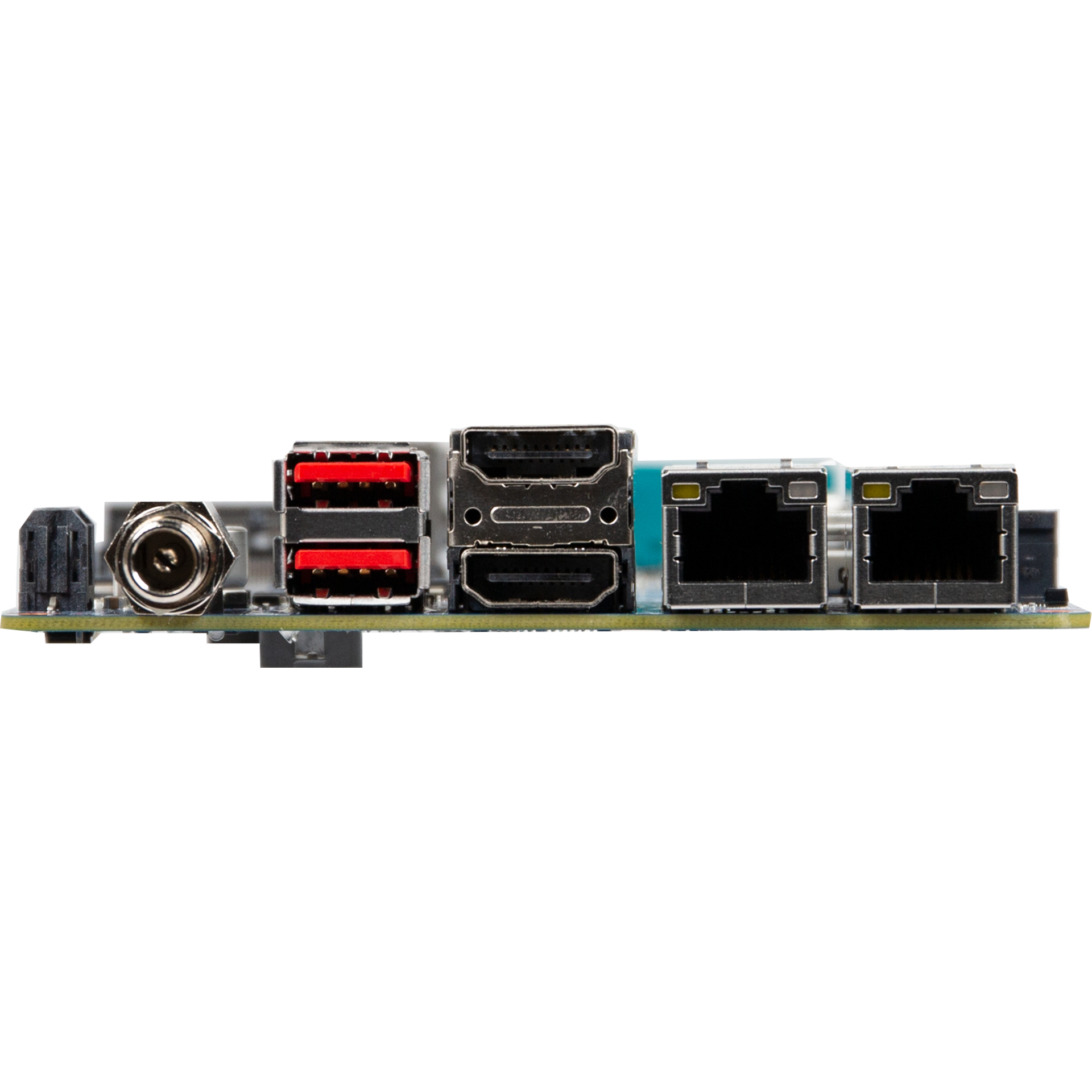

Rear l/O
2 x HDMI
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
1 x Screw type DC Jack (+9V~36VDC)
TPM
1 x TPM header (LPC)
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.4kg
Including:
SATA power Cable 150mm x 1 (P/N: 25CRI-150621-K1R)
Order Information
9MWHLUCHMR-SI (Box Packing)
Optional Kit
Fanless Heatsink P/N: 25ST1-123118-AFR
Fansink P/N: 12SF2-01A073-00R
Heat spreader P/N: 25ST5-8265A1-A8R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
