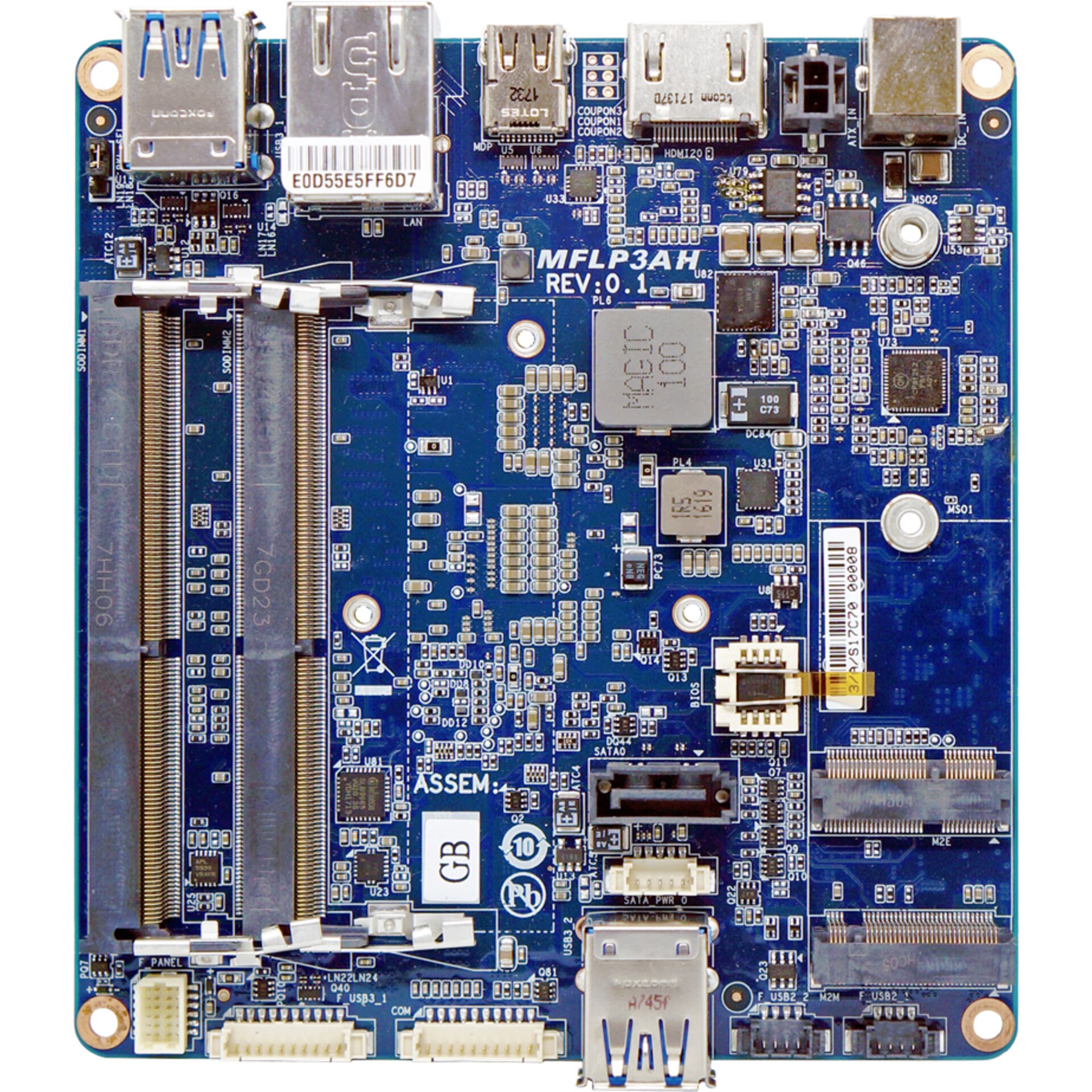

QBi-7100B
- EOL
Key Features
Embedded Compact Board with Intel® Core™ i3-7100U Processor, Dual Channel DDR4 memory, 1 x COM, 1 x SATA 6Gb/s, 7 x USB
• Embedded IPC Motherboard
• Intel® Core™ i3-7100U Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• Intel® Optane™ Memory Ready
• 1 x GbE LAN Port
• 1 x SATA 6Gb/s Port
• Ultra-Fast M.2 with PCIe Gen3 x4 interface
• HDMI, Mini Display port, eDP ports for multiple display
• 1 x COM Port (RS-232)
QBi (10x10 M/B)
QBi-7100B
Specification
Form Factor
Embedded Compact Board
105W x 110D(mm)
CPU
Intel® Core™ i3-7100U Processor
14nm, 2 cores, 4 threads, 2.40 GHz
TDP 15W
Socket
1 x FCBGA 1356
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2133 MHz memory modules
Ethernet
1 x GbE LAN Port (Intel® I219V)
Video
Integrated Graphics Processor - Intel® HD Graphics 620:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x Mini DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz
(3 independent display outputs)
Audio
Intel® Integrated Audio
Storage
1 x SATA 6Gb/s Port (RAID 0/1)
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
Internal I/O
1 x 2-pin power connector
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
2 x USB 2.0 headers
1 x USB 3.2 Gen 1 header
1 x COM header (RS-232)
Front I/O
2 x USB 3.2 Gen 1
1 x Power button

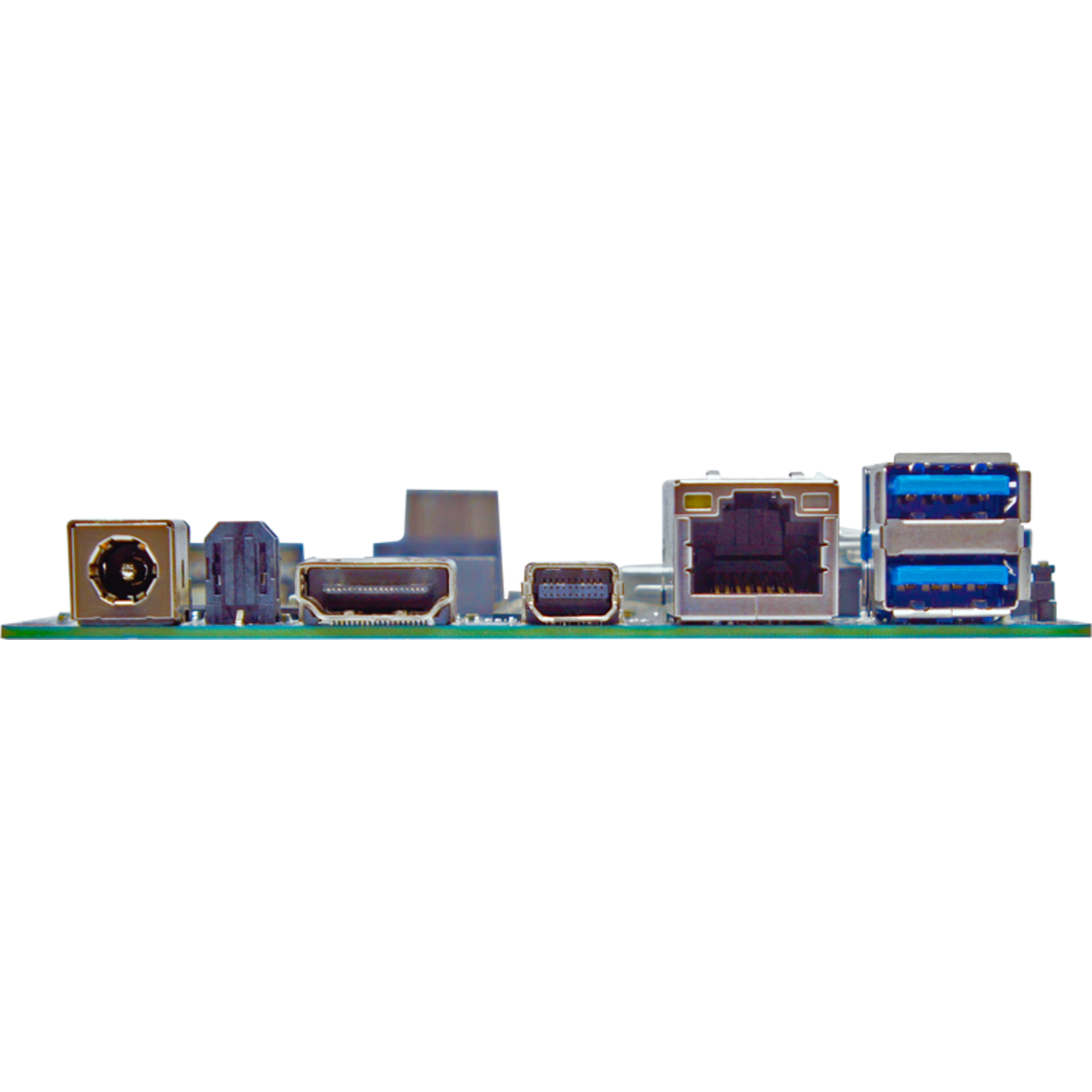

Rear l/O
1 x HDMI
1 x Mini Display Port
1 x RJ45 LAN Port
2 x USB 3.2 Gen 1
1 x DC Jack (+12~24VDC)
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 488 x 361 x 178 (mm)
Packing Capacity: 20pcs
Including:
SATA power Cable 150mm x 1 (P/N: 25CRI-150621-K1R)
Order Information
9MFLP3AHNR-SI (Bulk Packing)
Optional Kit
Fansink P/N: 25ST4-343202-C1R
Heat spreader P/N: 25ST5-CKAA01-A8R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
