Key Features
Embedded Compact Board with Intel® N4200 Processor, DDR3L memory, 1 x COM, 1 x SATA 6Gb/s, 7 x USB
• Embedded IPC Motherboard
• Intel® Pentium® N4200 Processor
• Single Channel DDR3L, 1 x SO-DIMM
• 1 x GbE LAN Port
• 1 x SATA 6Gb/s Port
• HDMI, D-sub, eDP ports for multiple display
• 1 x COM Port (RS-232)
QBi (10x10 M/B)
QBi-4200B

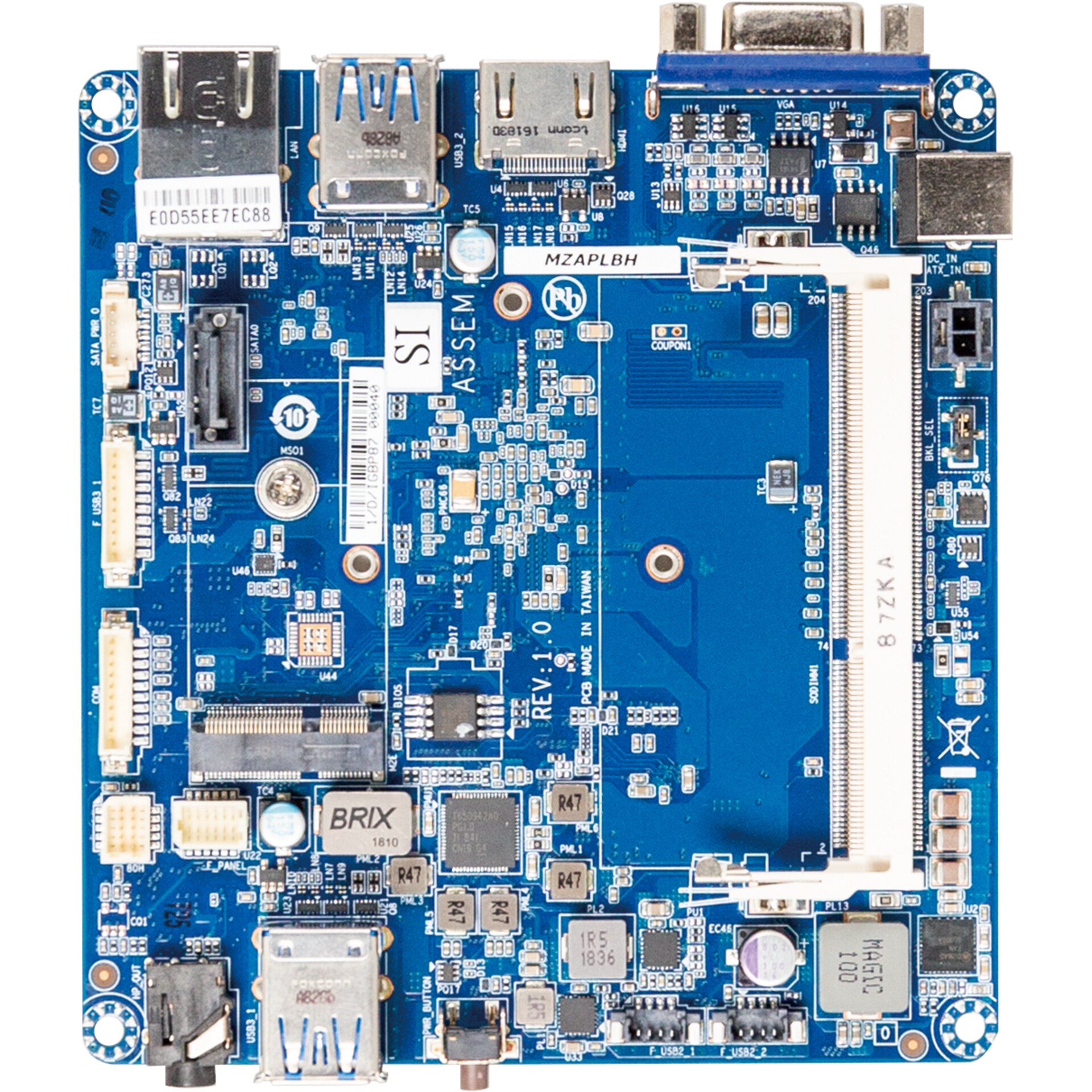

Specification
Form Factor
Embedded Compact board
105W x 110D(mm)
CPU
Intel® Pentium® N4200 Processor
14nm, 4 cores, 4 threads, up to 2.50 GHz
TDP 6W
2 MB L2 cache
Socket
1 x FCBGA 1296
Memory
1 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB
Support Single Channel DDR3L 1866 MHz memory module
Ethernet
1 x GbE LAN Port (Realtek® RTL8111HS)
Video
Integrated Graphics Processor - Intel® HD Graphics 505:
1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz
1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz
1 x eDP port, supporting a maximum resolution of 1920x1080 @60Hz
(3 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x SATA 6Gb/s Port
Expansion Slots
1 x 2230 M.2 E-Key
Internal I/O
1 x 2-pin power connector
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
2 x USB 2.0 headers
1 x USB 3.2 Gen 1 header
1 x COM header (RS-232)

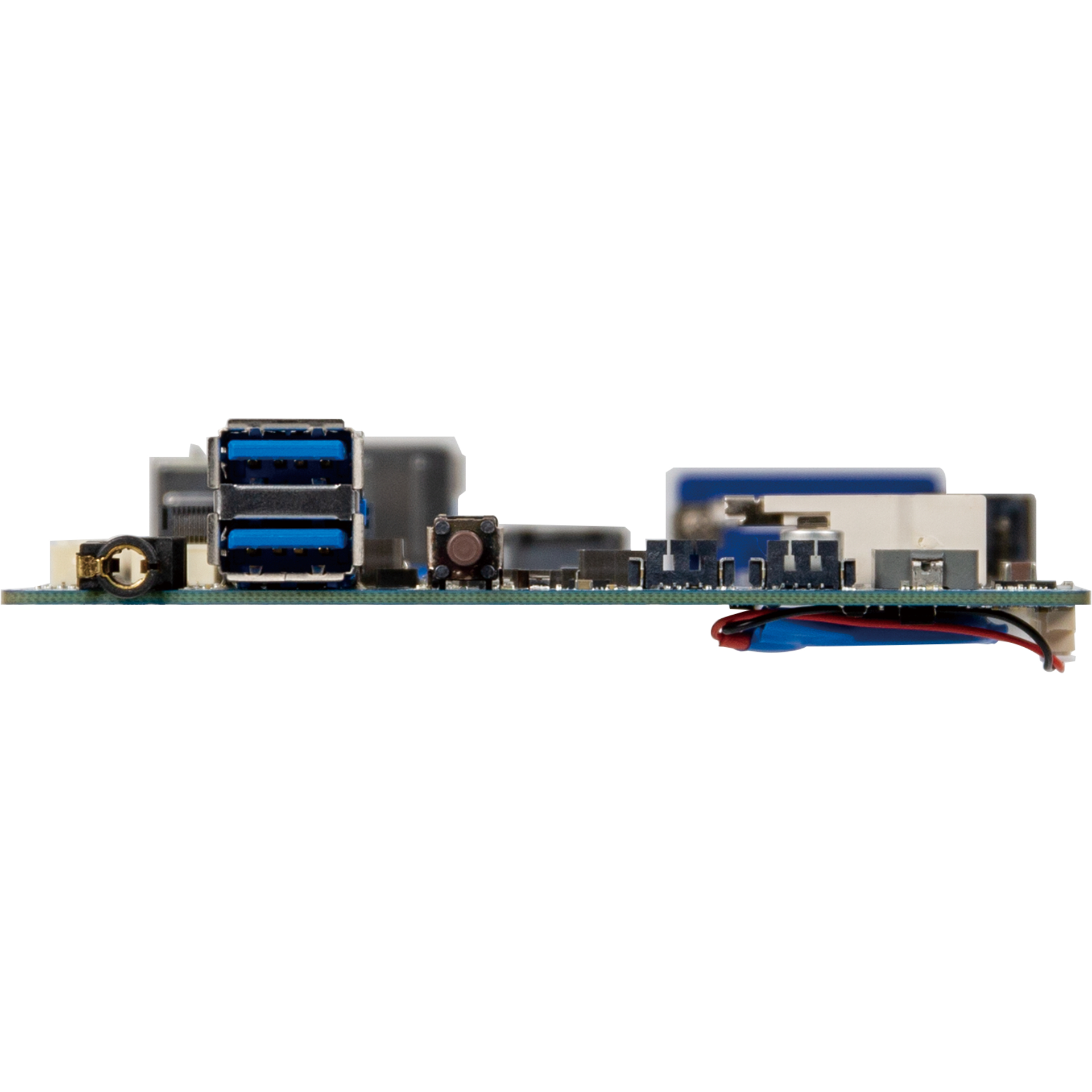

Front I/O
2 x USB 3.2 Gen 1
1 x Power button
1 x Audio Combo Jack (Headphone & Microphone)

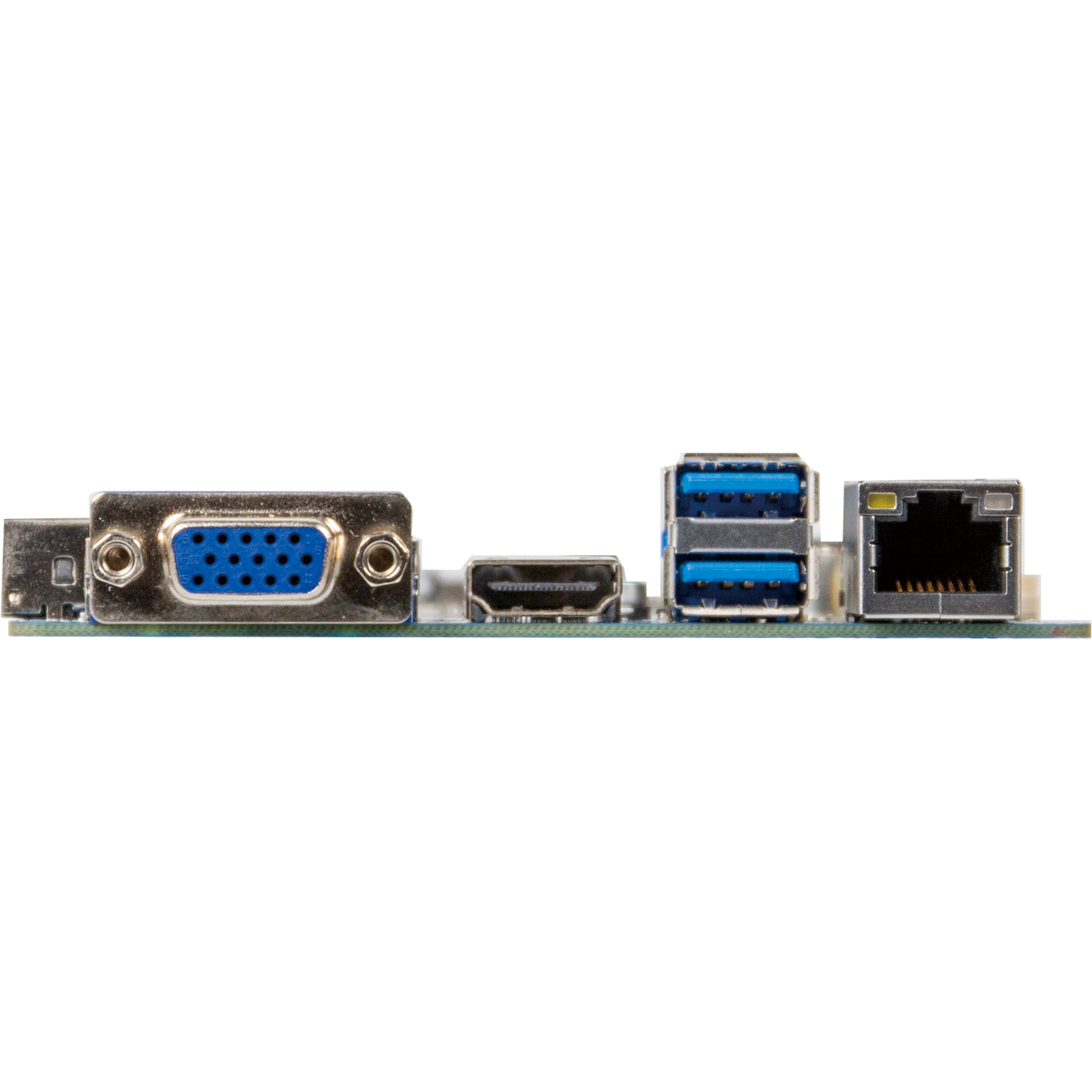

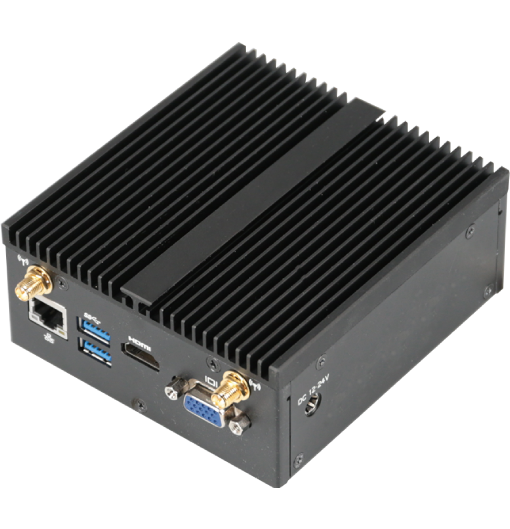

Rear l/O
1 x HDMI
1 x VGA
1 x RJ45 LAN Port
2 x USB 3.2 Gen 1
Side I/O
1 x DC Jack (+12V~24VDC)
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.45kg
Including:
SATA Power cable 150mm x 1 (P/N: 25CRI-150621-K1R)
Order Information
9MZAPLBHMR-SI (Box Packing)
Optional Kit
Fanless Heatsink P/N: 12SP2-090018-00R
Heat spreader P/N: 25ST5-CGAA00-A8R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
