QBi (10x10 M/B)
QBi-4200A
- EOL
Key Features

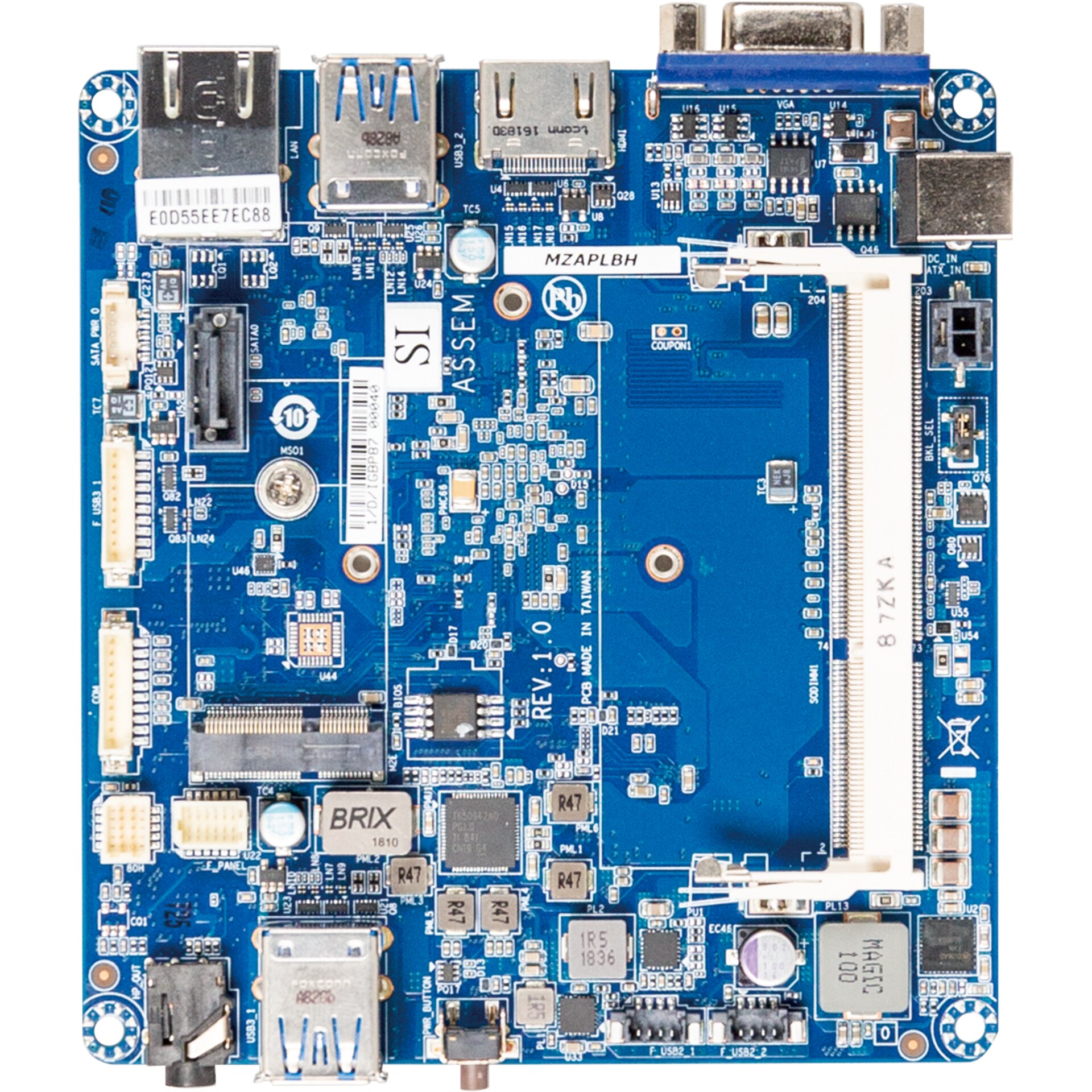

Embedded Compact Board with Intel® Pentium® Processor N4200, DDR3L memory, 1 x COM, 1 x SATA 6Gb/s, 7 x USB, 32GB eMMC
• Embedded IPC Motherboard
• Intel® Pentium® Processor N4200
• Single Channel DDR3L, 1 x SO-DIMM
• 1 x GbE LAN port
• 1 x SATA 6Gb/s ports
• HDMI, VGA, eDP ports for multiple display
• 1 x RS232 COM port
QBi (10x10 M/B)
QBi-4200A
Specification
Form Factor
Embedded Compact Board
105W x 110D(mm)
CPU
Intel® Pentium® N4200 Processor
14nm, 4 cores, 4 threads, up to 2.50 GHz
TDP 6W
Socket
1 x FCBGA 1296
Memory
1 x DDR3L SO-DIMM sockets, Max. Capacity 8GB
Support Single Channel DDR3L 1866 MHz memory module
Ethernet
1 x GbE LAN Port (Realtek® RTL8111HS)
Video
Integrated Graphics Processor -Intel® HD Graphics 505:
1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz
1 x VGA port, supporting a maximum resolution 2560x1600 @60Hz
1 x eDP port, supporting a maximum resolution of 1920x1080 @60Hz
(3 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x SATA 6Gb/s Port
1 x eMMC 32GB
Expansion Slots
1 x 2230 M.2 E-Key
Internal I/O
1 x 2-pin power connector
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
2 x USB 2.0 headers
1 x USB 3.0 header
1 x COM header (RS-232)

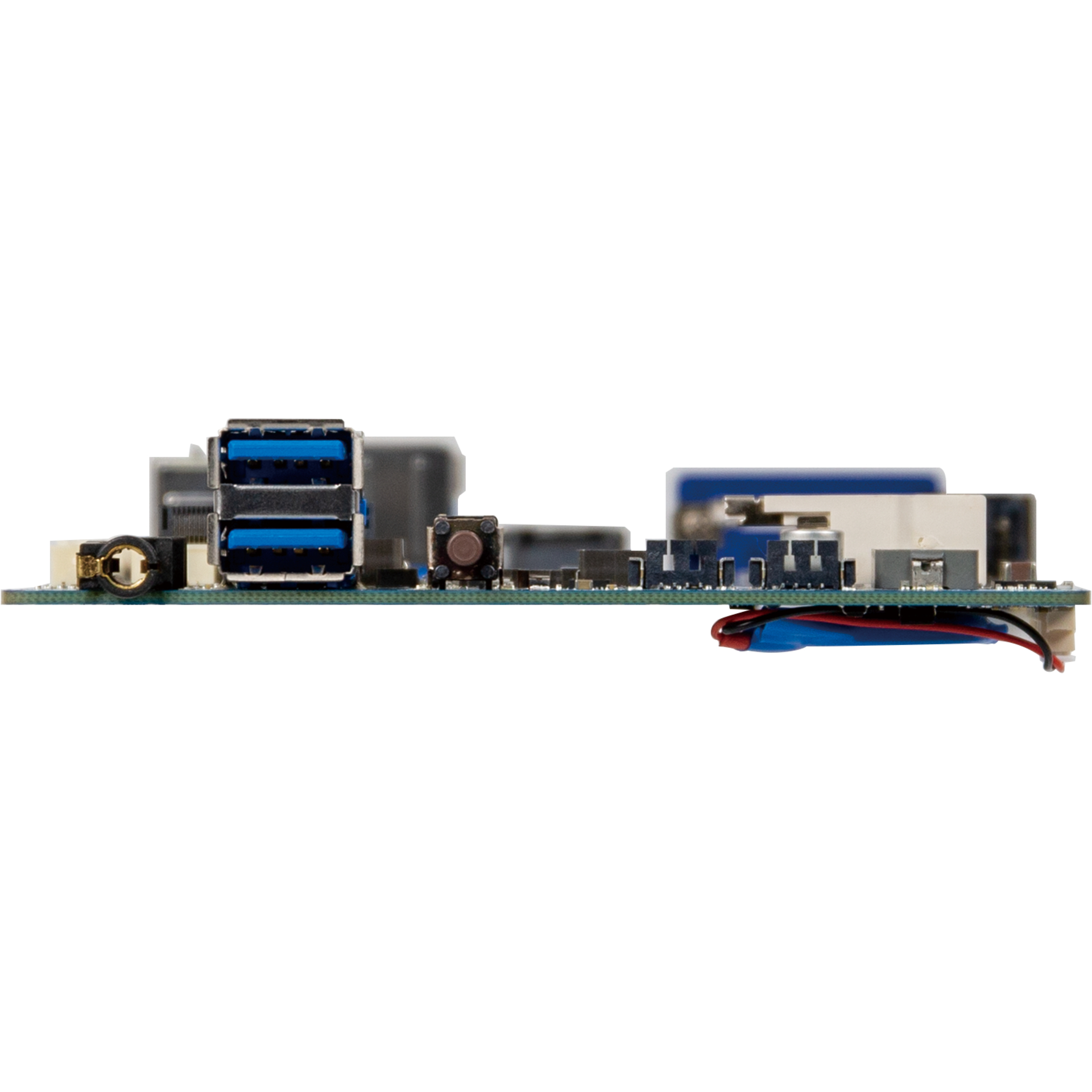

Front I/O
2 x USB 3.0
1 x Power button
1 x Audio Combo Jack (Headphone & Microphone)

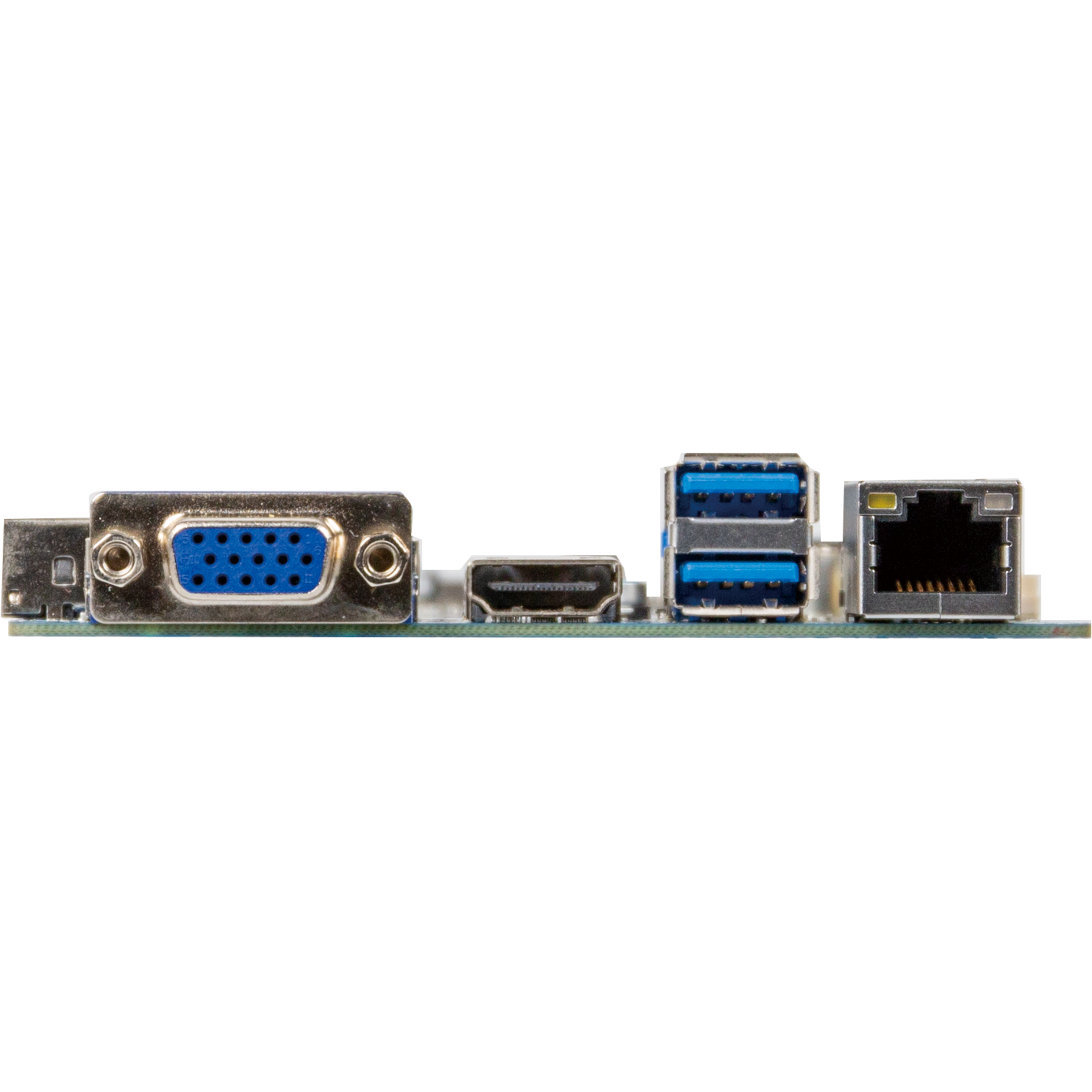

Rear l/O
1 x HDMI
1 x VGA
1 x RJ45 LAN Port
2 x USB 3.0
Side I/O
1 x DC Jack (+12V~24VDC)
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Capacity: 20pcs
Carton size: 488 x 361 x 178(mm)
Content:
SATA Power cable 150mm x 1 (P/N: 25CRI-150621-K1R)
Order Information
9MZAPLAHNR-SI (Bulk Packing)
Optional Kit
Fanless Heatsink P/N: 12SP2-090018-00R
Heat spreader P/N: 25ST5-CGAA00-A8R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
Select Operating System：
-
Intel® Serial IO
File Name Version File Size Publish Date Download QBi-4200A/4200B_Intel® Serial IO Driver30.100.1750.1 1.7 MB 2024-04-01 Download -
VGA
File Name Version File Size Publish Date Download QBi-4200A/4200B_Graphic Driver26.20.100.6951 333.1 MB 2024-04-01 Download -
Intel® Trusted Execution Engine
File Name Version File Size Publish Date Download QBi-4200A/4200B_Intel® Trusted Execution Engine Interface3.0.0.1115 44.3 MB 2024-04-01 Download -
Audio
File Name Version File Size Publish Date Download QBi-4200A/4200B_Realtek Audio Driver6.0.1.8569 282.7 MB 2024-04-01 Download -
LAN
File Name Version File Size Publish Date Download QBi-4200A/4200B_1G LAN Driver10.35.510.2019 10.6 MB 2024-04-01 Download -
Chipset
File Name Version File Size Publish Date Download QBi-4200A/4200B_Chipset Driver10.1.17.1 6.4 MB 2024-04-01 Download
