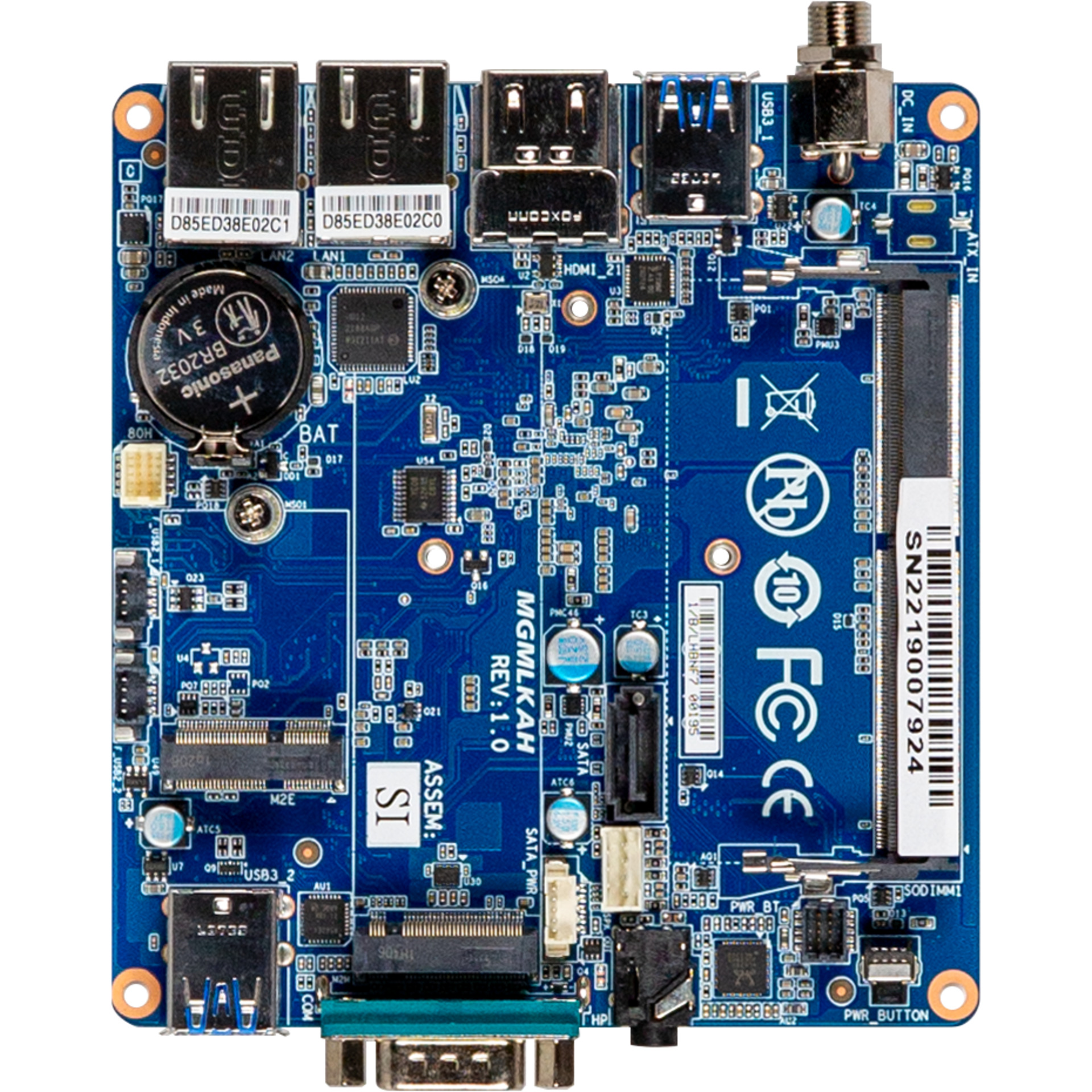

QBi-4125A
Key Features
Embedded Compact Board with Intel® Celeron® J4125 Processor, Single Channel DDR4 memory, 1 x COM, 1 x SATA 6Gb/s, 6 x USB
• Embedded IPC Motherboard
• Intel® Celeron® J4125 Processor
• Single Channel DDR4, 1 x SO-DIMM
• 2 x GbE LAN Ports
• 1 x SATA 6Gb/s Port
• 2 x HDMI port, eDP ports for multiple display
• 1 x COM Port (RS-232)
QBi (10x10 M/B)
QBi-4125A
Specification
Form Factor
Embedded Compact Board
105W x 110D(mm)

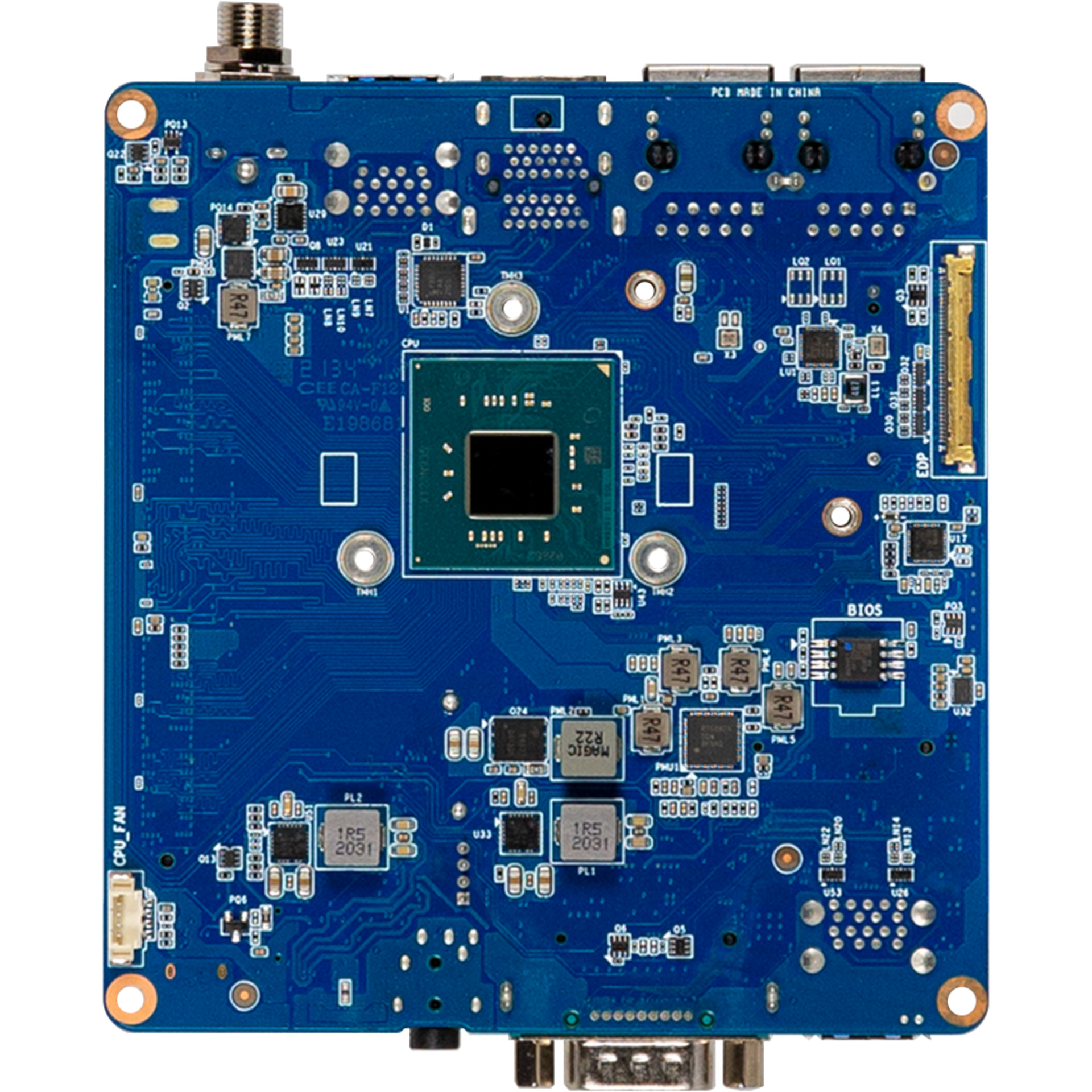

CPU
Intel® Celeron® J4125 Processor
14nm, 4 cores, 4 threads, up to 2.7 GHz
TDP 10W
Socket
1 x FCBGA 1090
Memory
1 x DDR4 SO-DIMM sockets, Max. Capacity 8 GB
Support Single Channel DDR4 2400 MHz memory module
Ethernet
2 x GbE LAN Ports (Intel® I211AT and Realtek® RTL8111HS)
Video
Integrated Graphics Processor - Intel® UHD Graphics 600:
2 x HDMI 1.4 ports, supporting a maximum resolution of 4096x2160 @30Hz
1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz
(3 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x SATA 6Gb/s Port (RAID 0/1)
Expansion Slots
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key
Internal I/O
1 x SATA Power header
1 x CPU fan header
1 x Power button header
2 x USB 2.0 headers
1 x Speaker out header

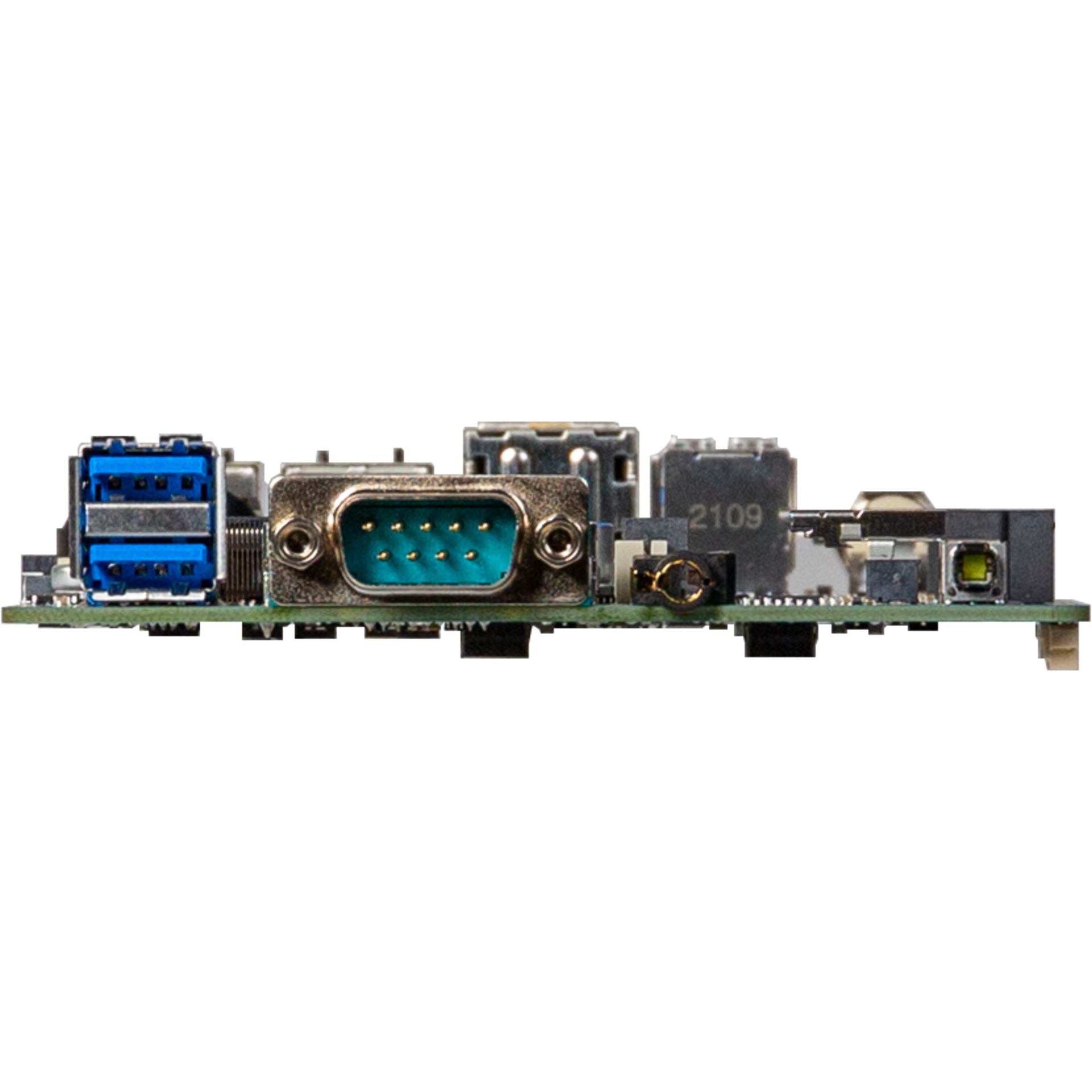

Front I/O
2 x USB 3.2 Gen 1
1 x COM Port (RS-232)
1 x Headphone Jack
1 x Power button

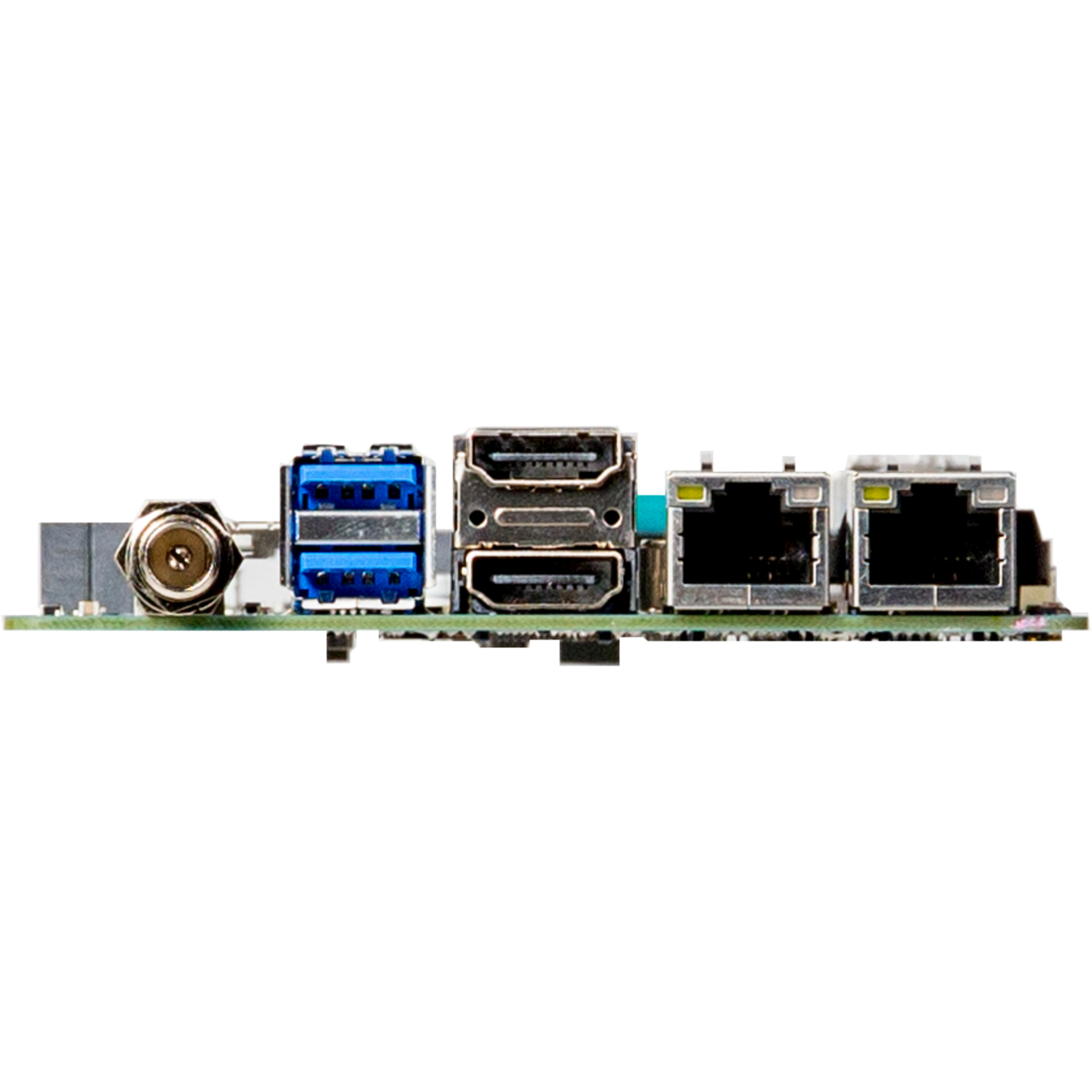

Rear l/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
2 x HDMI
1 x Screw type DC Jack (+12V~19VDC)
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.35kg
Including:
SATA power Cable 150mm x 1 (P/N: 25CRI-150621-K1R)
Order Information
9MGMLKAHMR-SI (Box Packing)
Optional Kit
Fanless Heatsink P/N: 25ST1-123001-A7R
Heat spreader P/N: 25ST5-CGAA00-A8R
