OPS (Open Pluggable Specification)
OPS-H610B
- New
Key Features
Open Pluggable Specification (OPS) with 13th/12th Generation Intel® Core™ Processor, DDR4 memory, M.2 slot, JAE connector
•System Size : 180W x 120D x 30H (mm)
•Supports 13th/12th Generation Intel® Core™ Processors
•Intel® H610 Express Chipset
•Single channel memory DDR4, 1 x SO-DIMM
•1 x Display port
•1 x GbE LAN port
OPS (Open Pluggable Specification)
OPS-H610B
Specification
Dimension
180W x 120D x 30H (mm)
CPU
Support for 13th/12th Generation
Intel® Core™ i7/i5/i3, Pentium® & Celeron® processors in the LGA1700 package
TDP under 35W
※ Please refer to CPU support list for more information.
Chipset
Intel® H610 Chipset
Memory
1 x DDR4 SO-DIMM socket, Max. Capacity 16 GB
Support Single channel DDR4 3200 MHz memory module
Ethernet
1 x GbE LAN Port (Realtek® RTL8111H)
Graphics
Integrated Graphics Processor - depends on CPU:
1 x DP port, supporting a maximum resolution of 3840x2160 @60Hz
(1 independent display output)
Audio
Realtek® ALC897
Expansion Slots
1 x 2280 M.2 M Key (PCIe Gen 3x4, SATA 6Gb/s)
1 x 2230 M.2 E Key

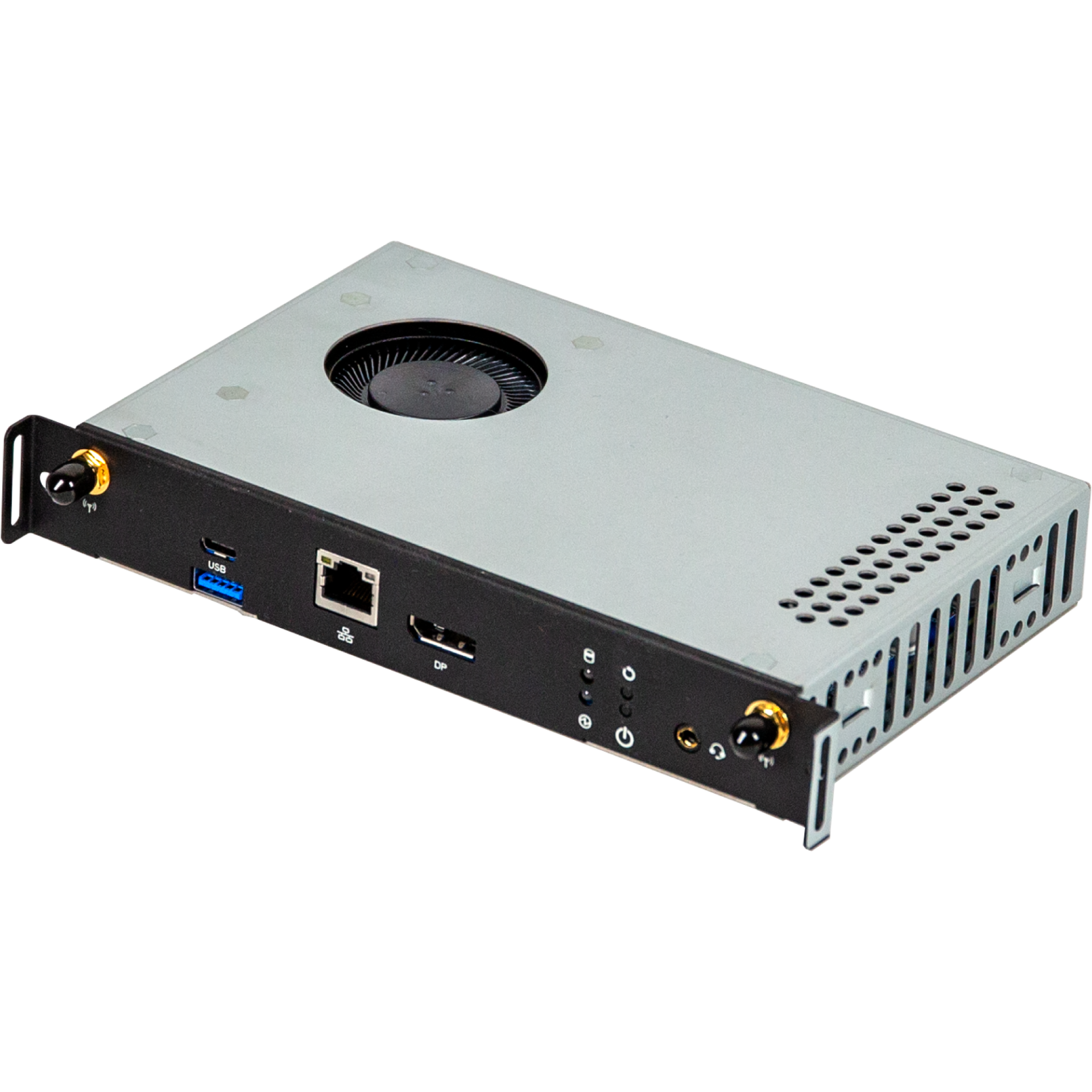

Front I/O
1 x Display Port
1 x RJ45 LAN Port
1 x USB 3.2 Type A Gen 1
1 x USB 3.2 Type C Gen 1
1 x Combo Audio Jack (Headphone & Headset)
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button
1 x PWR LED
1 x HDD LED

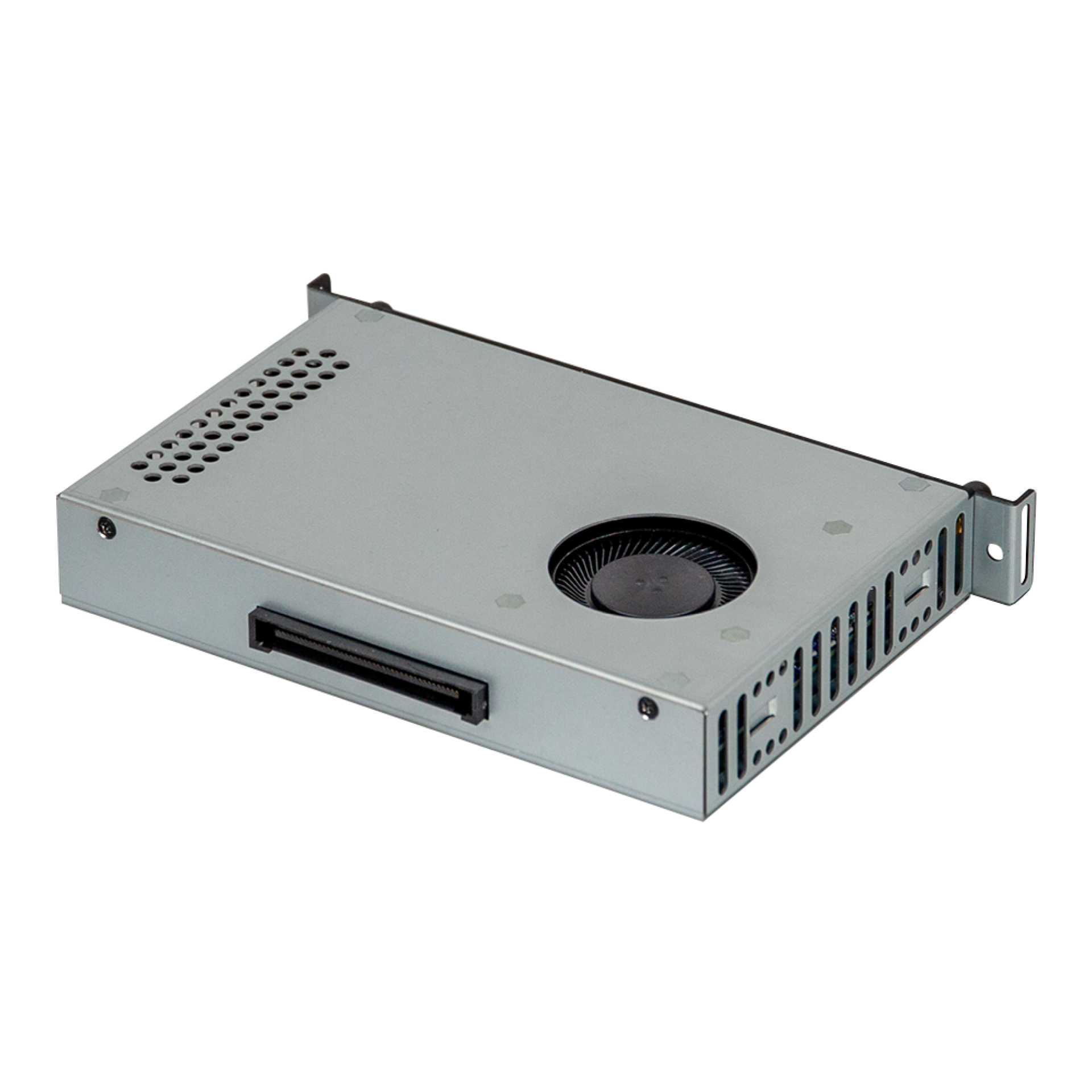

Rear l/O
1 x80-pin JAE Tx25 OPS connector
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 45°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Packing Content
Carton size: 505 x 333 x 231 (mm)
Bulk Packing Capacity: 10pcs
Including:
External Antenna x 20 (P/N: 25CA0-112001-A5S)
※ The ratio of OPS system to antennas is 1:2
Order Information
6BOPH610BNR-SI (Bulk Packing)
